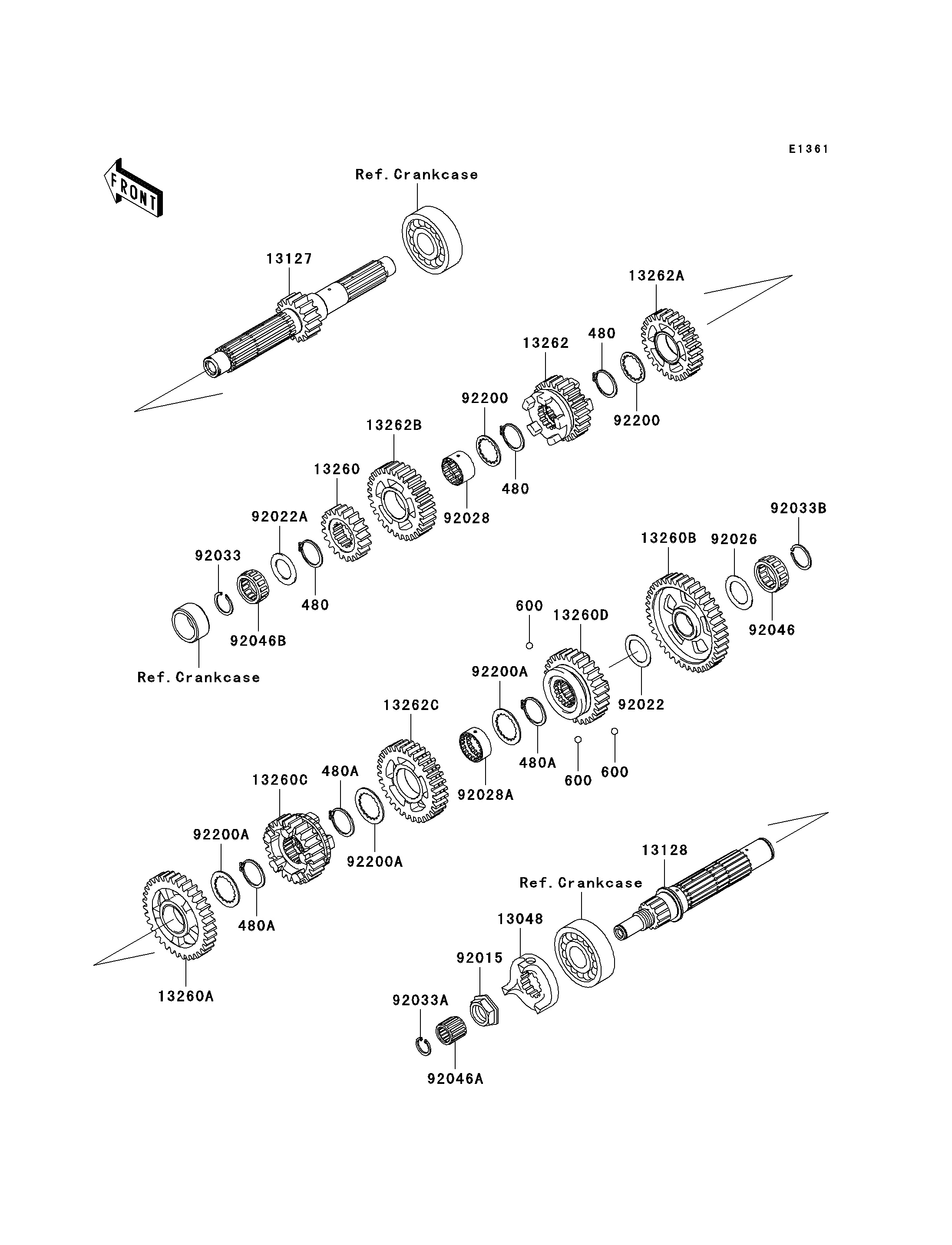

2006 Vulcan 1600 Mean Streak - Transmission
480
480
480
480A
480A
480A
600
600
600
13048
13127
13128
13260
13260A
13260B
13260C
13260D
13262
13262A
13262B
13262C
92015
92022
92022A
92026
92028
92028A
92033
92033A
92033B
92046
92046A
92046B
92200
92200
92200A
92200A
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-C,28MM | 480 | 480J2800 | 3 | ||
CIRCLIP | 480A | 480J2900 | 3 | ||
BALL-STEEL,5/32" | 600 | 600A0500 | 3 | ||
CAM-DAMPER | 13048 | 13048-1086 | 1 | ||
SHAFT-TRANSMISSION INPUT | 13127 | 13127-1288 | 1 | ||
SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-0002 | 1 | ||
GEAR,INPUT 2ND,20T | 13260 | 13260-1905 | 1 | ||
GEAR,OUTPUT 2ND,35T | 13260A | 13260-1909 | 1 | ||
GEAR,OUTPUT LOW,40T | 13260B | 13260-1910 | 1 | ||
GEAR,OUTPUT TOP,26T | 13260C | 13260-1912 | 1 | ||
GEAR,OUTPUT 4TH,29T | 13260D | 13260-1913 | 1 | ||
GEAR,INPUT 3RD,24T | 13262 | 13262-0053 | 1 | ||
GEAR,INPUT 4TH,27T | 13262A | 13262-0054 | 1 | ||
GEAR,INPUT 5TH,30T | 13262B | 13262-0055 | 1 | ||
GEAR,OUTPUT 3RD,32T | 13262C | 13262-0056 | 1 | ||
NUT,20MM | 92015 | 92015-1610 | 1 | ||
WASHER,25.5X36X1.0 | 92022 | 92022-1855 | 1 | ||
WASHER,22.3X35X1.6 | 92022A | 92022-212 | 1 | ||
SPACER,25.5X38X1.0 | 92026 | 92026-1536 | 1 | ||
BUSHING,INPUT TOP GEAR | 92028 | 92028-1990 | 1 | ||
BUSHING,OUTPUT 3RD GEAR | 92028A | 92028-1991 | 1 | ||
RING-SNAP,20X25.5X1.2 | 92033 | 92033-025 | 1 | ||
RING-SNAP | 92033A | 92033-032 | 1 | ||
RING-SNAP,25MM | 92033B | 92033-1172 | 1 | ||
BEARING-NEEDLE,TK253515 | 92046 | 92046-1259 | 1 | ||
BEARING-NEEDLE,FWF-162222 | 92046A | 92046-1260 | 1 | ||
BEARING-NEEDLE,BN502250 | 92046B | 92046-1293 | 1 | ||
WASHER,28.5X34.0X1.5 | 92200 | 92200-1240 | 2 | ||
WASHER,30.3X40X1.5 | 92200A | 92200-1381 | 3 |
