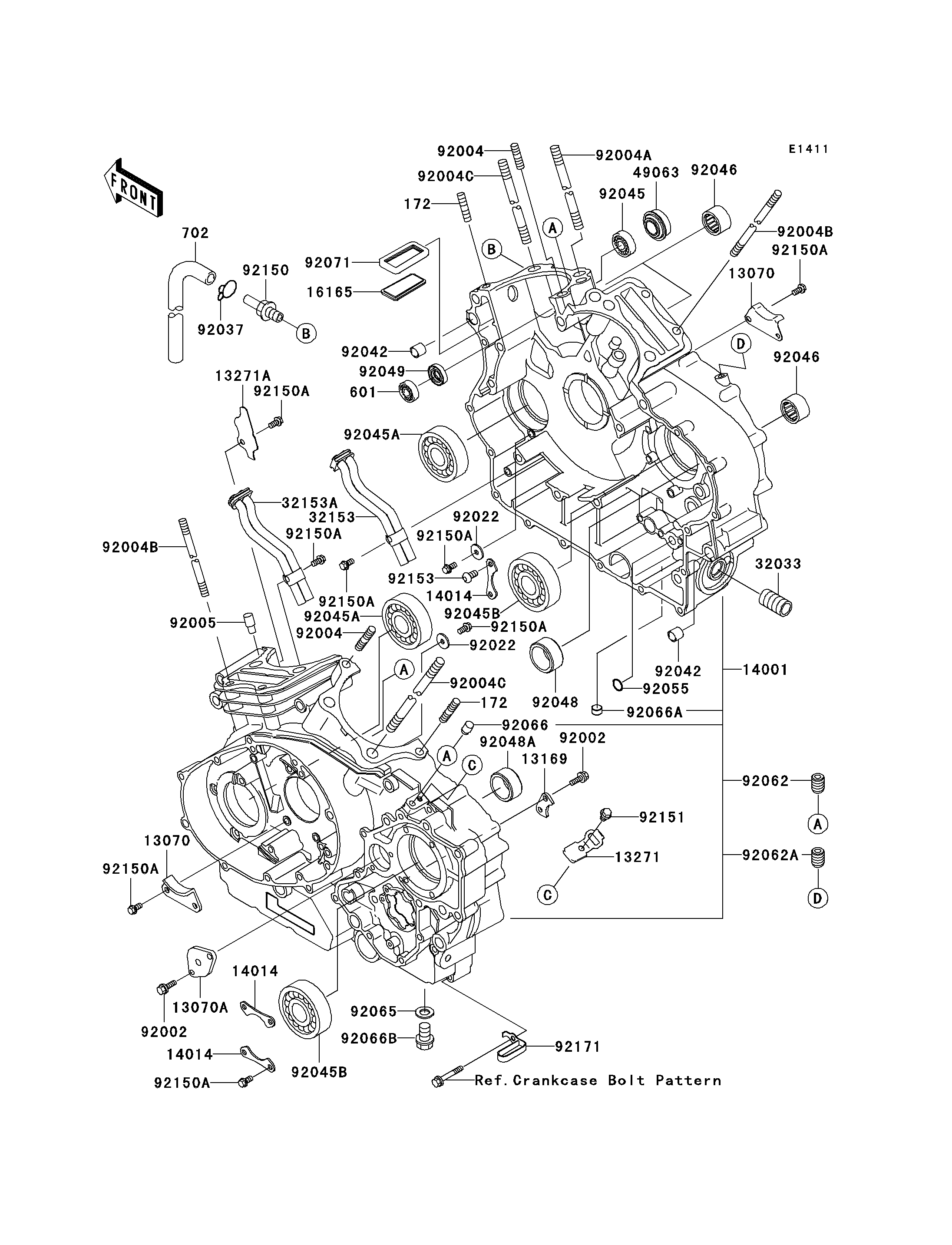

2006 Vulcan 1600 Mean Streak - Crankcase
13070
13070
13070
13070
13070A
13070A
13169
13169
13271
13271
13271A
13271A
14001
14001
14014
14014
14014
14014
14014
14014
16165
16165
32033
32033
32153
32153
32153A
32153A
49063
49063
92002
92002
92002
92002
92004
92004
92004
92004
92004A
92004A
92004B
92004B
92004B
92004B
92004C
92004C
92004C
92004C
92005
92005
92022
92022
92022
92022
92037
92037
92042
92042
92042
92042
92045
92045
92045A
92045A
92045A
92045A
92045B
92045B
92045B
92045B
92046
92046
92046
92046
92048
92048
92048A
92048A
92049
92049
92055
92055
92062
92062
92062A
92062A
92065
92065
92066
92066
92066A
92066A
92066B
92066B
92071
92071
92150
92150
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92150A
92151
92151
92153
92153
172
172
172
172
601
601
702
702
92171
92171
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GUIDE,CAM CHAIN | 13070 | 13070-1168 | 2 | ||
GUIDE | 13070A | 13070-1372 | 1 | ||
PLATE,GEAR CHANGE DRUM | 13169 | 13169-014 | 1 | ||
PLATE | 13271 | 13271-0210 | 1 | ||
PLATE | 13271A | 13271-1727 | 1 | ||
SET-CRANKCASE | 14001 | 14001-5394 | 1 | ||
PLATE-POSITION | 14014 | 14014-1084 | 3 | ||
SEPARATOR | 16165 | 16165-1058 | 1 | ||
PIPE,OIL FILTER | 32033 | 32033-1535 | 1 | ||
PIPE,RH CRANKCASE | 32153 | 32153-1262 | 1 | ||
PIPE,LH CRANKCASE | 32153A | 32153-1263 | 1 | ||
SEAL-MECHANICAL | 49063 | 49063-1057 | 1 | ||
BOLT,6X16 | 92002 | 92002-1439 | 4 | ||
STUD,8X25 | 92004 | 92004-0011 | 2 | ||
STUD,12X250 | 92004A | 92004-0017 | 1 | ||
STUD,8X231 | 92004B | 92004-1174 | 4 | ||
STUD,12X250 | 92004C | 92004-1225 | 7 | ||
FITTING | 92005 | 92005-1155 | 1 | ||
WASHER,6X19.5X2 | 92022 | 92022-1517 | 2 | ||
CLAMP | 92037 | 92037-1835 | 1 | ||
PIN,DOWEL,11X14X12.5 | 92042 | 92042-028 | 2 | ||
BEARING-BALL,6001JRXLLU/5K | 92045 | 92045-1151 | 1 | ||
BEARING-BALL,63/28 | 92045A | 92045-1189 | 2 | ||
BEARING-BALL,6306SH2 | 92045B | 92045-1190 | 2 | ||
BEARING-NEEDLE,HK1212V11 | 92046 | 92046-1292 | 3 | ||
RACE | 92048 | 92048-1103 | 1 | ||
RACE | 92048A | 92048-1113 | 1 | ||
SEAL-OIL,SC 12X22X5 | 92049 | 92049-1228 | 1 | ||
RING-O,13.2X2.4 | 92055 | 92055-1373 | 1 | ||
NOZZLE,6X8,GREEN | 92062 | 92062-1078 | 3 | ||
NOZZLE | 92062A | 92062-1089 | 1 | ||
GASKET,12X22X2 | 92065 | 92065-097 | 1 | ||
PLUG,OIL LINE,7.2X8 | 92066 | 92066-1012 | 1 | ||
PLUG | 92066A | 92066-1110 | 1 | ||
PLUG,OIL DRAIN,12X15 | 92066B | 92066-1174 | 1 | ||
GROMMET,SEPARATOR | 92071 | 92071-1269 | 1 | ||
BOLT | 92150 | 92150-1161 | 1 | ||
BOLT,6X12 | 92150A | 92150-1868 | 13 | ||
BOLT,6X8 | 92151 | 92151-1416 | 1 | ||
BOLT,6X12 | 92153 | 92153-0344 | 2 | ||
BOLT-STUD,8X25 | 172 | 172G0825 | 2 | ||
BEARING-BALL | 601 | 601A6001 | 1 | ||
TUBE-RUBBER,4X330 | 702 | 702A04330 | 1 | ||
CLAMP | 92171 | 92171-1273 | 1 |
GUIDE,CAM CHAIN | |
REF # | 13070 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GUIDE | |
REF # | 13070A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,GEAR CHANGE DRUM | |
REF # | 13169 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13271 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE | |
REF # | 13271A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SET-CRANKCASE | |
REF # | 14001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-POSITION | |
REF # | 14014 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SEPARATOR | |
REF # | 16165 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,OIL FILTER | |
REF # | 32033 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,RH CRANKCASE | |
REF # | 32153 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIPE,LH CRANKCASE | |
REF # | 32153A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-MECHANICAL | |
REF # | 49063 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X16 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
STUD,8X25 | |
REF # | 92004 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
STUD,12X250 | |
REF # | 92004A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STUD,8X231 | |
REF # | 92004B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
STUD,12X250 | |
REF # | 92004C |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6X19.5X2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL,11X14X12.5 | |
REF # | 92042 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,6001JRXLLU/5K | |
REF # | 92045 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL,63/28 | |
REF # | 92045A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL,6306SH2 | |
REF # | 92045B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE,HK1212V11 | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
RACE | |
REF # | 92048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RACE | |
REF # | 92048A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,SC 12X22X5 | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING-O,13.2X2.4 | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NOZZLE,6X8,GREEN | |
REF # | 92062 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NOZZLE | |
REF # | 92062A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,12X22X2 | |
REF # | 92065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,OIL LINE,7.2X8 | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG | |
REF # | 92066A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,OIL DRAIN,12X15 | |
REF # | 92066B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GROMMET,SEPARATOR | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92150 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92150A |
---|---|
PART NUMBER | |
QUANTITY | 13 |
DESTINATION | |
REMARKS |
BOLT,6X8 | |
REF # | 92151 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X12 | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-STUD,8X25 | |
REF # | 172 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE-RUBBER,4X330 | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
