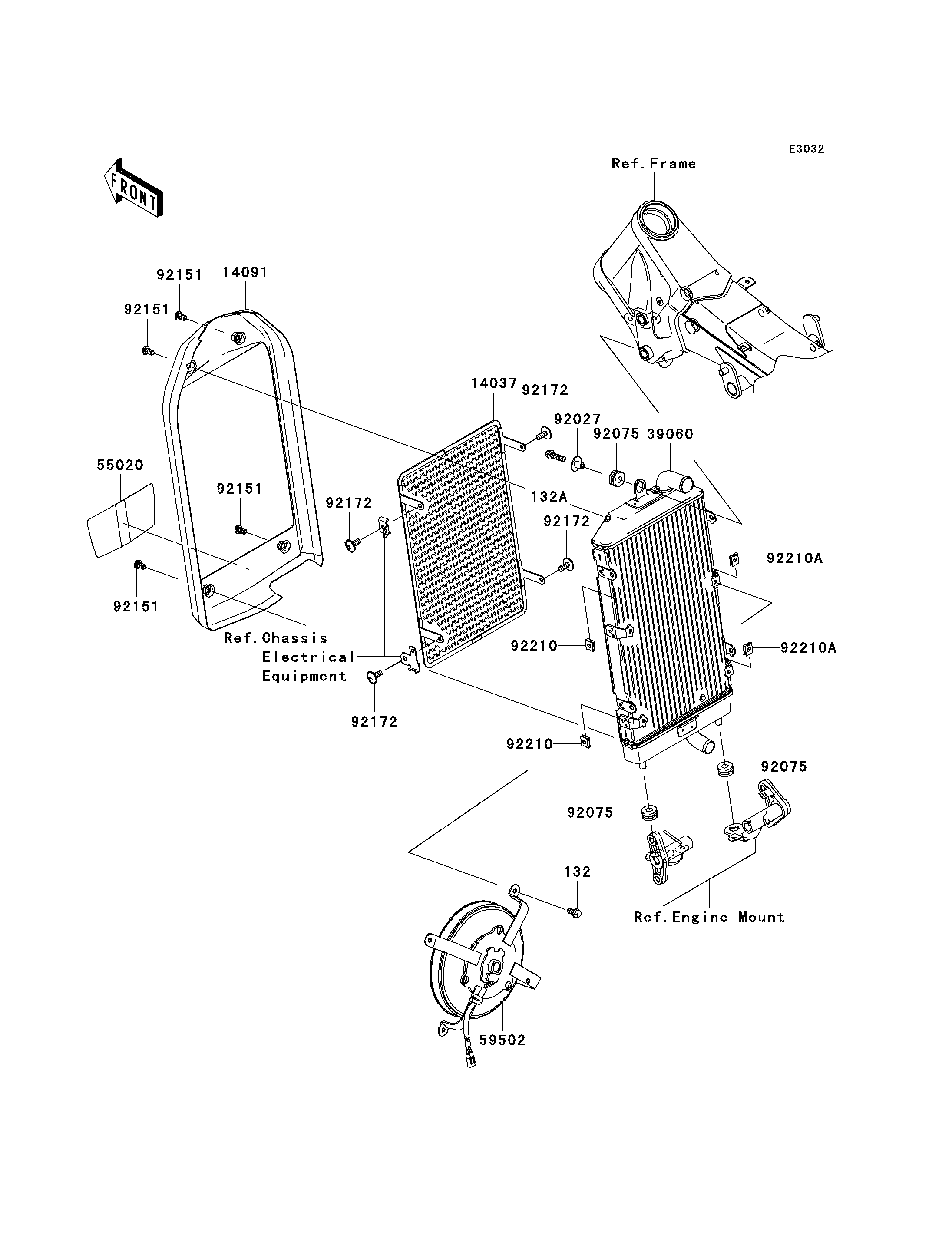

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
132A
14037
14091
39060
55020
59502
92027
92075
92075
92075
92151
92151
92151
92151
92172
92172
92172
92172
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BB0610 | 4 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132BB0620 | 1 | ||
| SCREEN | 14037 | 14037-0005 | 1 | ||
| COVER,RADIATOR,F.S.BLACK | 14091 | 14091-0876-18R | 1 | ||
| RADIATOR | 39060 | 39060-0018 | 1 | ||
| GUARD | 55020 | 55020-0100 | 1 | ||
| FAN-ASSY | 59502 | 59502-0035 | 1 | ||
| COLLAR,L=13.1,BLACK | 92027 | 92027-1450 | 1 | ||
| DAMPER | 92075 | 92075-1690 | 3 | ||
| BOLT,6X10 | 92151 | 92151-1809 | 4 | ||
| SCREW,6X14 | 92172 | 92172-0004 | 4 | ||
| NUT | 92210 | 92210-1125 | 4 | ||
| NUT | 92210A | 92210-1323 | 4 |
| BOLT-FLANGED-SMALL,6X10 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X20 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREEN | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,RADIATOR,F.S.BLACK | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR | |
| REF # | 39060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=13.1,BLACK | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
