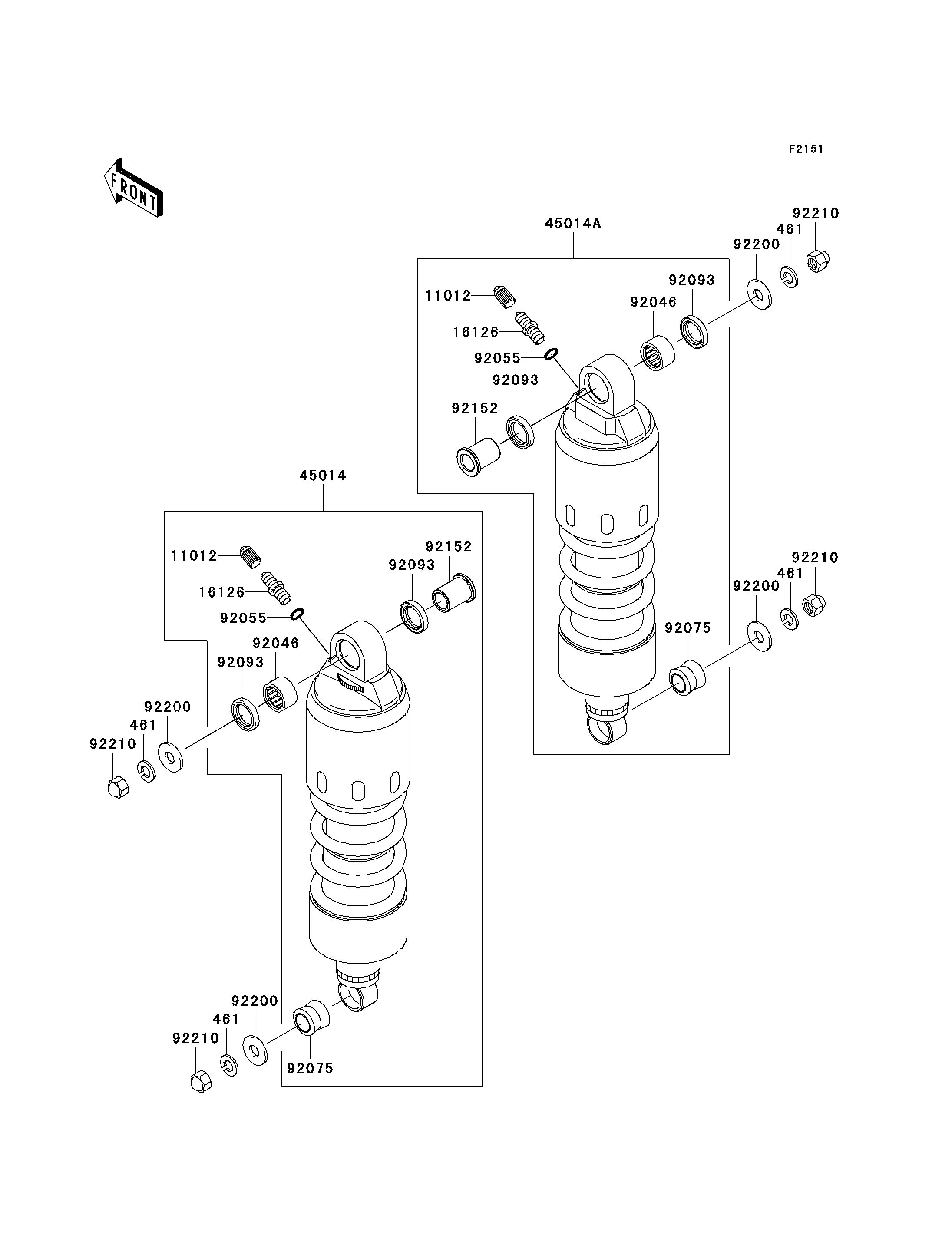

2006 Vulcan 1600 Mean Streak - Suspension/Shock Absorber
461
461
461
461
11012
11012
16126
16126
45014
45014A
92046
92046
92055
92055
92075
92075
92093
92093
92093
92093
92152
92152
92200
92200
92200
92200
92210
92210
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WASHER-SPRING,10MM | 461 | 461S1000 | 4 | ||
CAP | 11012 | 11012-1283 | 2 | ||
VALVE,AIR | 16126 | 16126-1105 | 2 | ||
SHOCKABSORBER,LH | 45014 | 45014-0029 | 1 | ||
SHOCKABSORBER,RH | 45014A | 45014-0030 | 1 | ||
BEARING-NEEDLE | 92046 | 92046-1296 | 2 | ||
RING-O | 92055 | 92055-1130 | 2 | ||
DAMPER,SHOCKABSORBER | 92075 | 92075-1387 | 2 | ||
SEAL | 92093 | 92093-1552 | 4 | ||
COLLAR | 92152 | 92152-1336 | 2 | ||
WASHER,10.5X26X2.5 | 92200 | 92200-1565 | 4 | ||
NUT,CAP,10MM | 92210 | 92210-1288 | 4 |
WASHER-SPRING,10MM | |
REF # | 461 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CAP | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
VALVE,AIR | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SHOCKABSORBER,LH | |
REF # | 45014 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHOCKABSORBER,RH | |
REF # | 45014A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-NEEDLE | |
REF # | 92046 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER,SHOCKABSORBER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER,10.5X26X2.5 | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
NUT,CAP,10MM | |
REF # | 92210 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
