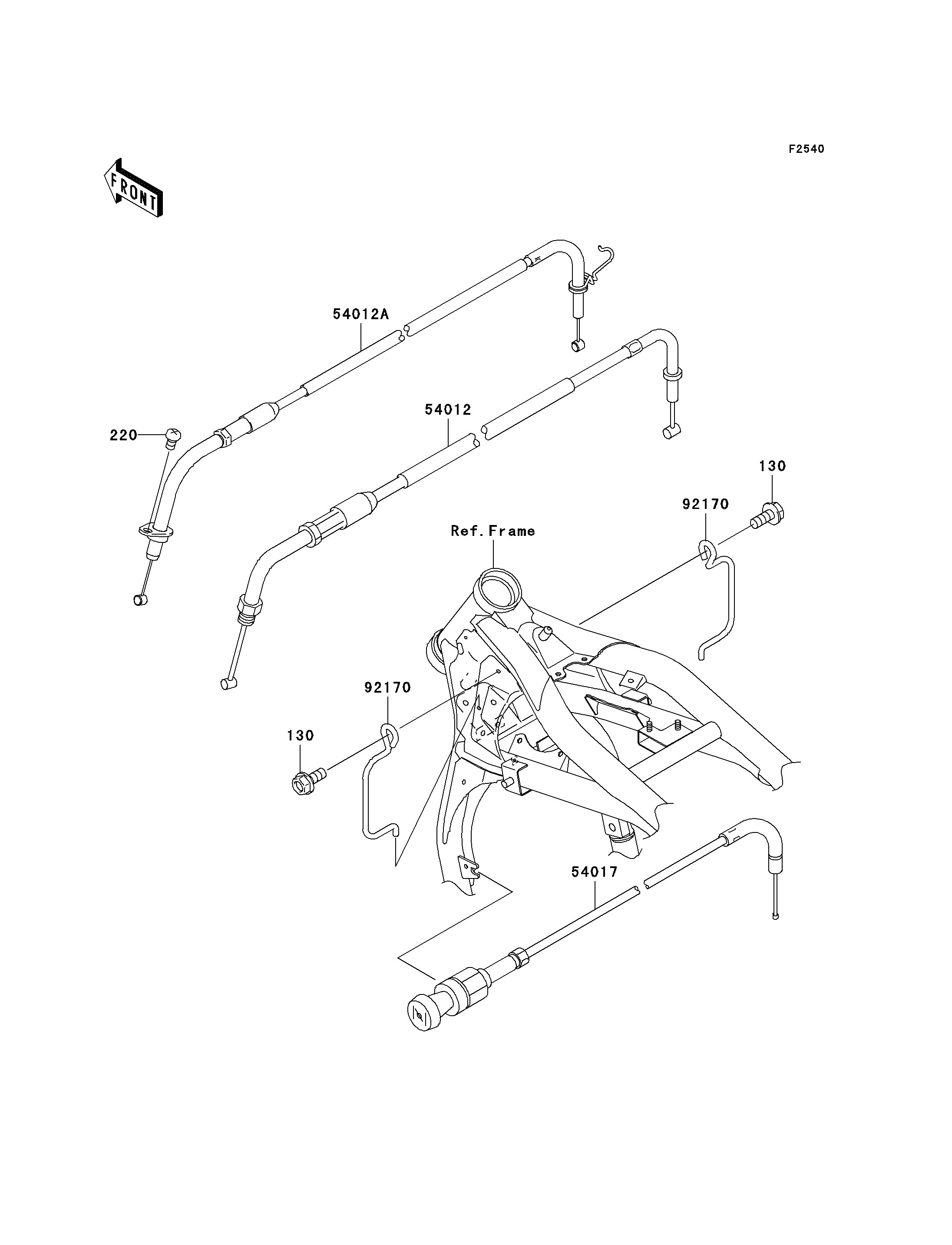

130
130
220
54012
54012A
54017
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130J0614 2
SCREW-PAN-CROSS,5X8 220 220F0508 1
CABLE-THROTTLE,CLOSING 54012 54012-0073 1
CABLE-THROTTLE,OPENING 54012A 54012-0074 1
CABLE-STARTER 54017 54017-1202 1
CLAMP,CABLE 92170 92170-1867 2
