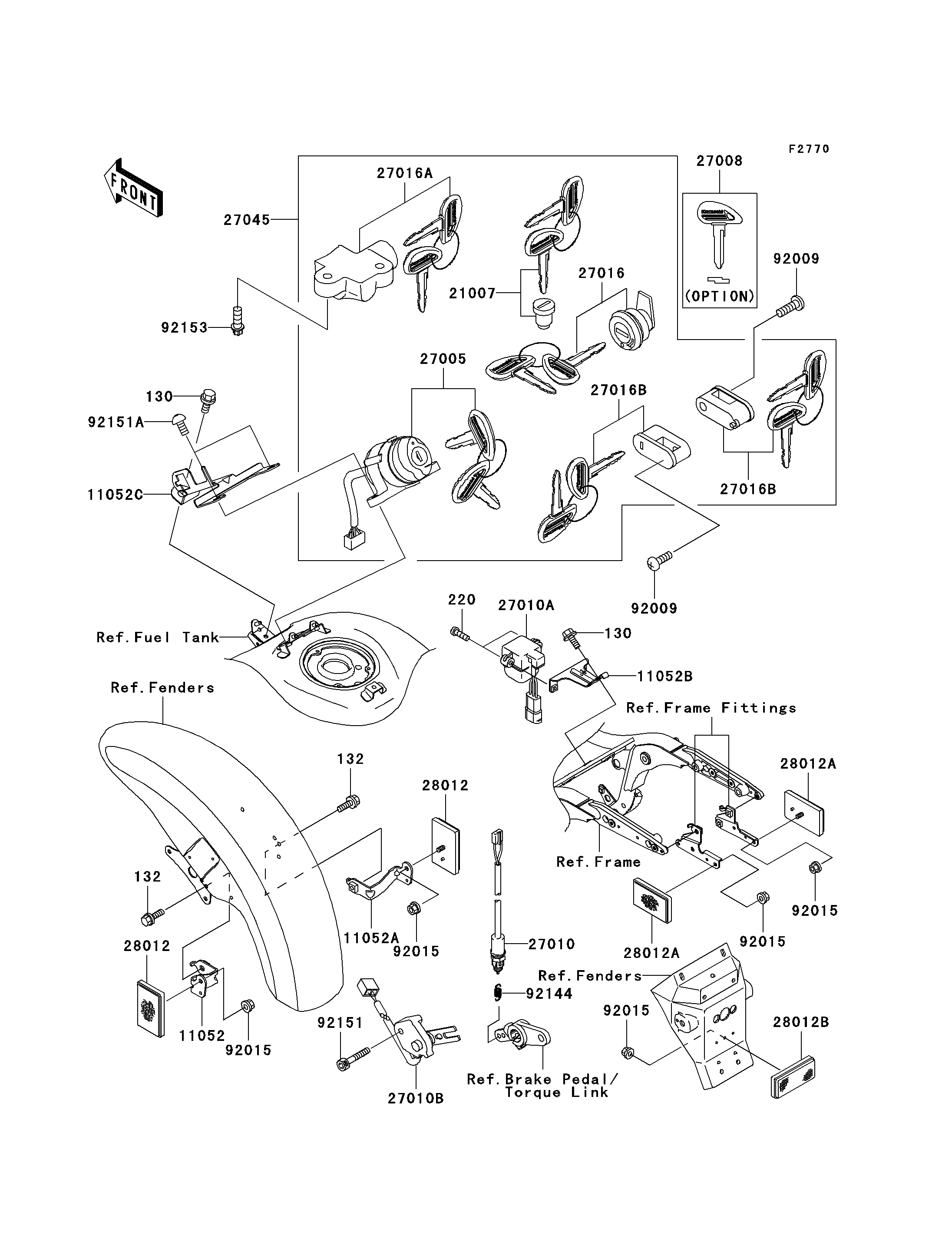

2006 Vulcan 1600 Mean Streak - Ignition Switch/Locks/Reflectors
130
130
132
132
220
11052
11052A
11052B
11052C
21007
27005
27008
27010
27010A
27010B
27016
27016A
27016B
27016B
27045
28012
28012
28012A
28012A
28012B
92009
92009
92015
92015
92015
92015
92015
92144
92151
92151A
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X10 | 130 | 130J0610 | 2 | ||
BOLT-FLANGED-SMALL,6X12 | 132 | 132Y0612 | 2 | ||
SCREW-PAN-CROS,4X20 | 220 | 220C0420 | 2 | ||
BRACKET,REFLECTOR,FR,LH | 11052 | 11052-1284 | 1 | ||
BRACKET,REFLECTOR,FR,RH | 11052A | 11052-1285 | 1 | ||
BRACKET,DOWN SENSOR | 11052B | 11052-1302 | 1 | ||
BRACKET,IGNITION SWITCH | 11052C | 11052-1494 | 1 | ||
ROTOR,LOCK,TANK CAP | 21007 | 21007-5049 | 1 | ||
SWITCH-ASSY-IGNITION | 27005 | 27005-0001 | 1 | ||
KEY-LOCK,BLANK | 27008 | 27008-1211 | 1 | (OPTION) | |
SWITCH,REAR BRAKE | 27010 | 27010-1412 | 1 | ||
SWITCH,DOWN SENSOR | 27010A | 27010-1416 | 1 | ||
SWITCH,SIDE STAND | 27010B | 27010-1470 | 1 | ||
LOCK-ASSY,LID | 27016 | 27016-5279 | 1 | ||
LOCK-ASSY,STEERING | 27016A | 27016-5298 | 1 | ||
LOCK-ASSY,HELMET | 27016B | 27016-5317 | 2 | ||
SWITCH-ASSY | 27045 | 27045-5248 | 1 | ||
REFLECTOR-REFLEX,FR | 28012 | 28012-1009 | 2 | ||
REFLECTOR-REFLEX,RR | 28012A | 28012-1051 | 2 | ||
REFLECTOR-REFLEX | 28012B | 28012-1077 | 1 | ||
SCREW,5X12 | 92009 | 92009-1296 | 2 | ||
NUT,FLANGED,5MM | 92015 | 92015-1656 | 5 | ||
SPRING,REAR BRAKE SWITCH | 92144 | 92144-1141 | 1 | ||
BOLT,SOCKET,6X35 | 92151 | 92151-1390 | 1 | ||
BOLT,SOCKET,6X16 | 92151A | 92151-1751 | 2 | ||
BOLT,TORX,8X22 | 92153 | 92153-1273 | 2 |
