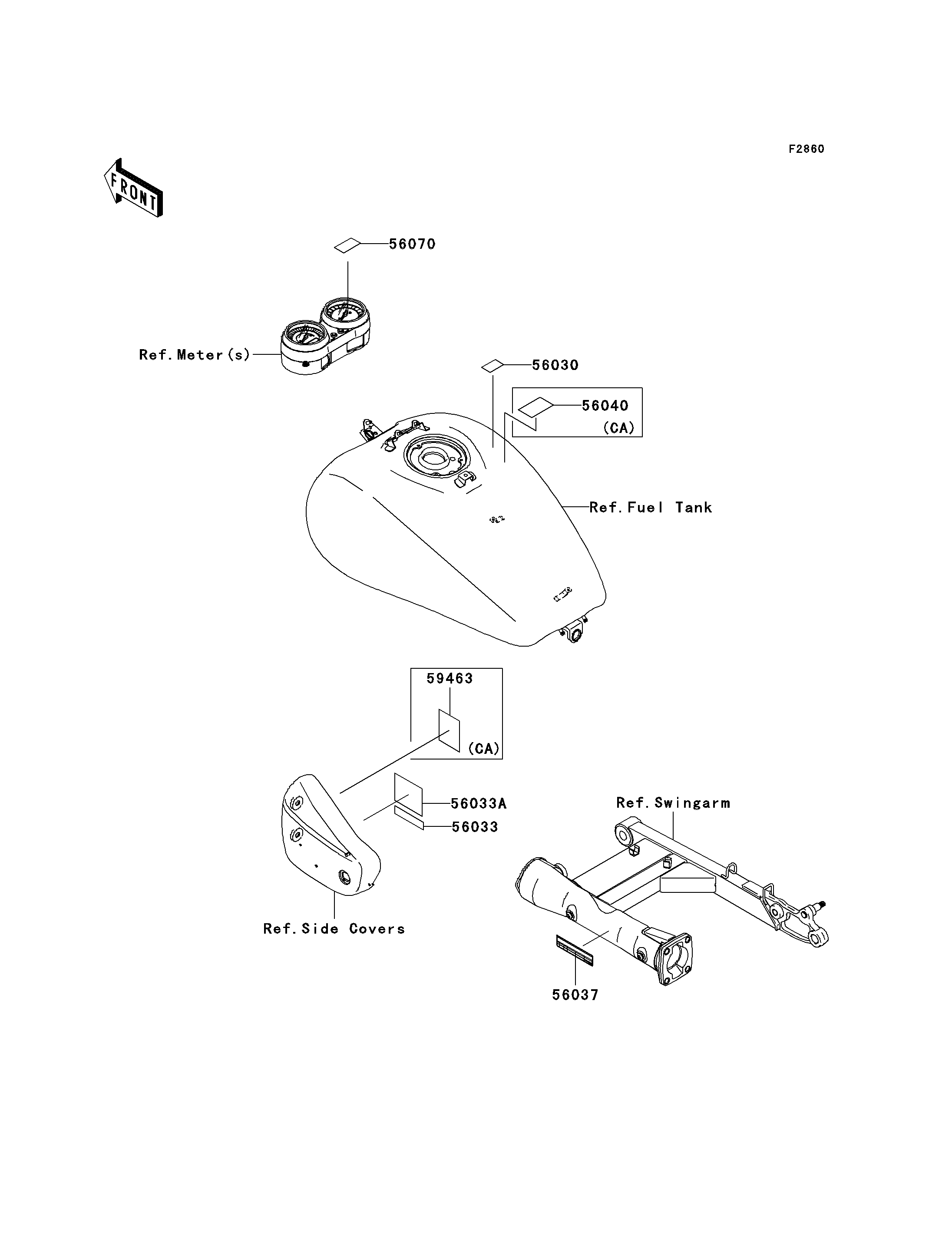

56030
56033
56033A
56037
56070
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,GASOLINE 56030 56030-1177 1
LABEL-MANUAL,OIL&OIL FILTER 56033 56033-1331 1
LABEL-MANUAL,DAILY SAFETY 56033A 56033-1336 1
LABEL-SPECIFICATION,TIRE&LOAD 56037 56037-1983 1
LABEL-WARNING,BREAK IN CAUTION 56070 56070-1270 1
LABEL-WARNING,EVAPO 56040 56040-1121 1 CA
LABEL-CERTIFICATION,EVAPO ROUT 59463 59463-1546 1 CA
