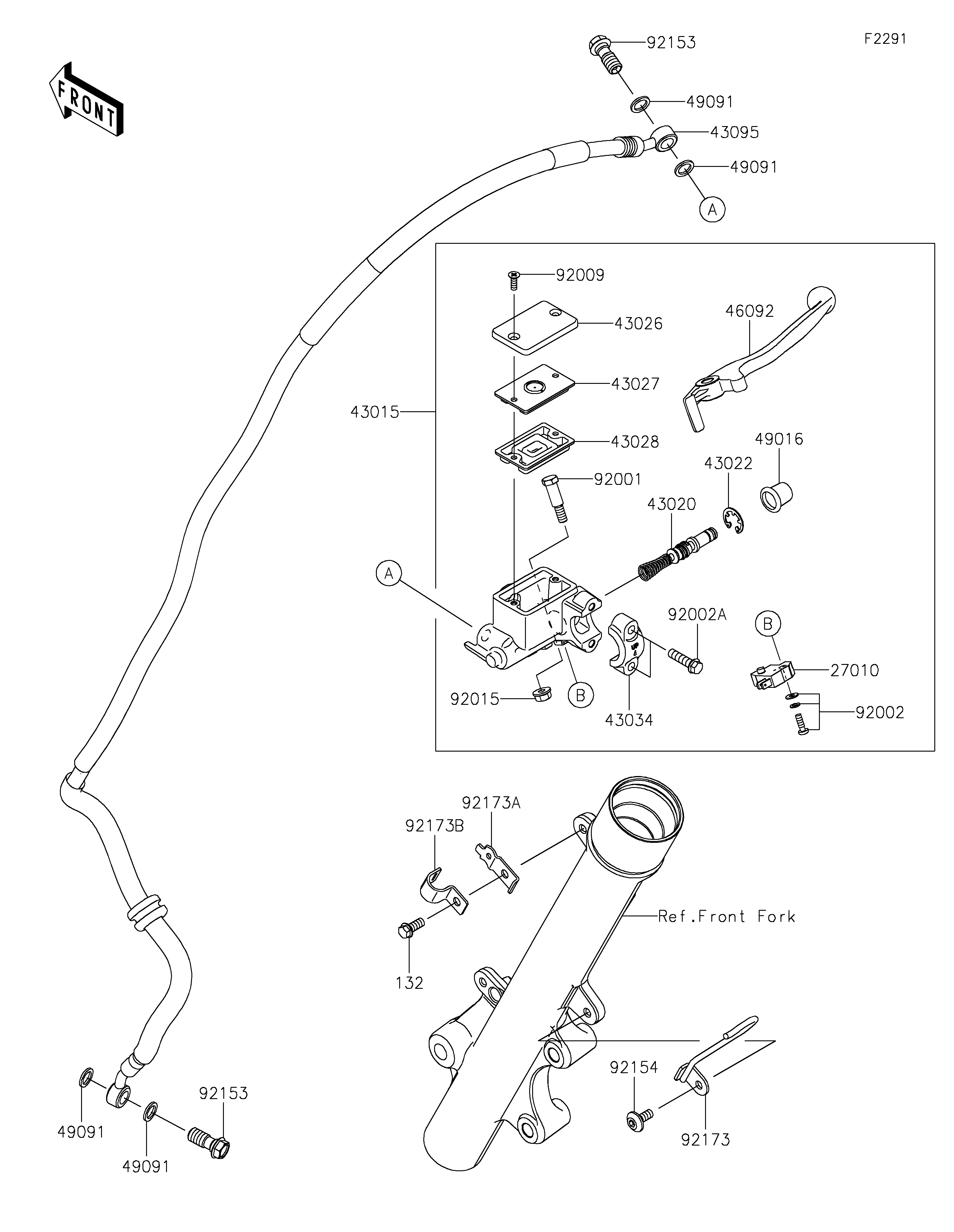

2023 KLX®230 S - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
27010
43015
43020
43022
43026
43027
43028
43034
43095
46092
49016
49091
49091
49091
49091
92001
92002
92002A
92009
92015
92153
92153
92154
92173
92173A
92173B
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH,BRAKE 27010 27010-0873 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0741 1
PISTON-COMP-BRAKE 43020 43020-0034 1
STOPPER-BRAKE,PISTON 43022 43022-0004 1
CAP-BRAKE 43026 43026-1082 1
PLATE-DIAPHRAGM 43027 43027-1057 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR M/C-FR CALIPER 43095 43095-1817 1
LEVER-GRIP,FRONT BRAKE 46092 46092-0044 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BOLT,OIL,L=23 92153 92153-0029 2
BOLT,SOCKET,6X14 92154 92154-3763 1
CLAMP,BRAKE HOSE,CALIPER 92173 92173-1972 1
CLAMP,BRAKE HOSE,FORK 92173A 92173-1974 1
CLAMP,BRAKE HOSE,FORK 92173B 92173-1975 1
BOLT-FLANGED-SMALL,6X14 132 132BA0614 1
