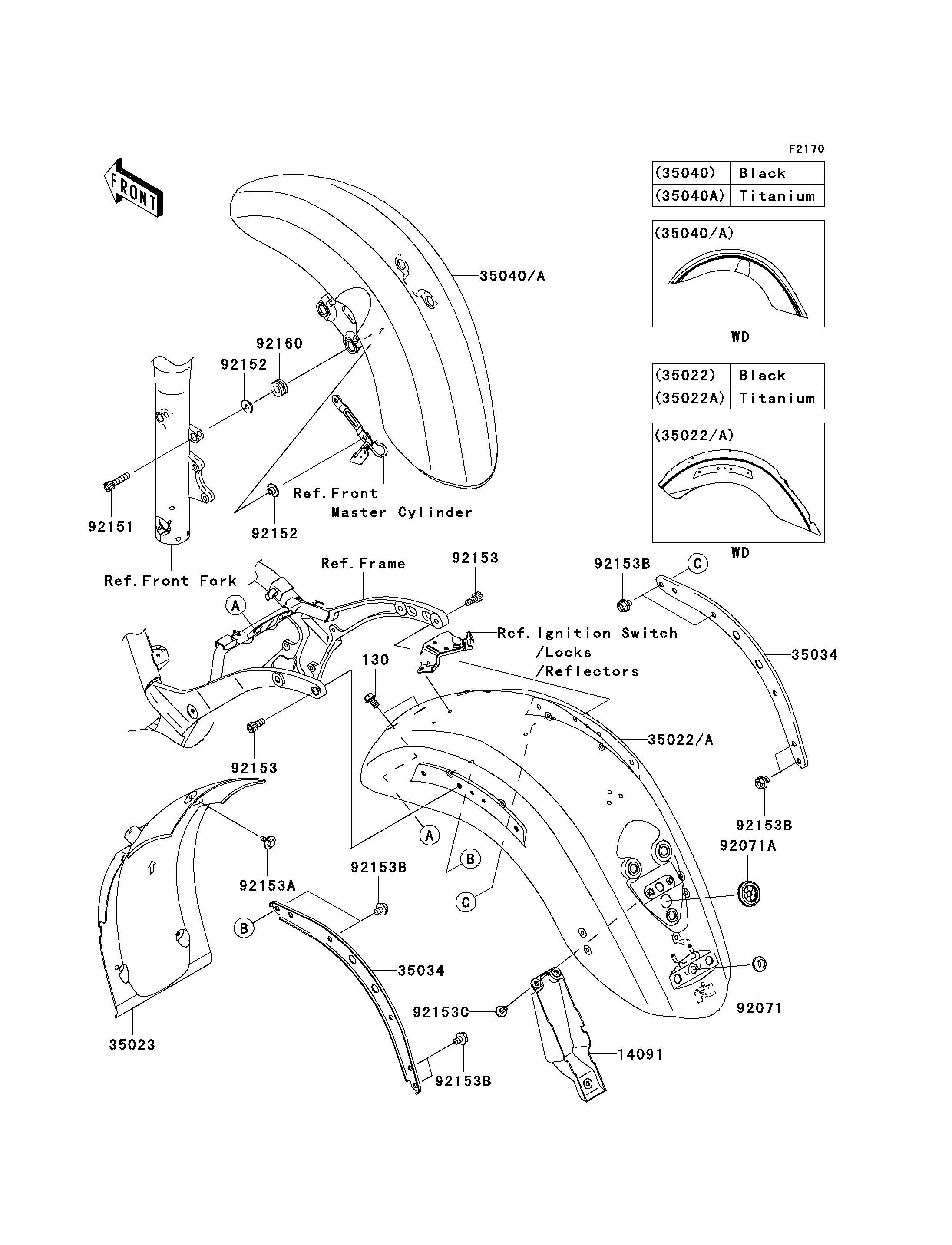

Parts Diagrams |
14091
14091
35022A
35022A
35023
35023
35034
35034
35034
35034
35040A
35040A
92071
92071
92071A
92071A
92151
92151
92152
92152
92152
92152
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153C
92153C
92160
92160
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,REAR FENDER | 14091 | 14091-0070 | 1 | ||
| FENDER-COMP-REAR,M.TITANIUM | 35022A | 35022-5209-740 | 1 | ||
| FENDER-REAR,INNER | 35023 | 35023-0033 | 1 | ||
| REINFORCE,RR FENDER | 35034 | 35034-0049 | 2 | ||
| FENDER-COMP-FRONT,M.TITANIUM | 35040A | 35040-5025-740 | 1 | ||
| GROMMET,10MM | 92071 | 92071-019 | 1 | ||
| GROMMET | 92071A | 92071-1265 | 1 | ||
| BOLT,SOCKET,8X35 | 92151 | 92151-1535 | 4 | ||
| COLLAR | 92152 | 92152-0249 | 8 | ||
| BOLT,SOCKET,8X18 | 92153 | 92153-0672 | 2 | ||
| BOLT,6X16 | 92153A | 92153-0698 | 4 | ||
| BOLT,FLANGED,8X10 | 92153B | 92153-0724 | 8 | ||
| BOLT,SOCKET,6X14 | 92153C | 92153-0729 | 3 | ||
| DAMPER | 92160 | 92160-1007 | 4 | ||
| BOLT-FLANGED,8X16 | 130 | 130BB0816 | 2 |
| COVER,REAR FENDER | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-REAR,M.TITANIUM | |
| REF # | 35022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR,INNER | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REINFORCE,RR FENDER | |
| REF # | 35034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FENDER-COMP-FRONT,M.TITANIUM | |
| REF # | 35040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,10MM | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X35 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X18 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X10 | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92153C |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
