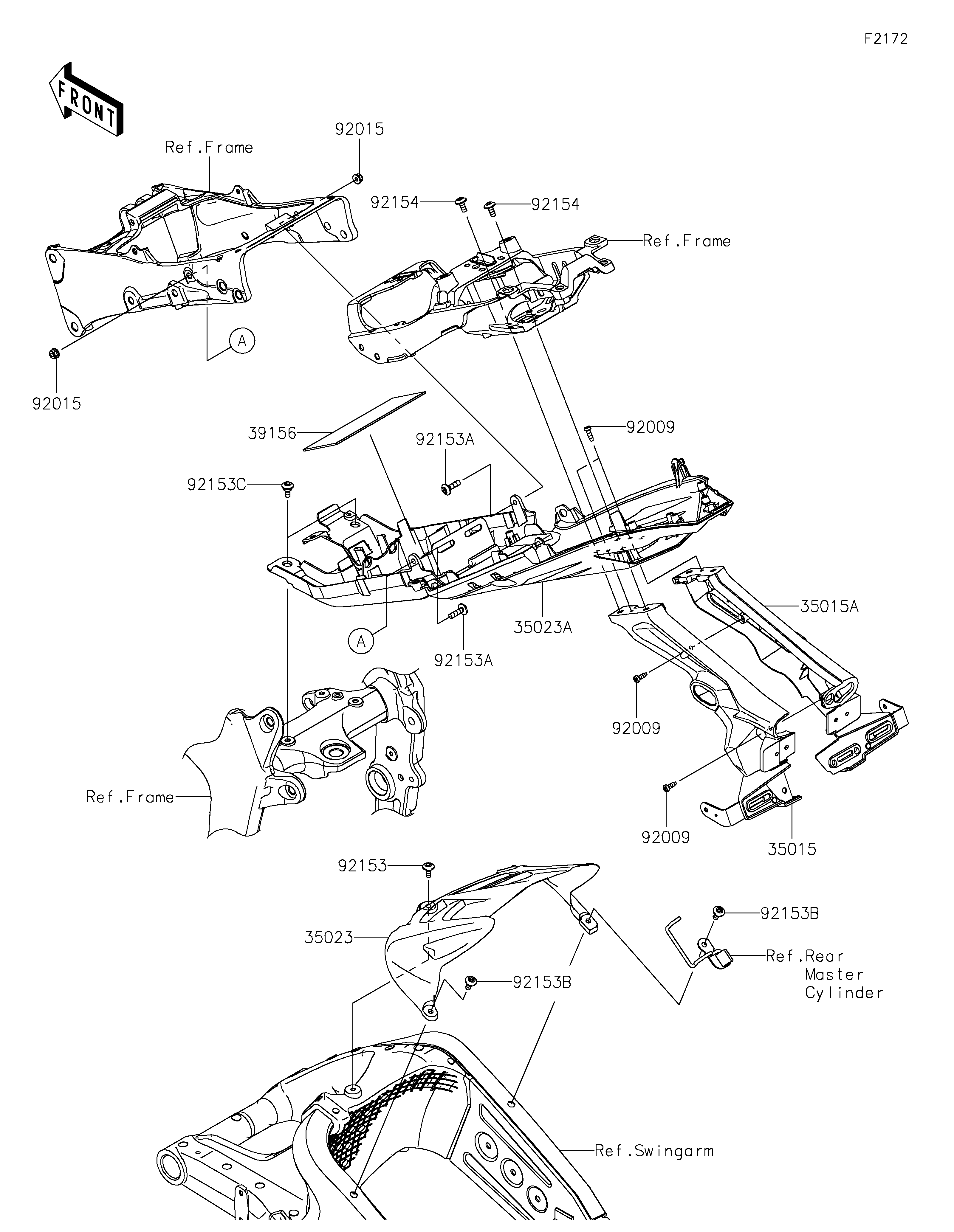

2019 NINJA® ZX™-6R - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
35015
35015A
35023
35023A
39156
92009
92009
92009
92015
92015
92153
92153A
92153A
92153B
92153B
92153C
92154
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FLAP-COMP,LH 35015 35015-0040 1
FLAP-COMP,RH 35015A 35015-0041 1
FENDER-REAR,INNER 35023 35023-0171 1
FENDER-REAR 35023A 35023-0446 1
PAD 39156 39156-0530 1
SCREW,TAPPING,5X16 92009 92009-1984 4
NUT,LOCK,FLANGED,6MM 92015 92015-1603 2
BOLT,SOCKET,6X14 92153 92153-0422 1
BOLT,SOCKET,6X22 92153A 92153-1356 2
BOLT,SOCKET,6X18 92153B 92153-1675 2
BOLT,SOCKET,6MM 92153C 92153-1956 2
BOLT,SOCKET,6X14 92154 92154-0745 4
