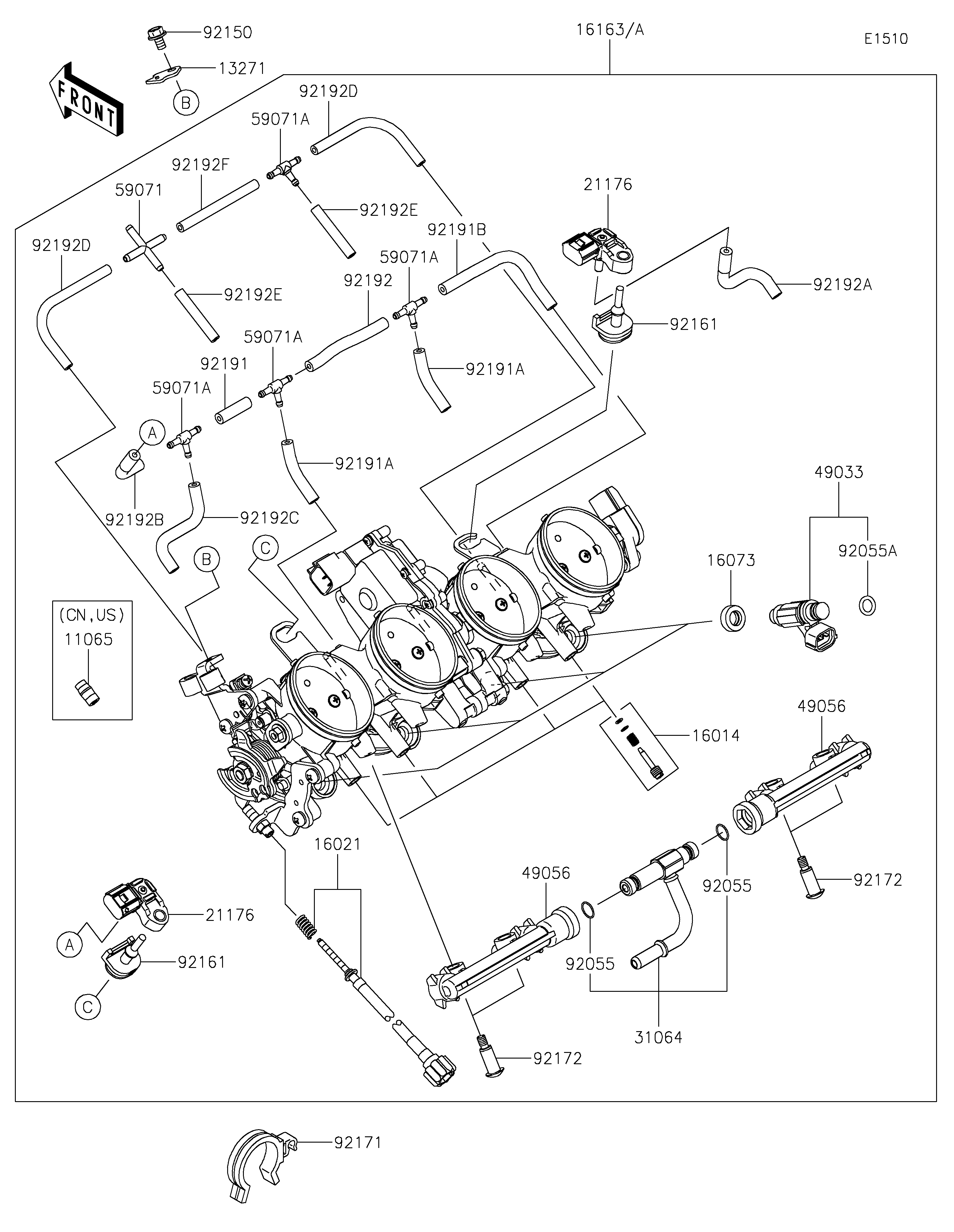

2021 Ninja® ZX™-6R ABS - Throttle

DOWNLOAD PDF
SELECT A NEW PART
11065
13271
16014
16021
16073
16163A
21176
21176
31064
49033
49056
49056
59071A
59071A
59071A
59071A
92055
92055
92055A
92150
92161
92161
92171
92172
92172
92191
92191A
92191A
92191B
92192
92192A
92192B
92192C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0018 3 _________________________________________CN,US
PLATE 13271 13271-0559 1
SCREW-PILOT AIR 16014 16014-0002 4
SCREW-THROTTLE STOP 16021 16021-0028 1
INSULATOR 16073 16073-3707 4
THROTTLE-ASSY,TTK38 16163A 16163-1000 1 _________________________________________CN,US
SENSOR,PRESSURE 21176 21176-0111 2
PIPE-COMP 31064 31064-0622 1
NOZZLE-INJECTION 49033 49033-0012 4
PIPE-INJECTION 49056 49056-0014 2
JOINT,3WAY,T 59071A 59071-3752 3 _________________________________________CA
RING-O 92055 92055-0064 2
RING-O,INJECTION NOZZLE 92055A 92055-1622 4
BOLT,5X8 92150 92150-1406 1
DAMPER 92161 92161-0673 2
CLAMP 92171 92171-0359 1
SCREW,PIPE INJECTION 92172 92172-0064 4
TUBE,3X7X25 92191 92191-0020 1
TUBE,3X7X40 92191A 92191-0022 2
TUBE,3X7X100 92191B 92191-0023 1
TUBE,3X7X72 92192 92192-0739 1
TUBE,THROBO RH-SENSOR 92192A 92192-0840 1
TUBE,THROBO LH-JOINT 92192B 92192-0841 1
TUBE,SENSOR-JOINT 92192C 92192-0842 1
