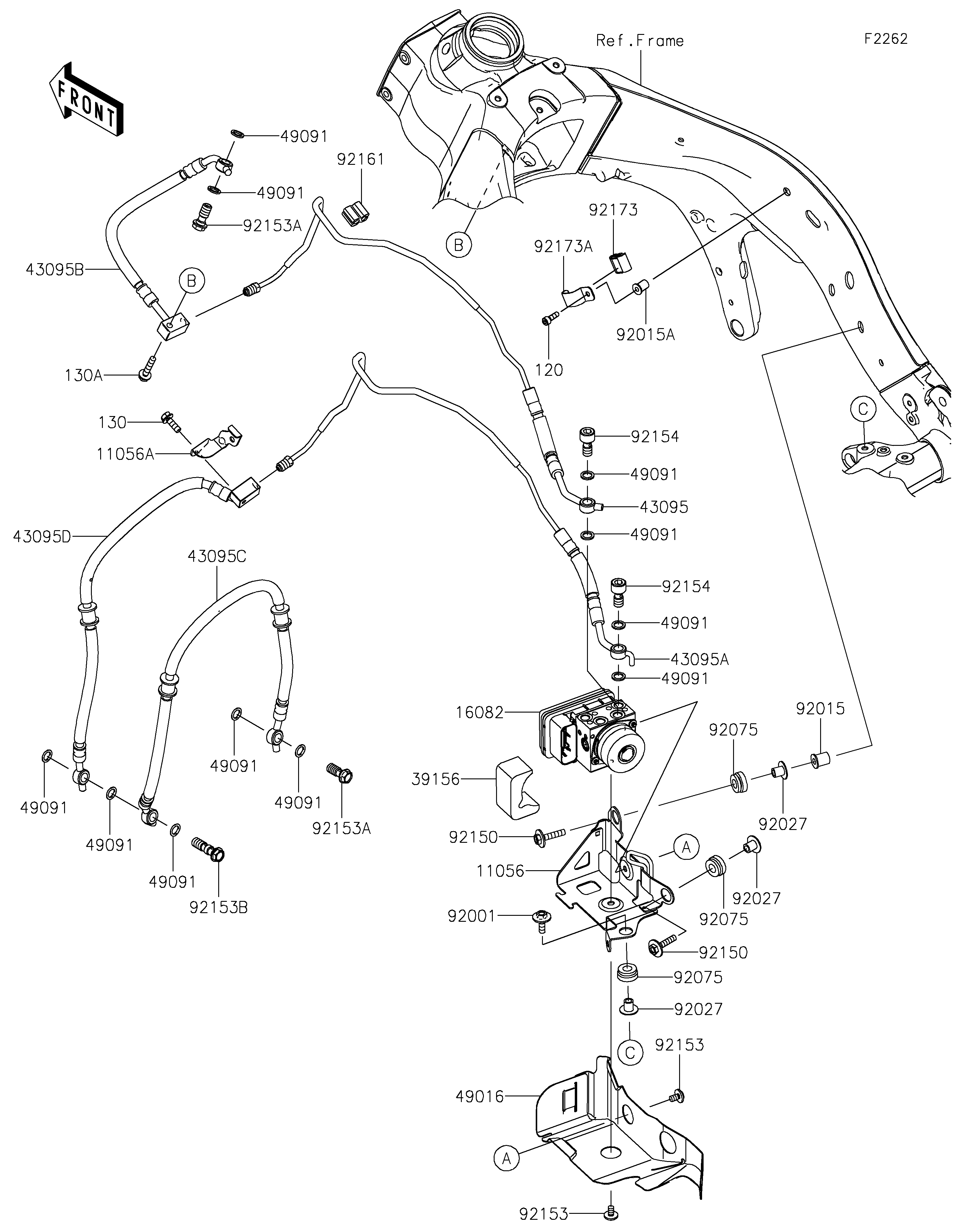

2021 Ninja® ZX™-6R ABS - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
16082
39156
43095
43095A
43095B
43095C
43095D
49016
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
49091
92001
92015
92015A
92027
92027
92027
92075
92075
92075
92150
92150
92153
92153
92153A
92153A
92153B
92154
92154
92161
92173
92173A
120
130
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS UNIT 11056 11056-1960 1
BRACKET 11056A 11056-2052 1
PUMP-ASSY-OIL,ABS,BOSCH,9.1MP 16082 16082-0800 1
PAD,ABS UNIT 39156 39156-0994 1
HOSE-BRAKE,FR,MC-HU,JOINT 43095 43095-0729 1
HOSE-BRAKE,FR,HU-CALIPER,JOINT 43095A 43095-0730 1
HOSE-BRAKE,FR,MC-HU 43095B 43095-0733 1
HOSE-BRAKE,FR CALIPER,LH-RH 43095C 43095-0735 1
HOSE-BRAKE,FR,458MM 43095D 43095-0780 1
COVER-SEAL 49016 49016-0594 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 11
BOLT,6X20 92001 92001-1826 1
NUT 92015 92015-1700 1
NUT,WELL,5MM 92015A 92015-1757 1
COLLAR,L=12 92027 92027-1062 3
DAMPER 92075 92075-277 3
BOLT,6X30 92150 92150-1694 2
BOLT,SOCKET,6X10 92153 92153-0410 2
BOLT,OIL,L=23 92153A 92153-0627 2
BOLT,OIL,L=37 92153B 92153-0628 1
BOLT,BANJO,10X20.8 92154 92154-1121 2
DAMPER 92161 92161-1554 1
CLAMP,METAL PIPE 92173 92173-0986 1
CLAMP 92173A 92173-0987 1
BOLT-SOCKET,5X16 120 120CA0516 1
BOLT-FLANGED,6X18 130 130BA0618 1
BOLT-FLANGED,6X30 130A 130BA0630 1
