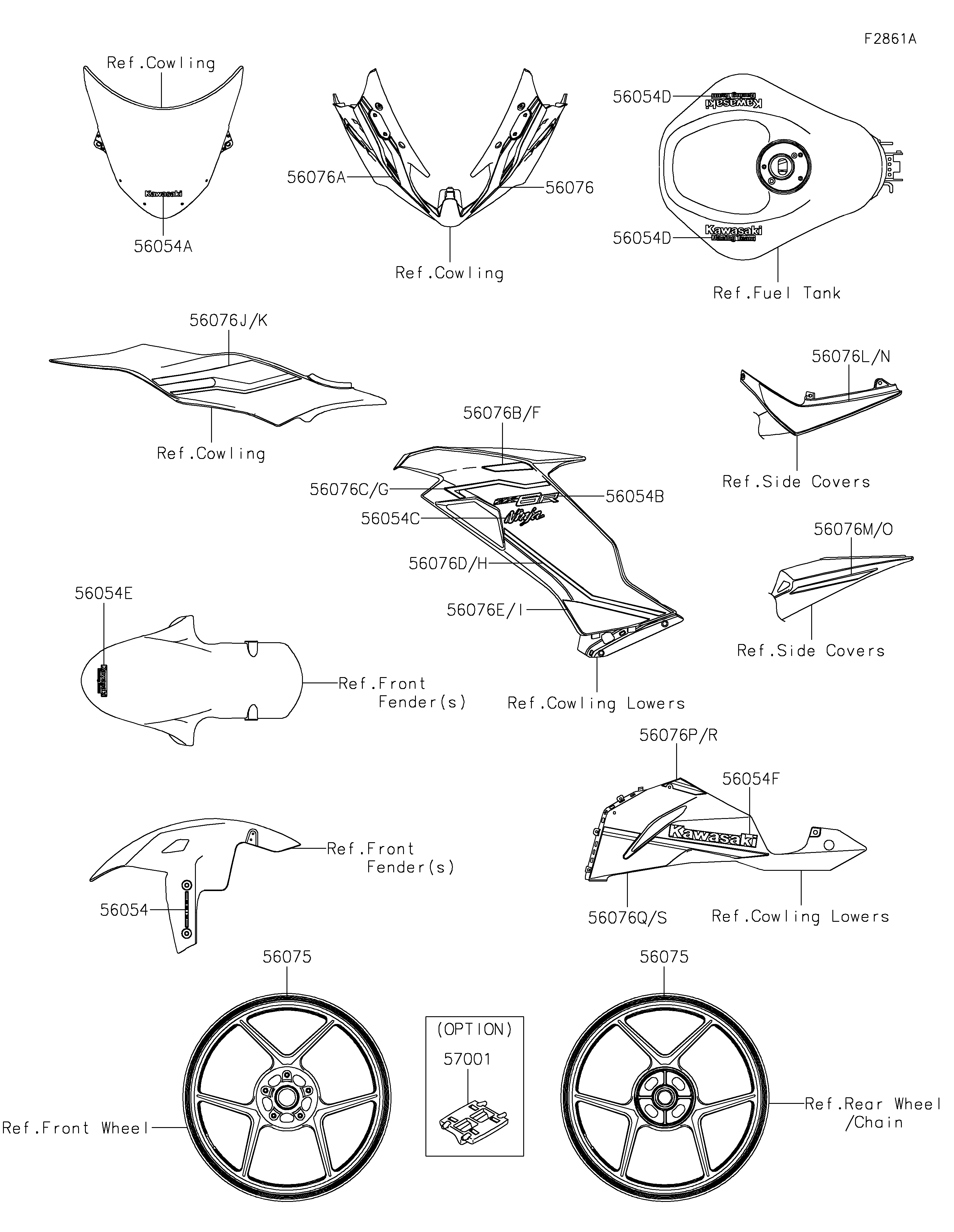

2022 Ninja ZX-6R ABS - Decals(Green)(GNFAN/GNFAL/GPFAN/GPFAL)
56054
56054A
56054B
56054C
56054D
56054D
56054E
56054F
56075
56075
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
56076O
56076P
56076Q
56076R
56076S
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,KIBS | 56054 | 56054-0919 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054A | 56054-2509 | 1 | ||
| MARK,SIDE COWL.,ZX-6R | 56054B | 56054-2818 | 2 | ||
| MARK,SIDE COWL.,NINJA | 56054C | 56054-2819 | 2 | ||
| MARK,FUEL TANK,KRT | 56054D | 56054-2820 | 2 | ||
| MARK,FR FENDER,KRT | 56054E | 56054-2821 | 1 | ||
| MARK,LWR COWL.,KAWASAKI | 56054F | 56054-2822 | 2 | ||
| PATTERN,WHEEL,GRN/BLK,6X1079 | 56075 | 56075-1693 | 4 | ||
| PATTERN,UPP COWL.,LH | 56076 | 56076-1744 | 1 | ||
| PATTERN,UPP COWL.,RH | 56076A | 56076-1745 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP,UPP | 56076B | 56076-1746 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP,LWR | 56076C | 56076-1747 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR,UPP | 56076D | 56076-1748 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR,LWR | 56076E | 56076-1749 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP,UPP | 56076F | 56076-1750 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP,LWR | 56076G | 56076-1751 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR,UPP | 56076H | 56076-1752 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR,LWR | 56076I | 56076-1753 | 1 | ||
| PATTERN,SIDE COVER,LH | 56076J | 56076-1754 | 1 | ||
| PATTERN,SIDE COVER,RH | 56076K | 56076-1755 | 1 | ||
| PATTERN,TAIL COVER,LH,UPP | 56076L | 56076-1756 | 1 | ||
| PATTERN,TAIL COVER,LH,LWR | 56076M | 56076-1757 | 1 | ||
| PATTERN,TAIL COVER,RH,UPP | 56076N | 56076-1758 | 1 | ||
| PATTERN,TAIL COVER,RH,LWR | 56076O | 56076-1759 | 1 | ||
| PATTERN,LWR COWL.,LH,UPP | 56076P | 56076-1760 | 1 | ||
| PATTERN,LWR COWL.,LH,LWR | 56076Q | 56076-1761 | 1 | ||
| PATTERN,LWR COWL.,RH,UPP | 56076R | 56076-1762 | 1 | ||
| PATTERN,LWR COWL.,RH,LWR | 56076S | 56076-1763 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
