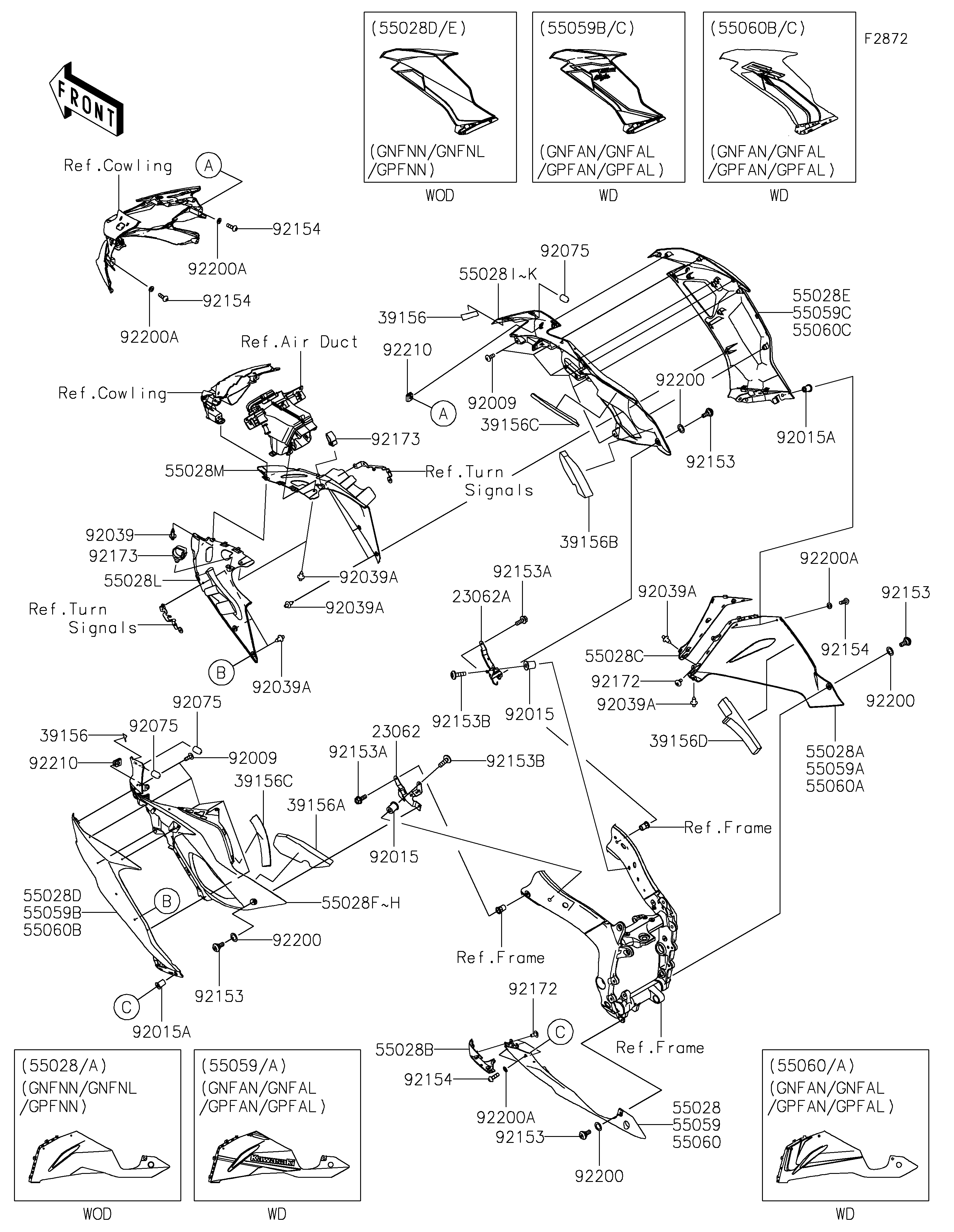

2022 Ninja ZX-6R ABS - Cowling Lowers

DOWNLOAD PDF
SELECT A NEW PART
23062
23062
23062A
23062A
39156
39156
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156C
39156C
39156D
39156D
55028
55028
55028A
55028A
55028B
55028B
55028C
55028C
55028D
55028D
55028E
55028E
55028F
55028F
55028G
55028G
55028H
55028H
55028I
55028I
55028J
55028J
55028K
55028K
55028L
55028L
55028M
55028M
55059
55059
55059A
55059A
55059B
55059B
55059C
55059C
55060
55060
55060A
55060A
55060B
55060B
55060C
55060C
92009
92009
92009
92009
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92075
92075
92075
92075
92075
92075
92153
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92154
92154
92154
92154
92154
92154
92154
92154
92172
92172
92172
92172
92173
92173
92173
92173
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-COMP,SIDE COWLING,LH 23062 23062-1159 1
BRACKET-COMP,SIDE COWLING,RH 23062A 23062-1160 1
PAD,10X30X0.2 39156 39156-0980 2
PAD,SIDE COWLING,RR,LH 39156A 39156-2412 1
PAD,SIDE COWLING,RR,RH 39156B 39156-2413 1
PAD,220X30X10 39156C 39156-2414 2
PAD,LWR COWLING,RH 39156D 39156-2425 1
COWLING,LWR,LH,M.M.T.BLUE 55028 55028-0450-68M 1
COWLING,LWR,RH,M.M.T.BLUE 55028A 55028-0451-68M 1
COWLING,LWR,FR,LH 55028B 55028-0452 1
COWLING,LWR,FR,RH 55028C 55028-0453 1
COWLING,SIDE,LH,FR,M.M.T.BLUE 55028D 55028-0669-68M 1
COWLING,SIDE,RH,FR,M.M.T.BLUE 55028E 55028-0670-68M 1
COWLING,SIDE,LH,RR,M.D.BLACK 55028F 55028-0671-17K 1
COWLING,SIDE,LH,RR,M.M.G.GRAY 55028G 55028-0671-68P 1
COWLING,SIDE,LH,RR,EBONY 55028H 55028-0671-H8 1
COWLING,SIDE,RH,RR,M.D.BLACK 55028I 55028-0672-17K 1
COWLING,SIDE,RH,RR,M.M.G.GRAY 55028J 55028-0672-68P 1
COWLING,SIDE,RH,RR,EBONY 55028K 55028-0672-H8 1
COWLING,FR,LH 55028L 55028-0677 1
COWLING,FR,RH 55028M 55028-0678 1
COWLING,LWR,LH,P.B.WHITE 55059 55059-5285-54X 1
COWLING,LWR,RH,P.B.WHITE 55059A 55059-5286-54X 1
COWLING,SIDE,LH,FR,EBONY 55059B 55059-5291-H8 1
COWLING,SIDE,RH,FR,EBONY 55059C 55059-5292-H8 1
COWLING,LWR,LH,M.D.BLACK 55060 55060-5069-17K 1
COWLING,LWR,RH,M.D.BLACK 55060A 55060-5070-17K 1
COWLING,SIDE,LH,FR,M.M.G.GRAY 55060B 55060-5071-68P 1
COWLING,SIDE,RH,FR,M.M.G.GRAY 55060C 55060-5072-68P 1
SCREW,TAPPING,5X14 92009 92009-1197 11
NUT 92015 92015-1700 2
NUT,WELL,5MM 92015A 92015-1757 4
RIVET 92039 92039-0051 1
RIVET 92039A 92039-0068 10
DAMPER 92075 92075-1964 4
BOLT,SOCKET,6MM 92153 92153-0489 4
BOLT,FLANGED,6X16 92153A 92153-0713 2
BOLT,SOCKET,6X22 92153B 92153-1356 2
BOLT,SOCKET,5X16 92154 92154-0209 6
SCREW,TAPPING,5X10 92172 92172-0262 6
CLAMP,HOLDER CLIP 92173 92173-0868 2
WASHER,10.4X15.9X0.5 92200 92200-0157 4
WASHER,5.2X10X1.0 92200A 92200-1820 6
NUT 92210 92210-0571 2
