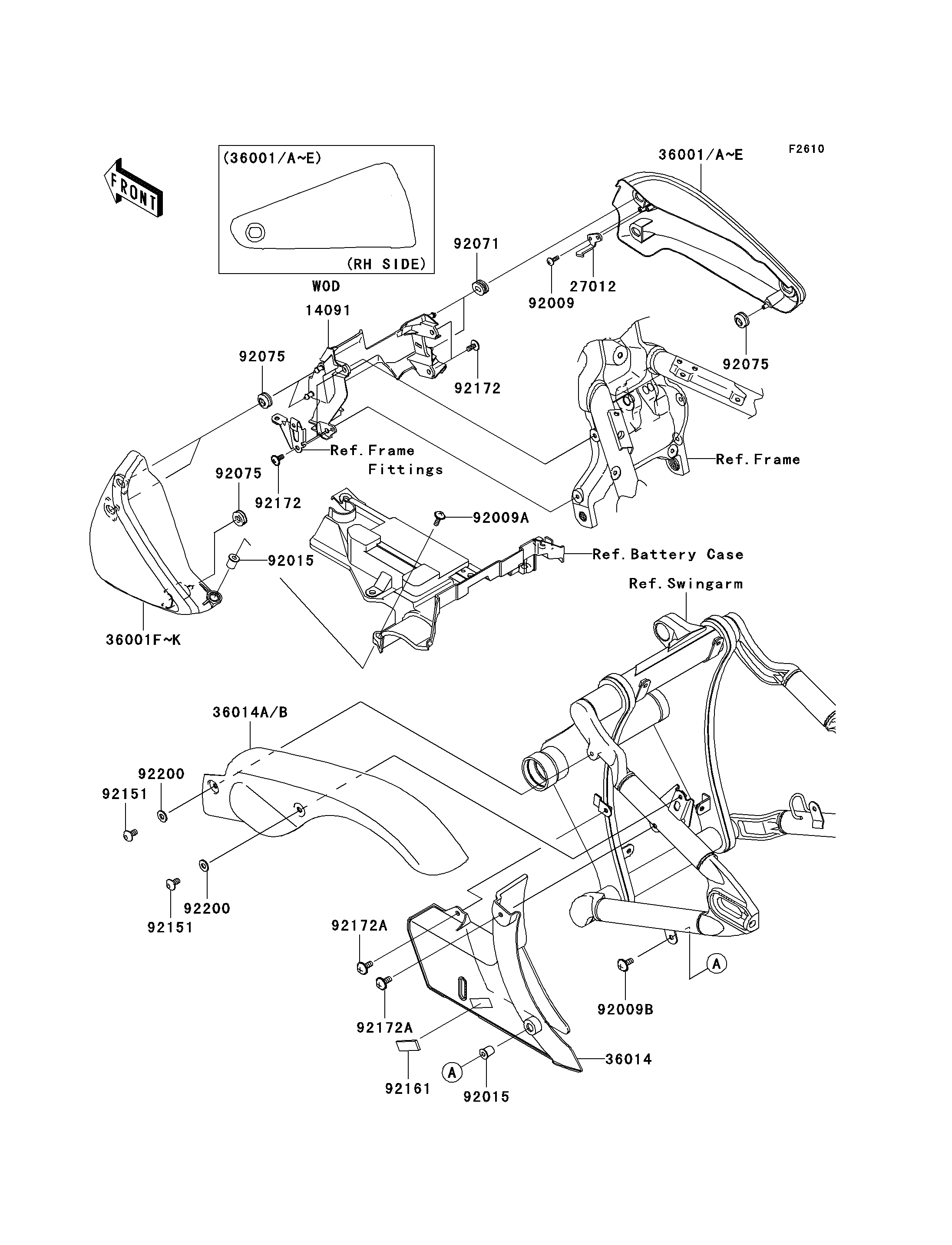

2004 Vulcan 2000 - Side Covers/Chain Cover
14091
27012
36001A
36001B
36001C
36001G
36001H
36001I
36014
36014A
92009
92009A
92009B
92015
92015
92071
92075
92075
92075
92151
92151
92161
92172
92172
92172A
92172A
92200
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
COVER,SIDE COVER,CNT | 14091 | 14091-0237 | 1 | ||
HOOK,SIDE COVER,RH | 27012 | 27012-0025 | 1 | ||
COVER-SIDE,RH,M.D.PURPLE | 36001A | 36001-0031-664 | 1 | ||
COVER-SIDE,RH,M.M.RED | 36001B | 36001-0031-665 | 1 | ||
COVER-SIDE,RH,P.G.BLUE | 36001C | 36001-0031-666 | 1 | ||
COVER-SIDE,LH,M.D.PURPLE | 36001G | 36001-0035-664 | 1 | ||
COVER-SIDE,LH,M.M.RED | 36001H | 36001-0035-665 | 1 | ||
COVER-SIDE,LH,P.G.BLUE | 36001I | 36001-0035-666 | 1 | ||
CASE-CHAIN,LWR | 36014 | 36014-0014 | 1 | ||
CASE-CHAIN,UPP | 36014A | 36014-0015 | 1 | ||
SCREW,TAPPING,4X12,BLACK | 92009 | 92009-1142 | 2 | ||
SCREW,6X25 | 92009A | 92009-1465 | 1 | ||
SCREW,6X14 | 92009B | 92009-1662 | 1 | ||
NUT | 92015 | 92015-1700 | 2 | ||
GROMMET | 92071 | 92071-0011 | 2 | ||
DAMPER | 92075 | 92075-1067 | 4 | ||
BOLT,SOCKET,6X12 | 92151 | 92151-1940 | 2 | ||
DAMPER | 92161 | 92161-0124 | 1 | ||
SCREW,6X14 | 92172 | 92172-0004 | 4 | ||
SCREW,6X14 | 92172A | 92172-0140 | 2 | ||
WASHER,6.5X14.5X1.5 | 92200 | 92200-3775 | 2 |
