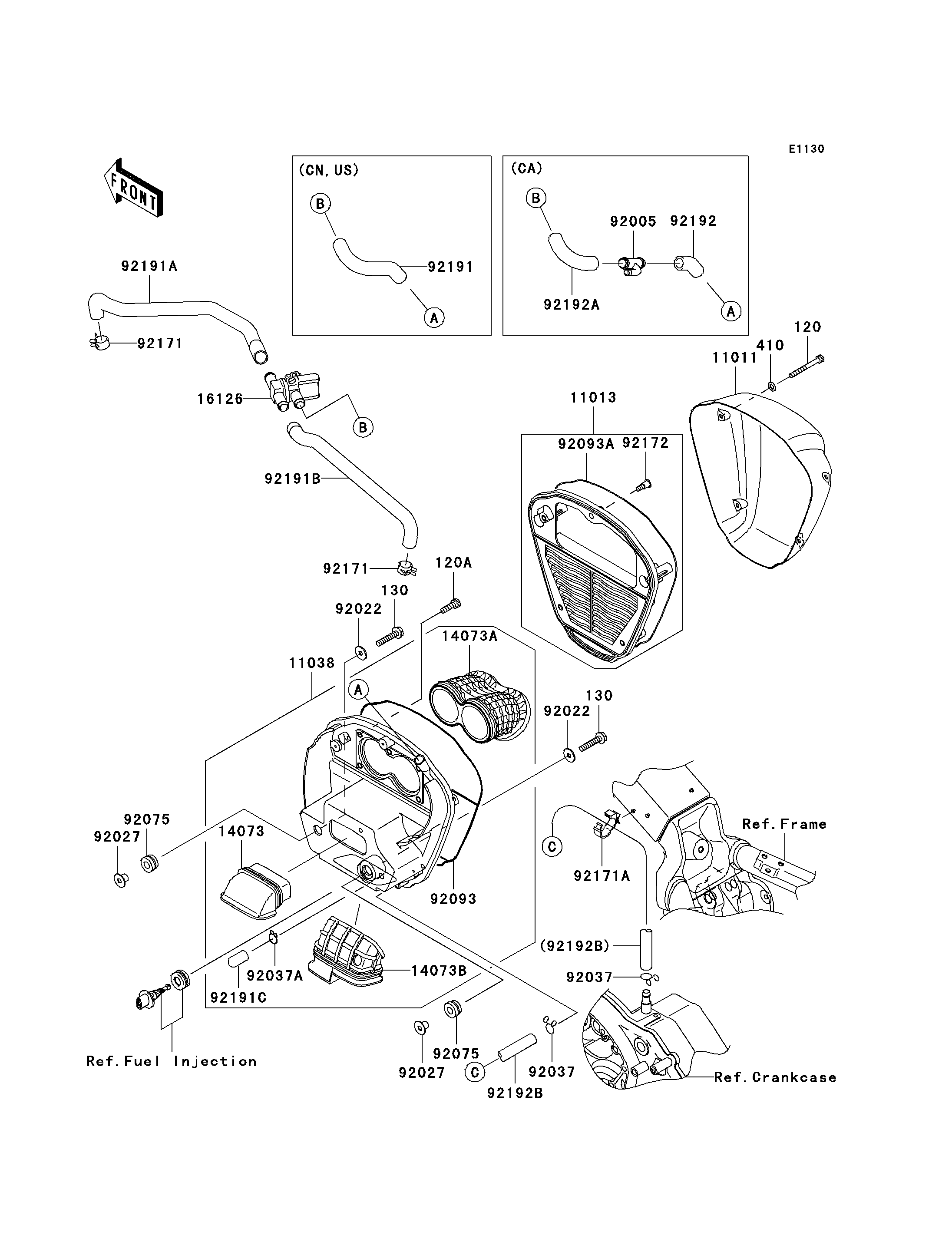

2006 Vulcan 2000 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
120
120A
130
130
410
11011
11013
11038
14073
14073A
14073B
16126
92022
92022
92027
92027
92037
92037
92037A
92075
92075
92093
92093A
92171
92171
92171A
92172
92191A
92191B
92191C
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X45 120 120R0545 4
BOLT-SOCKET,6X18 120A 120W0618 5
BOLT-FLANGED,6X30 130 130H0630 2
W-PLAIN-S,5MM 410 410S0500 4
CASE-AIR FILTER,COVER 11011 11011-0061 1
ELEMENT-AIR FILTER 11013 11013-0002 1
CASE-ASSY-AIR FILTER 11038 11038-0003 1
DUCT,INTAKE 14073 14073-0007 1
DUCT,THROTTLE 14073A 14073-0008 1
DUCT,INTAKE 14073B 14073-0047 1
VALVE,AIR SWITING 16126 16126-1437 1
WASHER,6.5X20X1.6 92022 92022-1557 2
COLLAR,L=12 92027 92027-1062 2
CLAMP 92037 92037-1468 2
CLAMP,14.5MM 92037A 92037-1900 1
DAMPER,RUBBER 92075 92075-1123 2
SEAL 92093 92093-0004 1
SEAL 92093A 92093-0005 1
CLAMP 92171 92171-0332 2
CLAMP,DIA=15 92171A 92171-1424 1
SCREW,5X16.5 92172 92172-0091 1
TUBE,ACV-FR HEAD 92191A 92191-0012 1
TUBE,ACV-RR HEAD 92191B 92191-0013 1
TUBE 92191C 92191-1704 1
TUBE,9X15X800 92192B 92192-0135 1
FITTING 92005 92005-0006 1 CA
TUBE,AIR CLEANER-ACV 92191 92191-0011 1 CNUS
TUBE,AIR CLEANER-FITTING 92192 92192-0016 1 CA
TUBE,FITTING-ACV 92192A 92192-0017 1 CA
