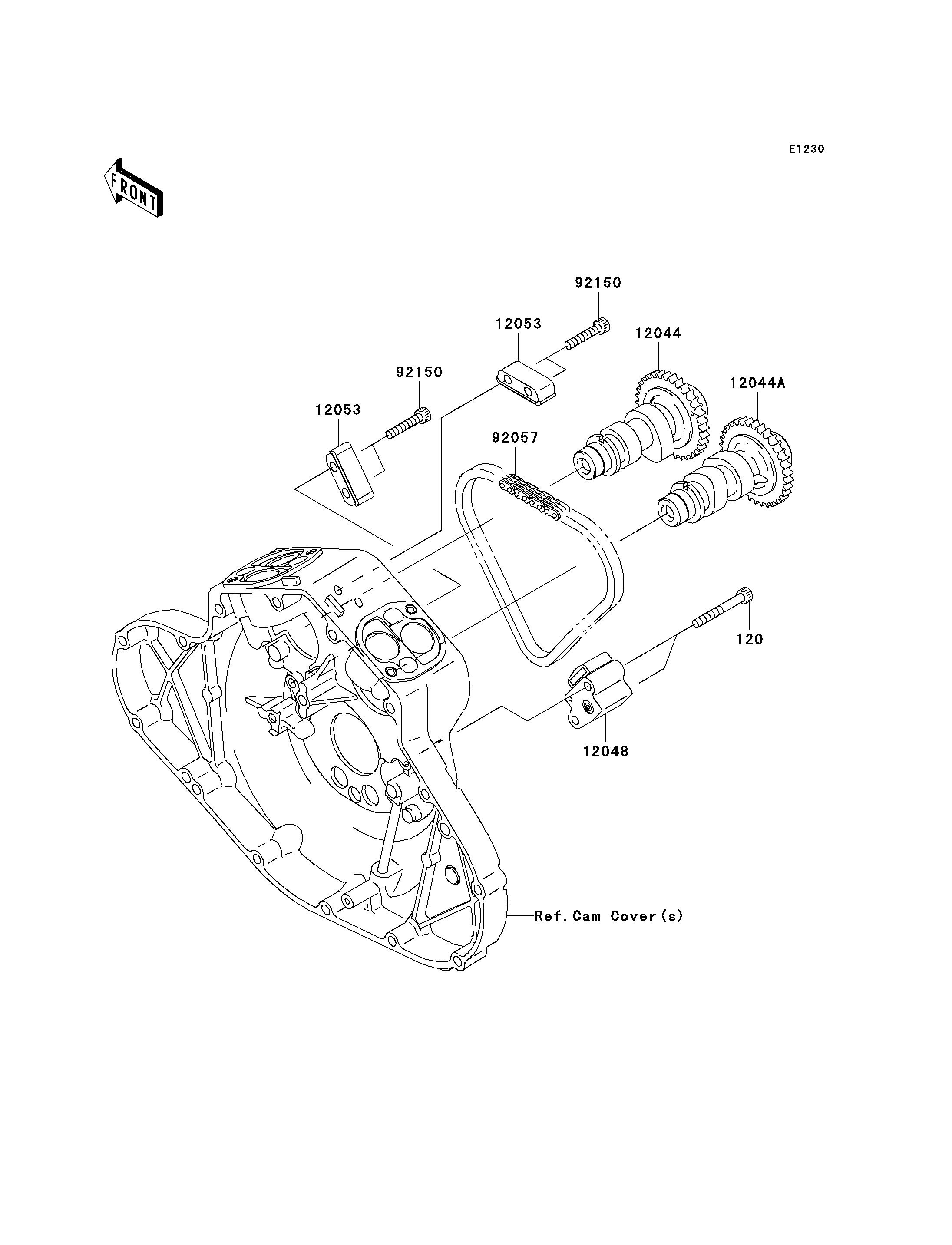

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X45 120 120P0645 2
CAMSHAFT-VALVE,FR 12044 12044-0005 1
CAMSHAFT-VALVE,RR 12044A 12044-0006 1
TENSIONER-ASSY,CAM CHAIN 12048 12048-0004 1
GUIDE-CHAIN 12053 12053-0002 2
CHAIN,CAM,98XRH2015-70M 92057 92057-0026 1
BOLT,SOCKET,6X30 92150 92150-1433 4
