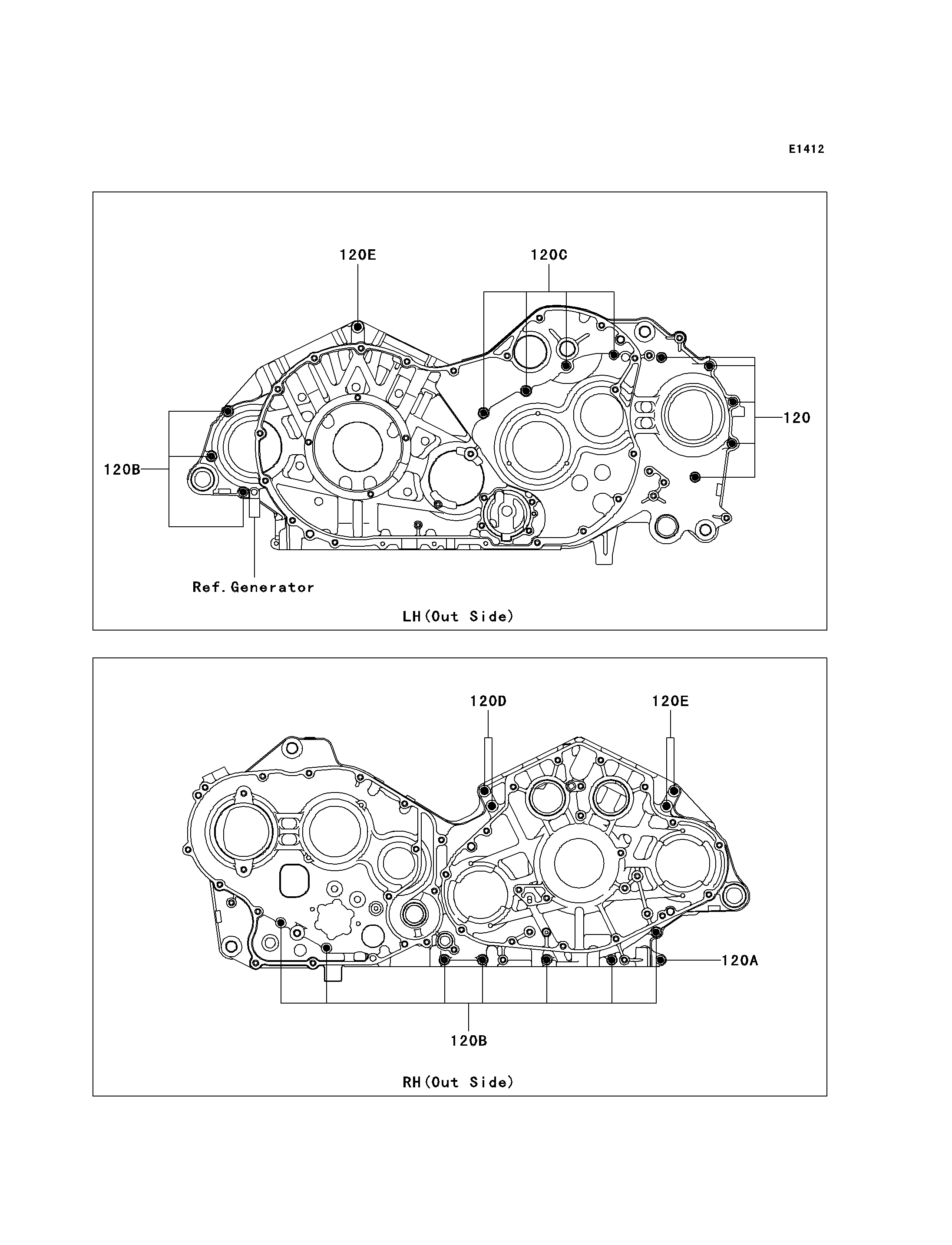

120
120A
120B
120B
120C
120D
120E
120E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X120 120 120R06120 5
BOLT-SOCKET,6X30 120A 120R0630 1
BOLT-SOCKET,6X75 120B 120R0675 10
BOLT-SOCKET,6X95 120C 120R0695 4
BOLT-SOCKET,8X85 120D 120W0885 2
BOLT-SOCKET,8X95 120E 120W0895 3
