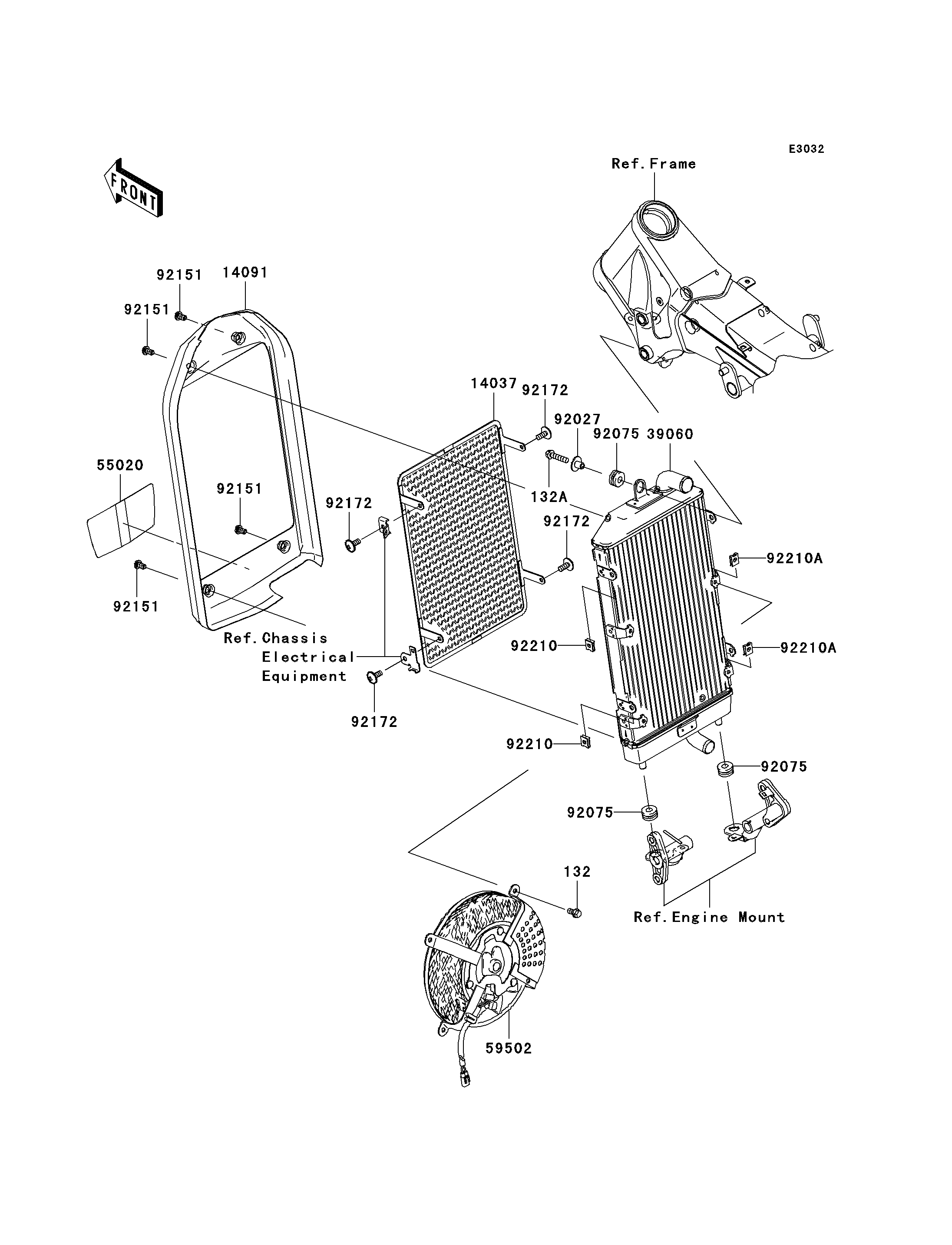

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
132A
14037
14091
39060
55020
59502
92027
92075
92075
92075
92151
92151
92151
92151
92172
92172
92172
92172
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X10 | 132 | 132J0610 | 4 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132L0620 | 1 | ||
| SCREEN | 14037 | 14037-0005 | 1 | ||
| COVER | 14091 | 14091-0356 | 1 | ||
| RADIATOR | 39060 | 39060-0018 | 1 | ||
| GUARD | 55020 | 55020-0100 | 1 | ||
| FAN-ASSY | 59502 | 59502-0005 | 1 | ||
| COLLAR,L=13.1,BLACK | 92027 | 92027-1450 | 1 | ||
| DAMPER | 92075 | 92075-1690 | 3 | ||
| BOLT,6X10 | 92151 | 92151-1809 | 4 | ||
| SCREW,6X14 | 92172 | 92172-0004 | 4 | ||
| NUT | 92210 | 92210-1125 | 4 | ||
| NUT | 92210A | 92210-1323 | 4 |
