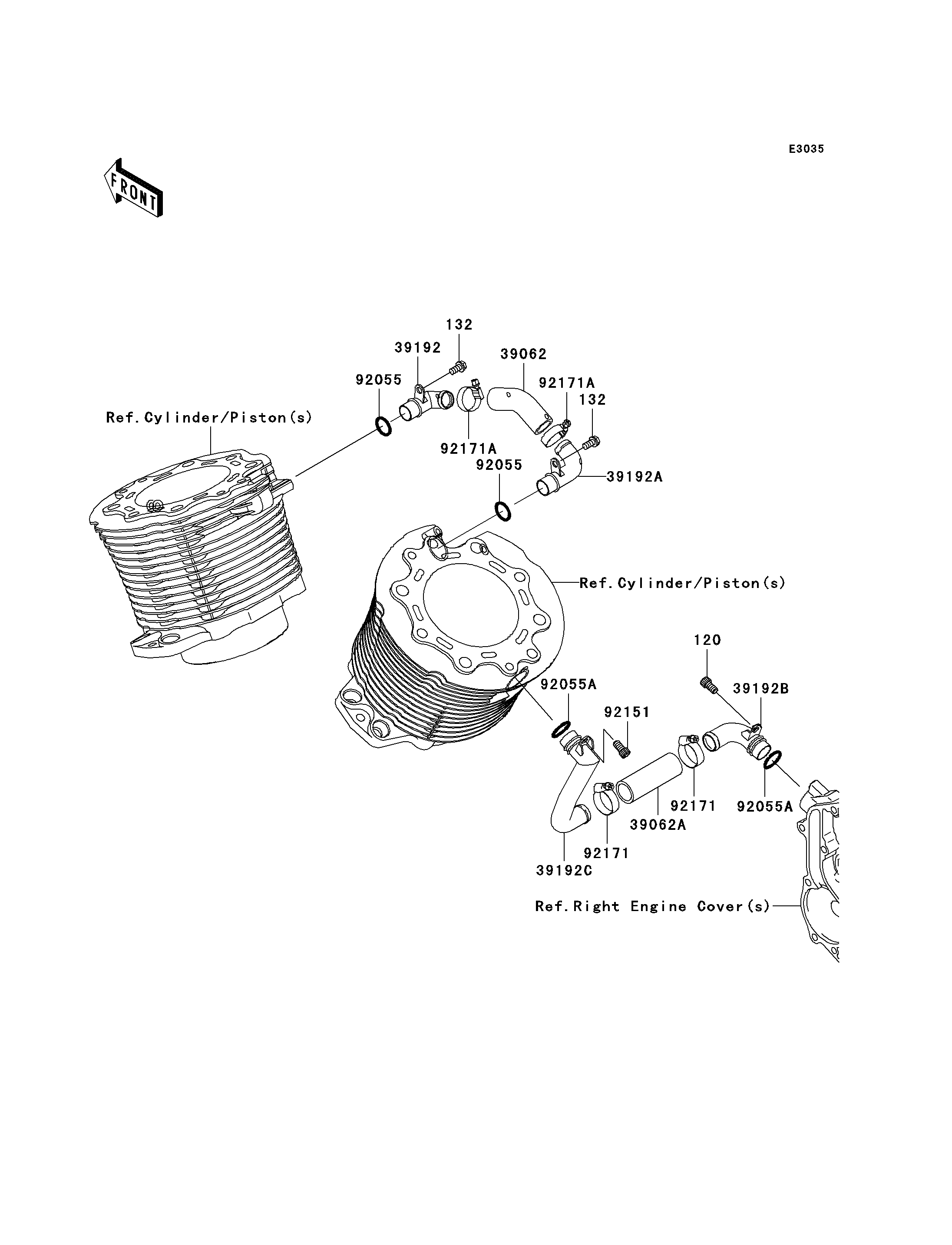

Parts Diagrams |
120
132
132
39062
39062A
39192
39192A
39192B
39192C
92055
92055
92055A
92055A
92151
92171
92171
92171A
92171A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X12 | 120 | 120R0612 | 1 | ||
| BOLT-FLANGED-SMALL,6X12 | 132 | 132L0612 | 2 | ||
| HOSE-COOLING | 39062 | 39062-0003 | 1 | ||
| HOSE-COOLING,RADIATOR-CAP | 39062A | 39062-1172 | 1 | ||
| PIPE-WATER,FR CYLINDER INLET | 39192 | 39192-0003 | 1 | ||
| PIPE-WATER,RR CYLINDER OUTLET | 39192A | 39192-0004 | 1 | ||
| PIPE-WATER,RR CYLINDER | 39192B | 39192-0005 | 1 | ||
| PIPE-WATER,RR CYLINDER INLET | 39192C | 39192-0006 | 1 | ||
| RING-O,16.8X2.4 | 92055 | 92055-1258 | 2 | ||
| RING-O,18.8X2.4 | 92055A | 92055-1308 | 2 | ||
| BOLT,6X12 | 92151 | 92151-3724 | 1 | ||
| CLAMP | 92171 | 92171-0337 | 2 | ||
| CLAMP | 92171A | 92171-0338 | 2 |
