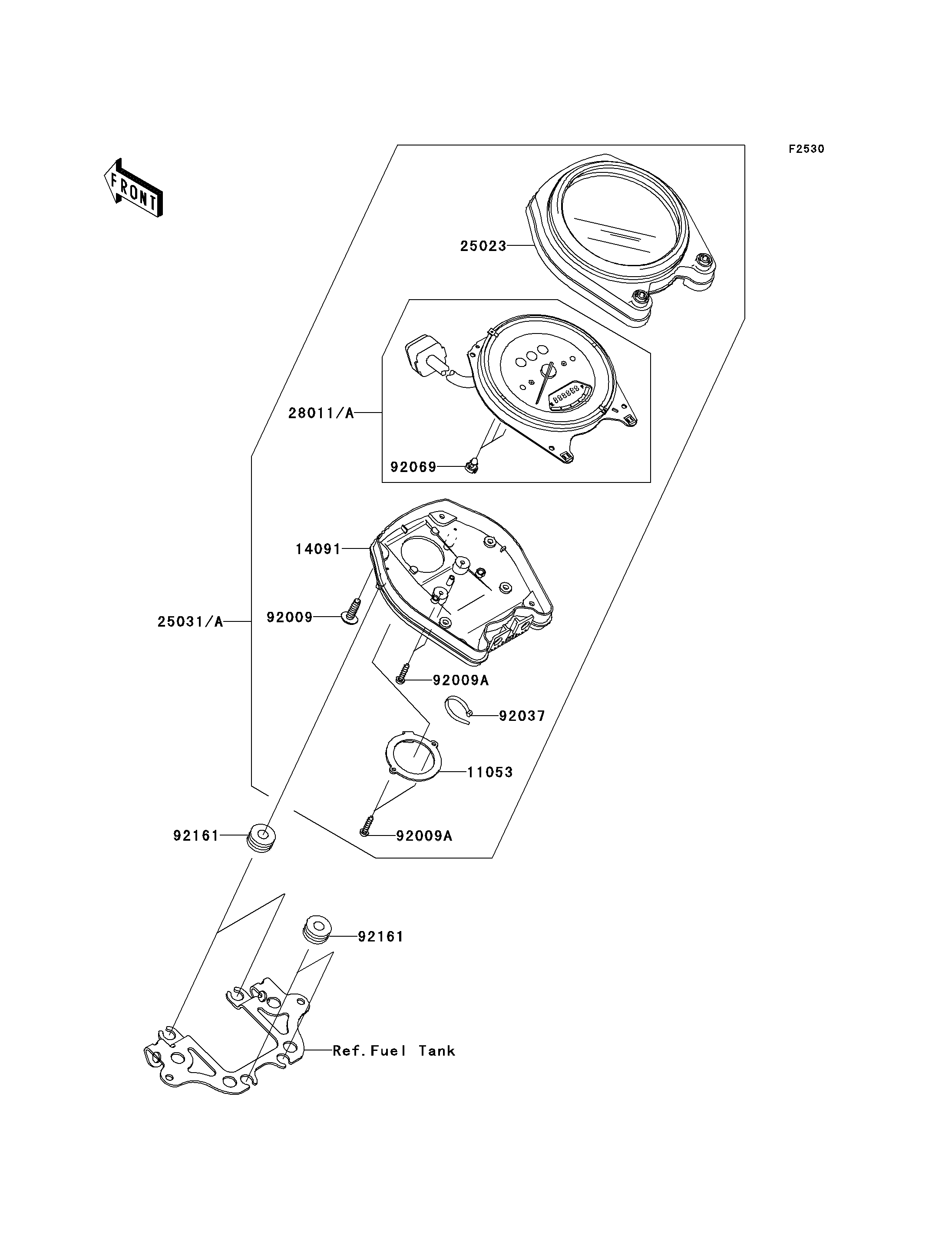

11053
14091
25023
92009
92009A
92009A
92037
92069
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER 11053 11053-0022 1
COVER,METER,LWR 14091 14091-0009 1
COVER-METER CASE,UPP 25023 25023-0002 1
SCREW,TAPPING,4X16 92009 92009-1163 4
SCREW,TAPPING,3X12 92009A 92009-1255 4
CLAMP 92037 92037-1173 1
BULB,T3.4,12V1.1W 92069 92069-1110 3
DAMPER 92161 92161-0056 4
METER-ASSY,MPH 25031 25031-0001 1 CAUS
METER-ASSY,KPH 25031A 25031-0048 1 CN
METER,SPEED,MPH 28011 28011-0005 1 CAUS
METER,SPEED,KPH 28011A 28011-0015 1 CN
