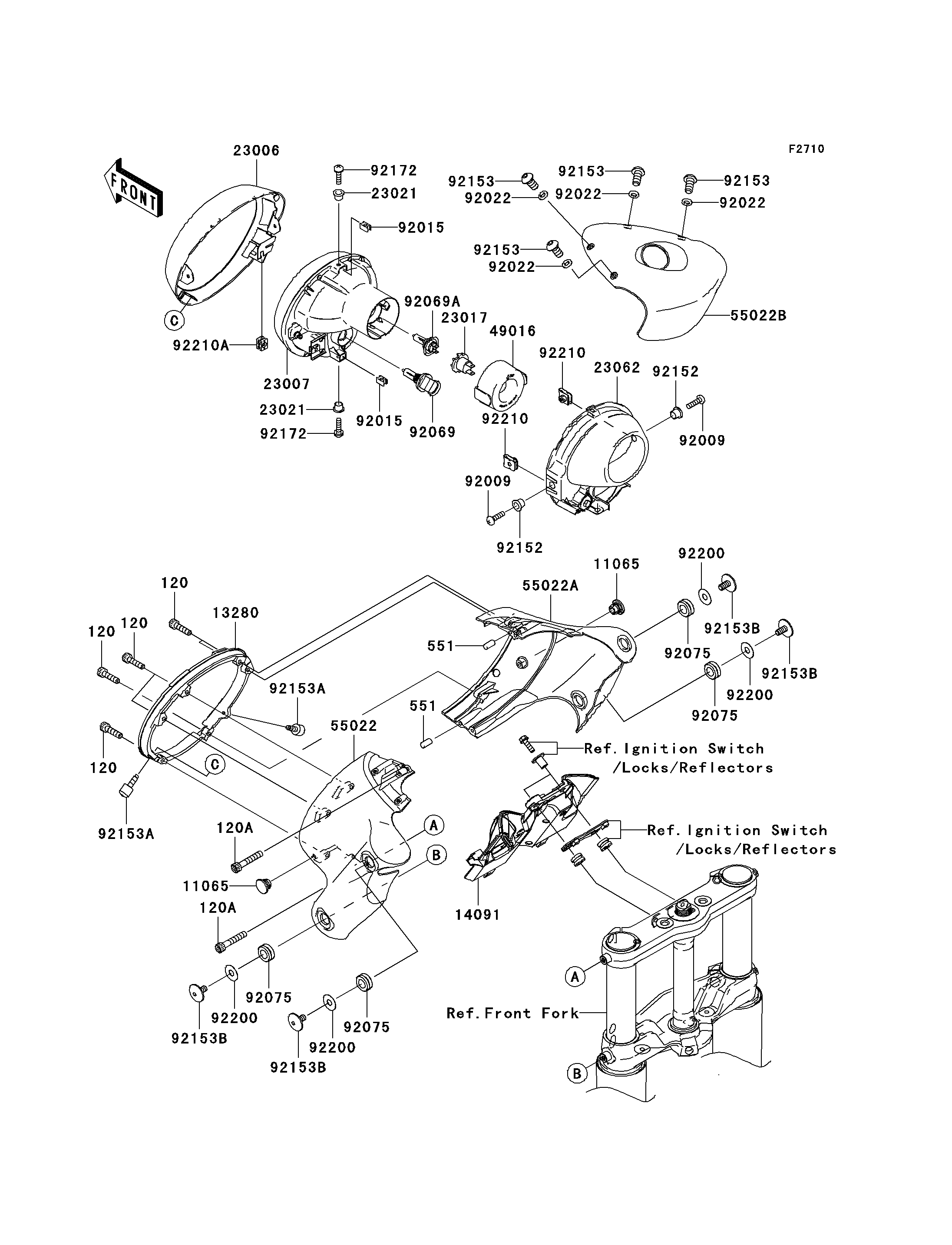

2006 Vulcan 2000 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
120
120
120A
120A
551
551
11065
11065
13280
14091
23006
23007
23017
23021
23021
23062
49016
55022
55022A
55022B
92009
92009
92015
92015
92022
92022
92022
92022
92069
92069A
92075
92075
92075
92075
92152
92152
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92172
92172
92200
92200
92200
92200
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X22 120 120S0622 6
BOLT-SOCKET,6X35 120A 120W0635 2
PIN-DOWEL,6X12 551 551A0612 2
CAP 11065 11065-0054 2
HOLDER,HEAD LAMP 13280 13280-0021 1
COVER,HEAD LAMP 14091 14091-0241 1
RIM-LAMP 23006 23006-0003 1
LENS-COMP,HEAD LAMP 23007 23007-0028 1
SOCKET,HEAD LAMP 23017 23017-1067 1
WASHER 23021 23021-010 2
BRACKET-COMP,HEAD LAMP 23062 23062-0017 1
COVER-SEAL,SOCKET 49016 49016-1203 1
COVER-HEAD LAMP,LH 55022 55022-0012 1
COVER-HEAD LAMP,RH 55022A 55022-0013 1
COVER-HEAD LAMP,UPP 55022B 55022-0015 1
SCREW,5X16 92009 92009-1879 2
NUT,5MM 92015 92015-1354 2
WASHER,6.2X11X1.5 92022 92022-183 4
BULB,12V 65W,H9 92069 92069-0007 1
BULB,12V 55W,H7 92069A 92069-1126 1
DAMPER 92075 92075-104 4
COLLAR 92152 92152-0161 2
BOLT,SOCKET,6X16 92153 92153-0404 4
BOLT,SOCKET,5X16 92153A 92153-0624 2
BOLT,SOCKET,8X16 92153B 92153-0709 4
SCREW,5X16 92172 92172-0142 2
WASHER,8.8X23.5X0.5 92200 92200-0136 4
NUT,5MM 92210 92210-0128 2
NUT 92210A 92210-0129 1
