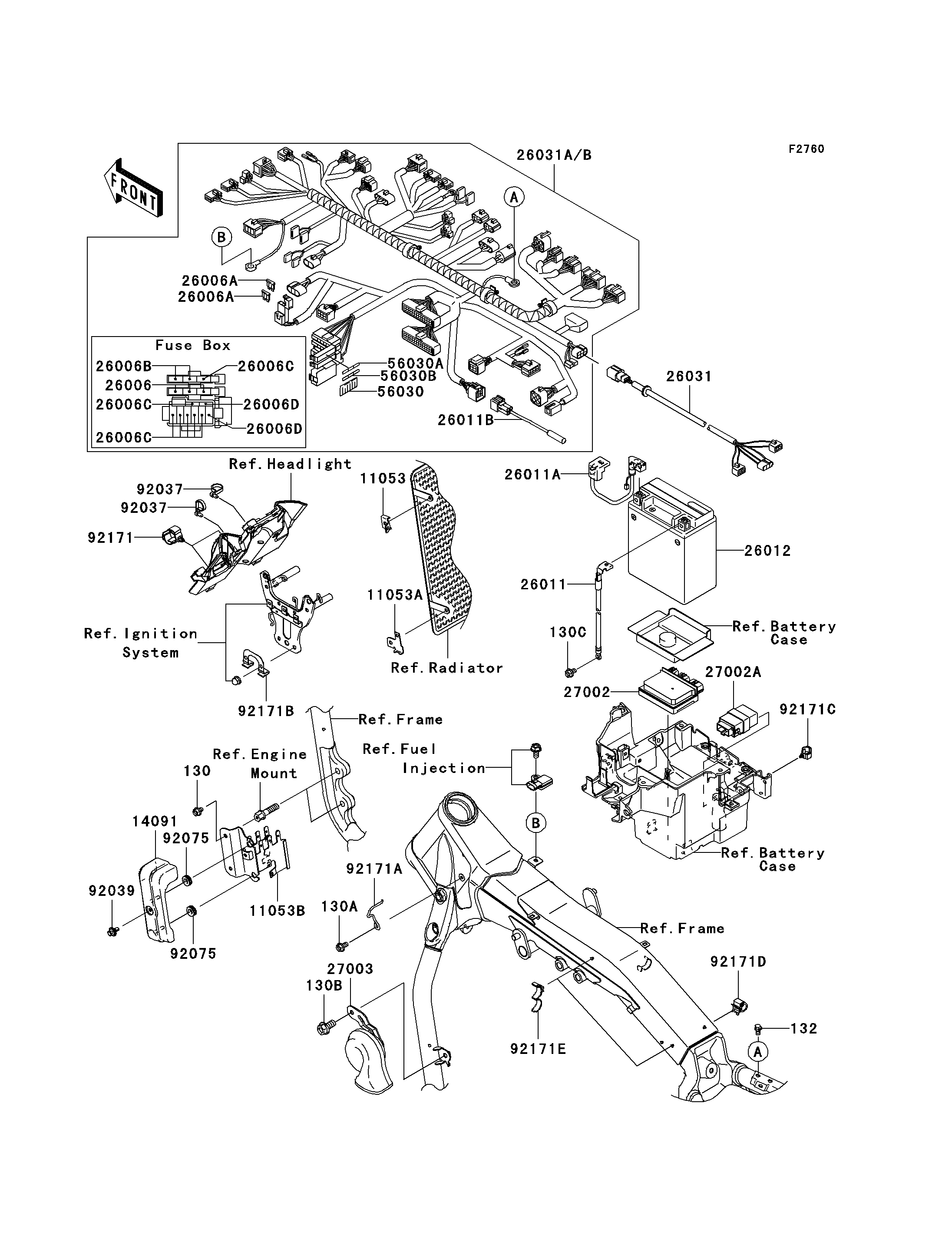

2006 Vulcan 2000 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
130C
132
11053
11053A
11053B
14091
26006
26006A
26006A
26006B
26006C
26006C
26006C
26006D
26006D
26011
26011A
26011B
26012
26031
27002
27002A
27003
56030
56030A
56030B
92037
92037
92039
92075
92075
92171
92171A
92171B
92171C
92171D
92171E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130J0608 2
BOLT-FLANGED,6X12 130A 130J0612 1
BOLT-FLANGED,8X16 130B 130L0816 1
BOLT-FLANGED,6X10 130C 130V0610 1
BOLT-FLANGED-SMALL,6X10 132 132L0610 1
BRACKET,RADIATOR,UPP 11053 11053-0528 1
BRACKET,RADIATOR,LWR 11053A 11053-1624 1
BRACKET,COUPLER 11053B 11053-1655 1
COVER,ACG COUPLER 14091 14091-0417 1
FUSE,15A 26006 26006-0001 3
FUSE,30A-G 26006A 26006-1006 2
FUSE,5A 26006B 26006-1077 2
FUSE,10A 26006C 26006-1078 7
FUSE,20A 26006D 26006-1079 2
WIRE-LEAD,BATTERY(-) 26011 26011-0013 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0043 1
WIRE-LEAD,DIAGNOSIS 26011B 26011-1774 1
BATTERY,MF,FTZ16-BS,12V 18AH 26012 26012-1371 1
HARNESS,RR 26031 26031-0167 1
RELAY-ASSY 27002 27002-0007 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1113 1
HORN 27003 27003-0021 1
LABEL,FUSE BOX 56030 56030-0015 1
LABEL,FUSE BOX 56030A 56030-0017 1
LABEL,FUSE BOX 56030B 56030-0080 1
CLAMP,SPEED,L=58 92037 92037-1163 2
RIVET 92039 92039-1227 1
DAMPER 92075 92075-1629 2
CLAMP,DIA=20 92171 92171-0069 2
CLAMP,HARNESS 92171A 92171-0331 1
CLAMP,HARNESS 92171B 92171-0368 1
CLAMP,DIA=13 92171C 92171-1415 1
CLAMP,DIA=15 92171D 92171-1424 1
CLAMP,DIA=25 92171E 92171-1559 2
HARNESS,MAIN 26031A 26031-0309 1 CNUS
HARNESS,MAIN 26031B 26031-0310 1 CA
