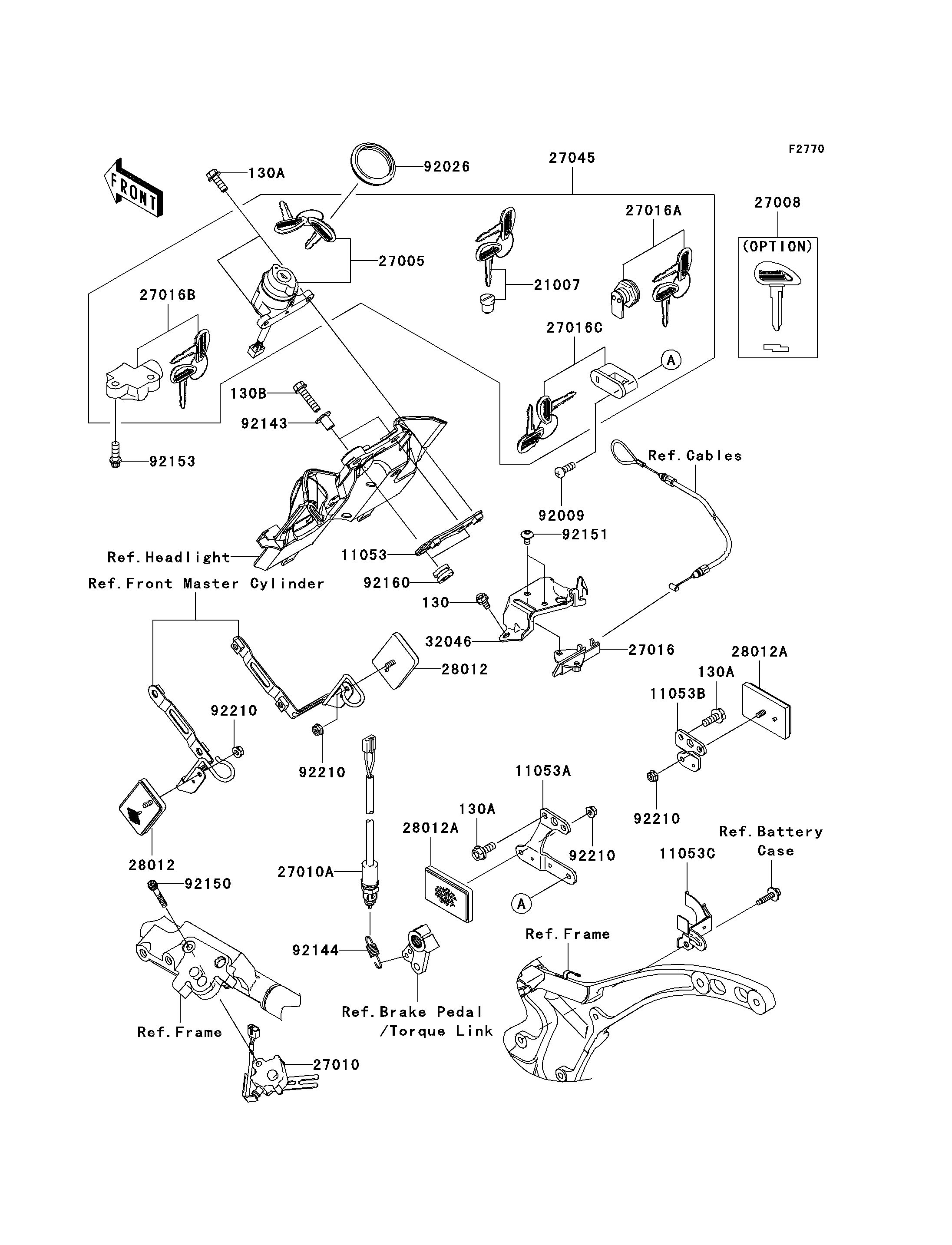

2006 Vulcan 2000 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130A
130B
11053
11053A
11053B
11053C
21007
27005
27008
27010
27010A
27016
27016A
27016B
27016C
27045
28012
28012
28012A
28012A
32046
92009
92026
92143
92144
92150
92151
92153
92160
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130L0612 2
BOLT-FLANGED,6X16 130A 130L0616 6
BOLT-FLANGED,6X25 130B 130L0625 2
BRACKET,IGNITION SWITCH 11053 11053-0218 1
BRACKET,REFLECTOR,RR,LH 11053A 11053-0222 1
BRACKET,REFLECTOR,RR,RH 11053B 11053-0223 1
BRACKET,SIDE COVER LOCK 11053C 11053-0920 1
ROTOR,LOCK,TANK CAP 21007 21007-5053 1
SWITCH-ASSY-IGNITION 27005 27005-0004 1
KEY-LOCK,BLANK 27008 27008-1211 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0011 1
SWITCH,REAR BRAKE 27010A 27010-0023 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,LID 27016A 27016-5279 1
LOCK-ASSY,STEERING 27016B 27016-5298 1
LOCK-ASSY,HELMET 27016C 27016-5311 1
SWITCH-ASSY 27045 27045-5212 1
REFLECTOR-REFLEX,FR 28012 28012-1009 2
REFLECTOR-REFLEX 28012A 28012-1088 2
BRACKET-SEAT 32046 32046-0037 1
SCREW,5X14 92009 92009-1341 1
SPACER,IGNITION SWITCH 92026 92026-0018 1
COLLAR,L=15.6 92143 92143-1041 2
SPRING,REAR BRAKE SWITCH 92144 92144-1141 1
BOLT,SOCKET,6X40 92150 92150-1958 1
BOLT,SOCKET,6X12 92151 92151-1219 2
BOLT,TORX,8X22 92153 92153-1273 2
DAMPER 92160 92160-1167 2
NUT,FLANGED,5MM 92210 92210-0007 4
