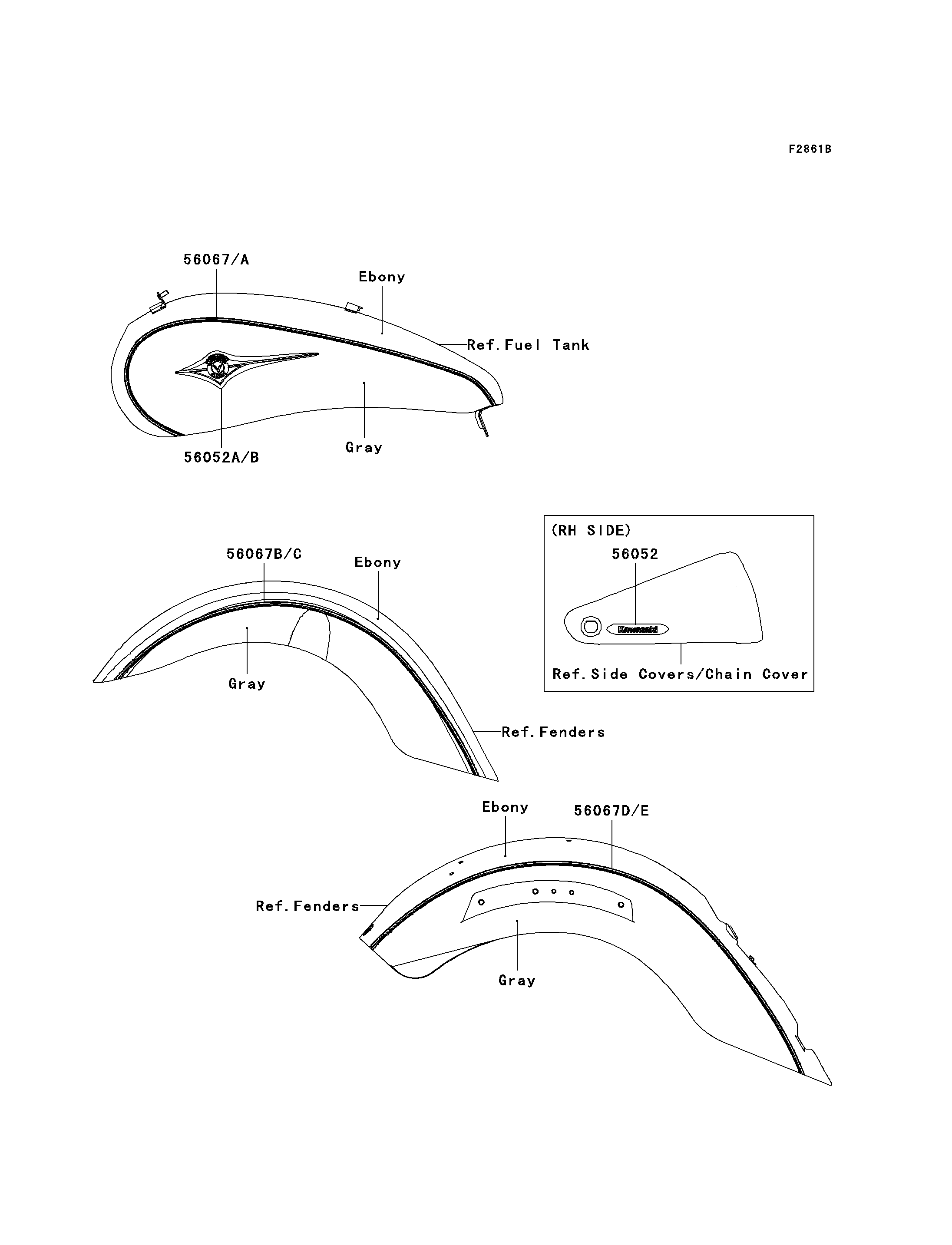

56052
56052A
56052B
56067
56067A
56067B
56067C
56067D
56067E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SIDE COVER,RH,KAWASAKI 56052 56052-0234 1
MARK,FUEL TANK,LH 56052A 56052-0277 1
MARK,FUEL TANK,RH 56052B 56052-0278 1
PATTERN,FUEL TANK,LH 56067 56067-1455 1
PATTERN,FUEL TANK,RH 56067A 56067-1456 1
PATTERN,FR FENDER,LH 56067B 56067-1457 1
PATTERN,FR FENDER,RH 56067C 56067-1458 1
PATTERN,RR FENDER,LH 56067D 56067-1459 1
PATTERN,RR FENDER,RH 56067E 56067-1460 1
