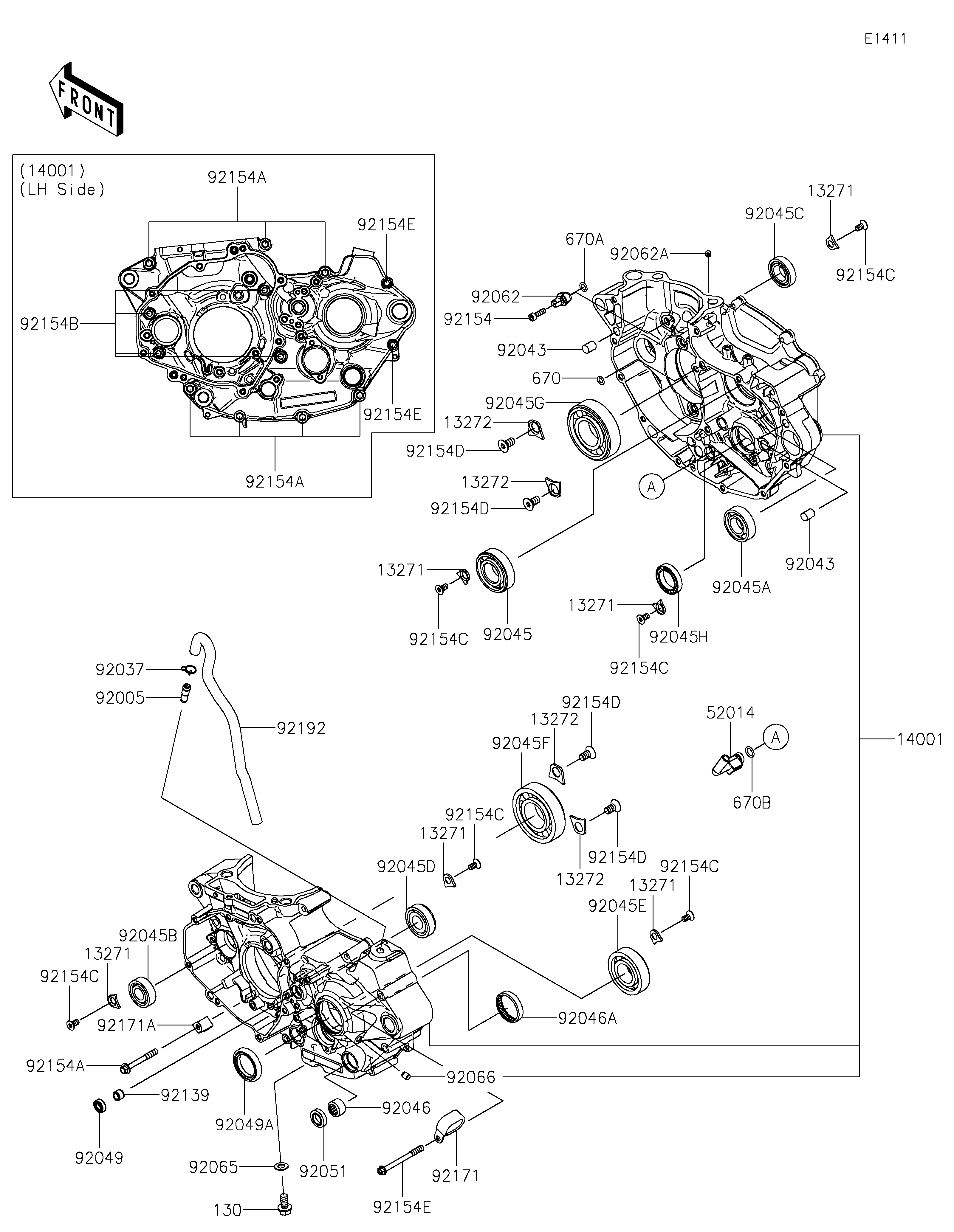

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13271
13271
13271
13271
13271
13271
13272
13272
13272
13272
14001
52014
92005
92037
92043
92043
92045
92045A
92045B
92045C
92045D
92045E
92045F
92045G
92045H
92046
92046A
92049
92049A
92051
92062
92062A
92065
92066
92139
92154
92154A
92154A
92154A
92154B
92154C
92154C
92154C
92154C
92154C
92154C
92154D
92154D
92154D
92154D
92154E
92154E
92154E
92171
92171A
92192
130
670
670A
670B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PLATE | 13271 | 13271-0345 | 6 | ||
| PLATE | 13272 | 13272-1941 | 4 | ||
| SET-CRANKCASE | 14001 | 14001-0696 | 1 | ||
| ELBOW | 52014 | 52014-0011 | 1 | ||
| FITTING | 92005 | 92005-1369 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1972 | 1 | ||
| PIN,10X14 | 92043 | 92043-1506 | 2 | ||
| BEARING-BALL,25X52X15 | 92045 | 92045-0035 | 1 | ||
| BEARING-BALL,20X42X12 | 92045A | 92045-0036 | 1 | ||
| BEARING-BALL,6202SH2C3 | 92045B | 92045-0037 | 1 | ||
| BEARING-BALL,6904C3UR5 | 92045C | 92045-0038 | 1 | ||
| BEARING-BALL,3TM-5X0391LUC3 | 92045D | 92045-0057 | 1 | ||
| BEARING-BALL | 92045E | 92045-0062 | 1 | ||
| BEARING-BALL | 92045F | 92045-0132 | 1 | ||
| BEARING-BALL,32X72X19 | 92045G | 92045-0806 | 1 | ||
| BEARING-BALL,6805JRZ | 92045H | 92045-1432 | 1 | ||
| BEARING-NEEDLE,HK1312 | 92046 | 92046-1148 | 1 | ||
| BEARING-NEEDLE,7E-HKS33X38X8 | 92046A | 92046-1221 | 1 | ||
| SEAL-OIL | 92049 | 92049-0808 | 1 | ||
| SEAL-OIL | 92049A | 92049-0809 | 1 | ||
| SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
| NOZZLE | 92062 | 92062-0035 | 1 | ||
| NOZZLE | 92062A | 92062-0049 | 1 | ||
| GASKET,8.5X16X1 | 92065 | 92065-023 | 1 | ||
| PLUG,OIL LINE,7.2X8 | 92066 | 92066-1012 | 1 | ||
| BUSHING | 92139 | 92139-0907 | 1 | ||
| BOLT,SOCKET,5X18 | 92154 | 92154-0038 | 1 | ||
| BOLT,FLANGED,6X50 | 92154A | 92154-0526 | 7 | ||
| BOLT,SOCKET,7X60 | 92154B | 92154-0527 | 4 | ||
| BOLT,TORX | 92154C | 92154-1621 | 6 | ||
| BOLT,TORX,8X16 | 92154D | 92154-1733 | 4 | ||
| BOLT,FLANGED,6X65 | 92154E | 92154-2980 | 2 | ||
| CLAMP | 92171 | 92171-0594 | 1 | ||
| CLAMP | 92171A | 92171-0761 | 1 | ||
| TUBE,BREATHER | 92192 | 92192-1886 | 1 | ||
| BOLT-FLANGED,8X16 | 130 | 130AA0816 | 1 | ||
| O RING,7MM | 670 | 670D1507 | 1 | ||
| O RING,8MM | 670A | 670D1508 | 1 | ||
| O RING,10MM | 670B | 670D1510 | 1 |
