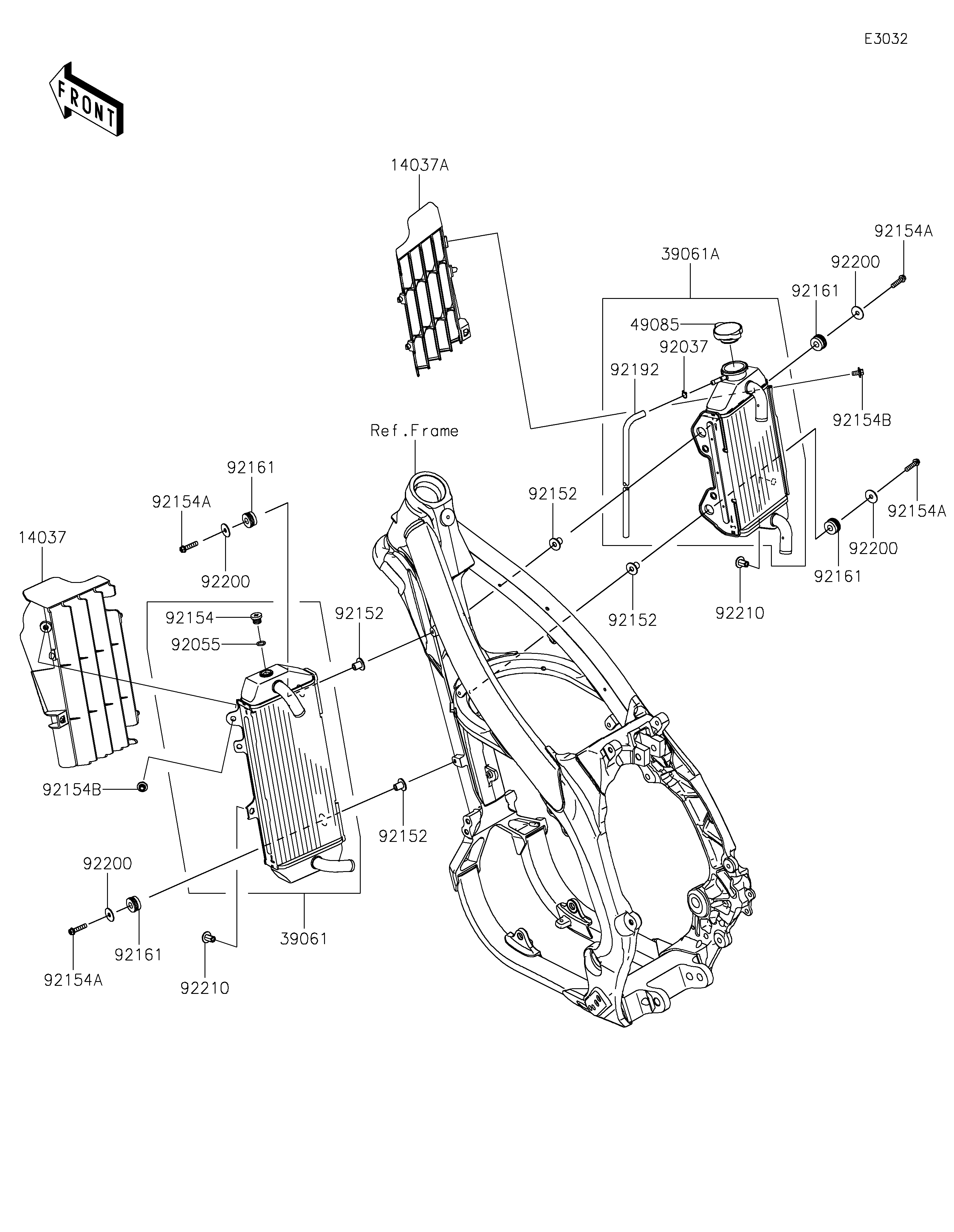

Parts Diagrams |
14037
14037A
39061
39061A
49085
92037
92055
92152
92152
92152
92152
92154
92154A
92154A
92154A
92154A
92154B
92154B
92161
92161
92161
92161
92192
92200
92200
92200
92200
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREEN,LH,EBONY | 14037 | 14037-0767-6C | 1 | ||
| SCREEN,RH,EBONY | 14037A | 14037-0768-6C | 1 | ||
| RADIATOR-ASSY,LH | 39061 | 39061-0709 | 1 | ||
| RADIATOR-ASSY,RH | 39061A | 39061-0710 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-0006 | 1 | ||
| CLAMP | 92037 | 92037-1610 | 1 | ||
| RING-O | 92055 | 92055-0866 | 1 | ||
| COLLAR | 92152 | 92152-0666 | 4 | ||
| BOLT,AIR VENT | 92154 | 92154-1738 | 1 | ||
| BOLT,FLANGED,6X25 | 92154A | 92154-2967 | 4 | ||
| BOLT,FLANGED,6X12 | 92154B | 92154-2970 | 2 | ||
| DAMPER | 92161 | 92161-1950 | 4 | ||
| TUBE,L=830 | 92192 | 92192-1490 | 1 | ||
| WASHER,6.5X22X1.2 | 92200 | 92200-2108 | 4 | ||
| NUT | 92210 | 92210-1452 | 2 |
