Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

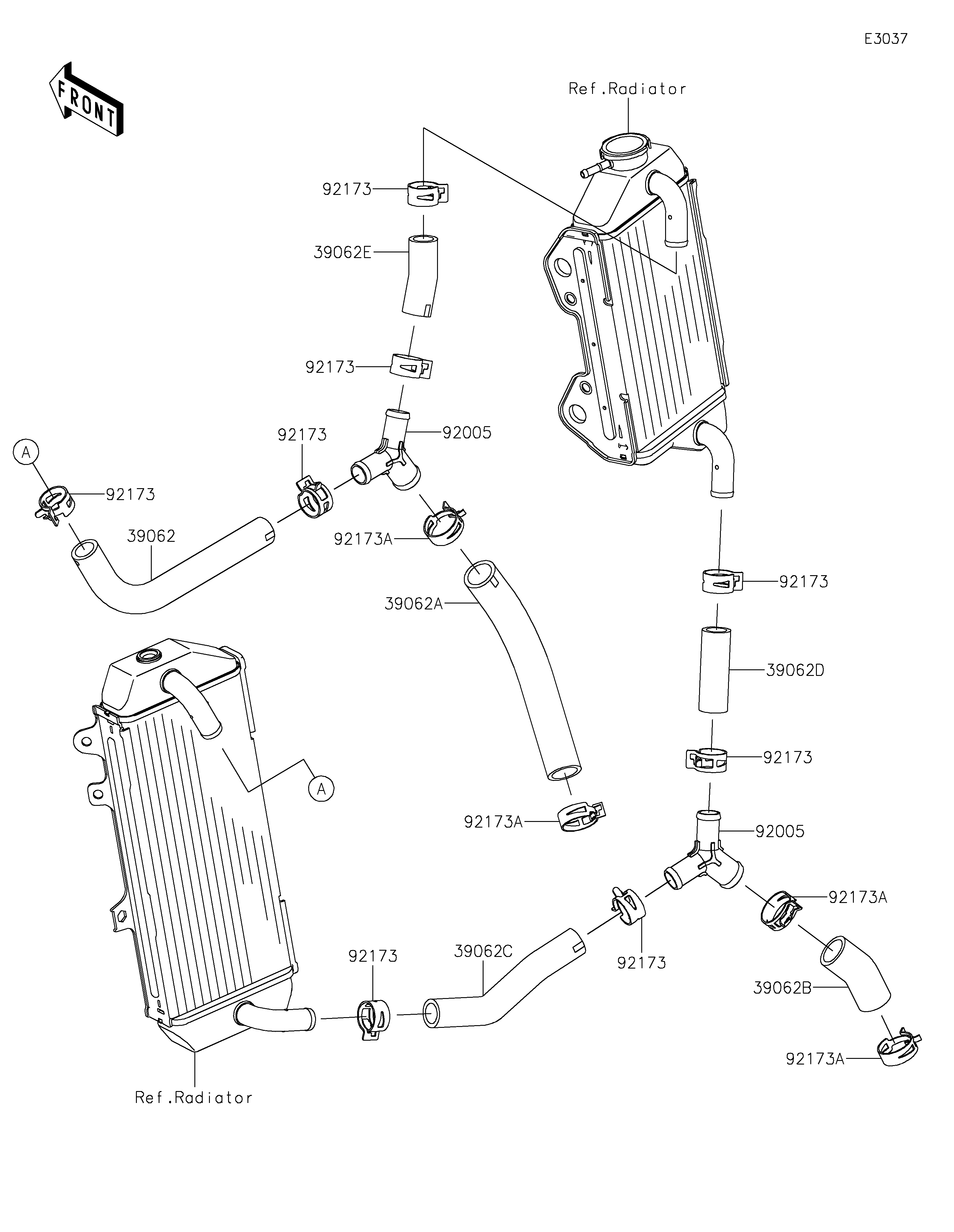

39062
39062A
39062B
39062C
39062D
39062E
92005
92005
92173
92173
92173
92173
92173
92173
92173
92173
92173A
92173A
92173A
92173A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOSE-COOLING,RAD.LH UPP-FIT. | 39062 | 39062-0707 | 1 | ||
| HOSE-COOLING,FIT.-CYLINDER | 39062A | 39062-0805 | 1 | ||
| HOSE-COOLING,FIT.-PUMP | 39062B | 39062-0806 | 1 | ||
| HOSE-COOLING,FIT.-RAD.LH LWR | 39062C | 39062-0829 | 1 | ||
| HOSE-COOLING,RAD.RH LWR-FIT. | 39062D | 39062-0841 | 1 | ||
| HOSE-COOLING,RAD.RH UPP-FIT. | 39062E | 39062-0933 | 1 | ||
| FITTING,3WAY | 92005 | 92005-0902 | 2 | ||
| CLAMP | 92173 | 92173-1417 | 8 | ||
| CLAMP | 92173A | 92173-1464 | 4 |
