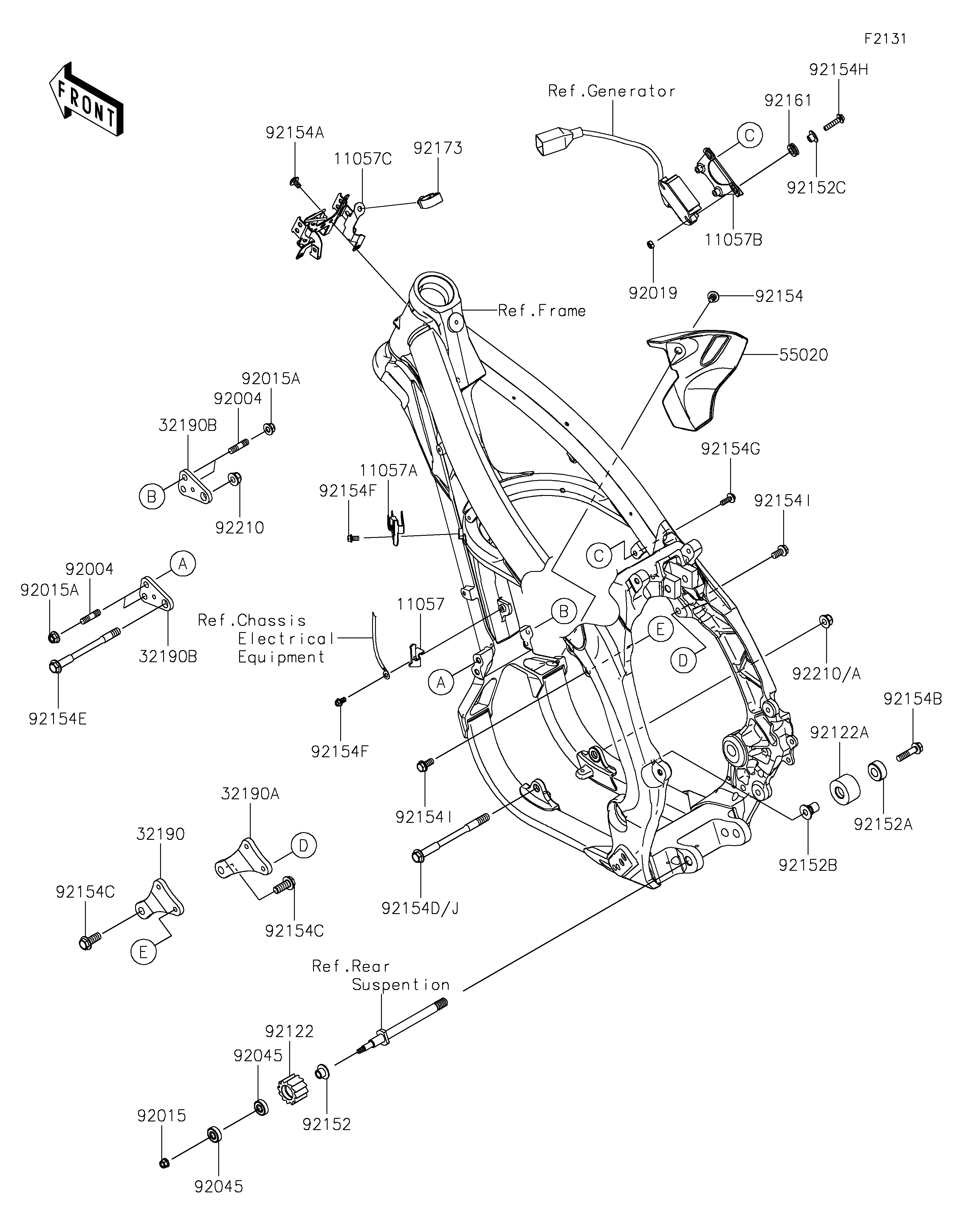

2021 KX™450 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
11057C
32190
32190A
32190B
32190B
55020
92004
92004
92015
92015A
92015A
92019
92045
92045
92122
92122A
92152
92152A
92152B
92152C
92154
92154A
92154B
92154C
92154C
92154D
92154E
92154F
92154F
92154G
92154H
92154I
92154I
92161
92173
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,VEHICLE DOWN SENSOR 11057 11057-1528 1
BRACKET,COUPLER 11057A 11057-1529 1
BRACKET,REGULATOR 11057B 11057-1531 1
BRACKET,ECU 11057C 11057-1557 1
BRACKET-ENGINE,UPP,LH 32190 32190-0771 1
BRACKET-ENGINE,UPP,RH 32190A 32190-0772 1
BRACKET-ENGINE,FR 32190B 32190-0783 2
GUARD 55020 55020-2213 1
STUD,8X18/16 92004 92004-0789 4
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
NUT,8MM 92015A 92015-1432 4
NUT,LOCK,6MM 92019 92019-008 2
BEARING-BALL,608LLU/2A 92045 92045-0060 2
ROLLER,CHAIN GUIDE 92122 92122-0016 1
ROLLER,CHAIN 92122A 92122-0042 1
COLLAR 92152 92152-0459 1
COLLAR,12.7X27.2X12 92152A 92152-0945 1
COLLAR,8.3X12.5X21.5 92152B 92152-2460 1
COLLAR,6.5X10X8.5 92152C 92152-2467 2
BOLT,FLANGED,6X9 92154 92154-0546 1
BOLT,SOCKET,6X10 92154A 92154-0774 2
BOLT,FLANGED,8X35 92154B 92154-1746 1
BOLT,FLANGED,10X25 92154C 92154-2747 2
BOLT,10X137 92154D 92154-2940 1
BOLT,10X124 92154E 92154-2941 1
BOLT,6X10 92154F 92154-2963 2
BOLT,SOCKET,6X18,AL 92154G 92154-3774 2
BOLT,SOCKET,6X27,AL 92154H 92154-3775 2
BOLT,8X17 92154I 92154-3881 4
DAMPER,10X18X6.5 92161 92161-2091 2
CLAMP 92173 92173-0861 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 2
