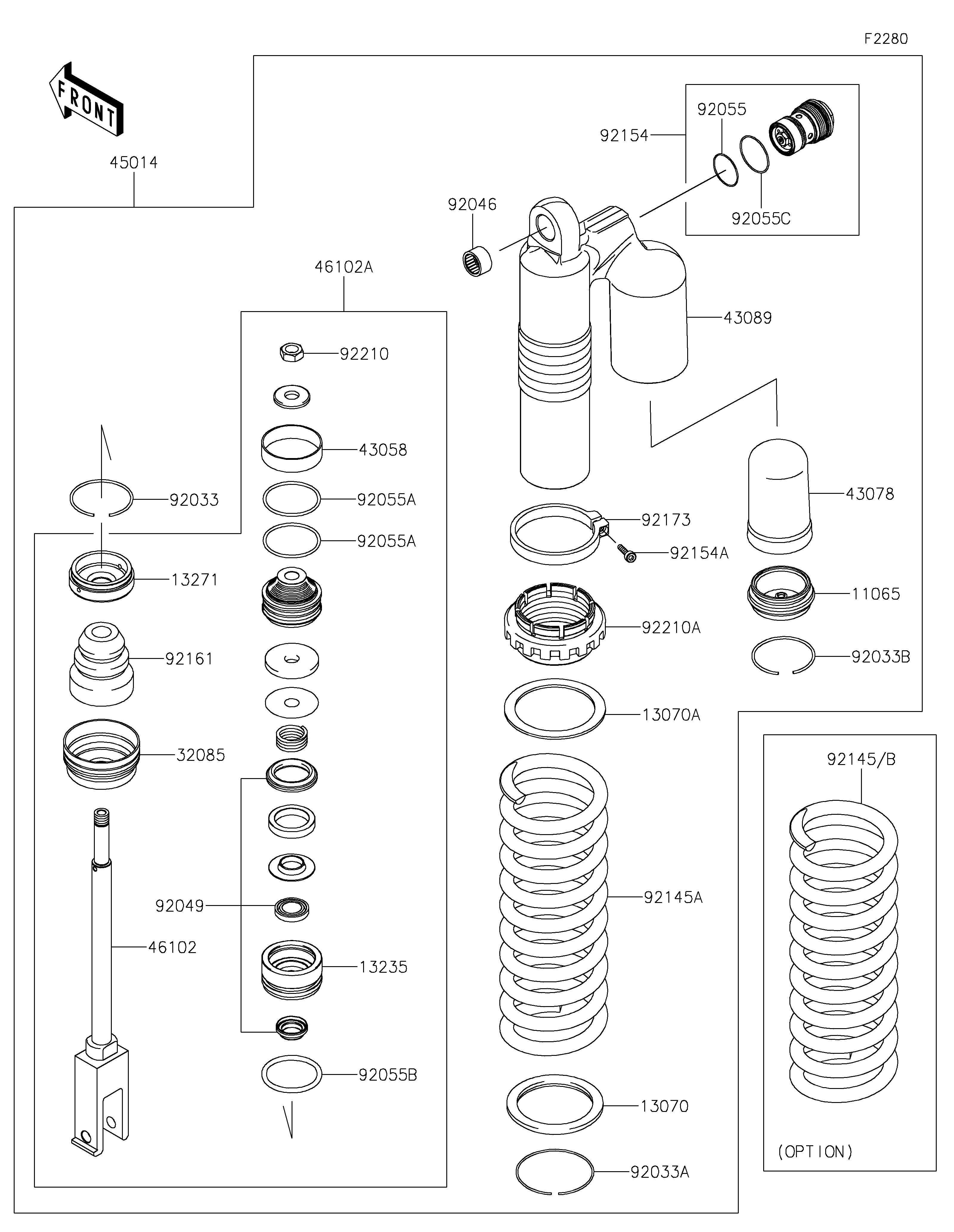

2021 KX™450 - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
11065
13070
13070A
13235
13271
32085
43058
43078
43089
45014
46102
46102A
92033
92033A
92033B
92046
92049
92055
92055A
92055A
92055B
92055C
92145
92145A
92145B
92154
92154A
92161
92173
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CHAMBER 11065 11065-1294 1
GUIDE,SPRING SEAT 13070 13070-0057 1
GUIDE 13070A 13070-0889 1
GUIDE-COMP,ROD 13235 13235-0012 1
PLATE,END 13271 13271-0858 1
STOPPER,SPRING SEAT 32085 32085-0077 1
RING,PISTON 43058 43058-0012 1
RESERVOIR 43078 43078-0599 1
CYLINDER-SHOCKABSORBER 43089 43089-0033 1
SHOCKABSORBER,BLACK+GRN 45014 45014-0612-52L 1
ROD,PISTON 46102 46102-0625 1
ROD,PISTON COMP 46102A 46102-0635 1
RING-SNAP 92033 92033-0040 1
RING-SNAP 92033A 92033-0042 1
RING-SNAP 92033B 92033-0797 1
BEARING-NEEDLE,7E-HVS16X22X12 92046 92046-1301 1
SEAL-OIL 92049 92049-0151 1
RING-O,PLUG BOLT 92055 92055-0098 1
RING-O 92055A 92055-0100 2
RING-O 92055B 92055-0101 1
RING-O 92055C 92055-0911 1
SPRING,REAR SHOCK,K=52N/MM,BLK 92145 92145-1746-10 1 (OPTION)
SPRING,REAR SHOCK,K=54N/MM,BLK 92145A 92145-1759-10 1
SPRING,REAR SHOCK,K=56N/MM,BLK 92145B 92145-1830-10 1 (OPTION)
BOLT,PLUG,G.B.GREEN 92154 92154-3809-50Y 1
BOLT 92154A 92154-3810 1
DAMPER,STOPPER 92161 92161-0329 1
CLAMP 92173 92173-1902 1
NUT,PISTON 92210 92210-0270 1
NUT 92210A 92210-1661 1
