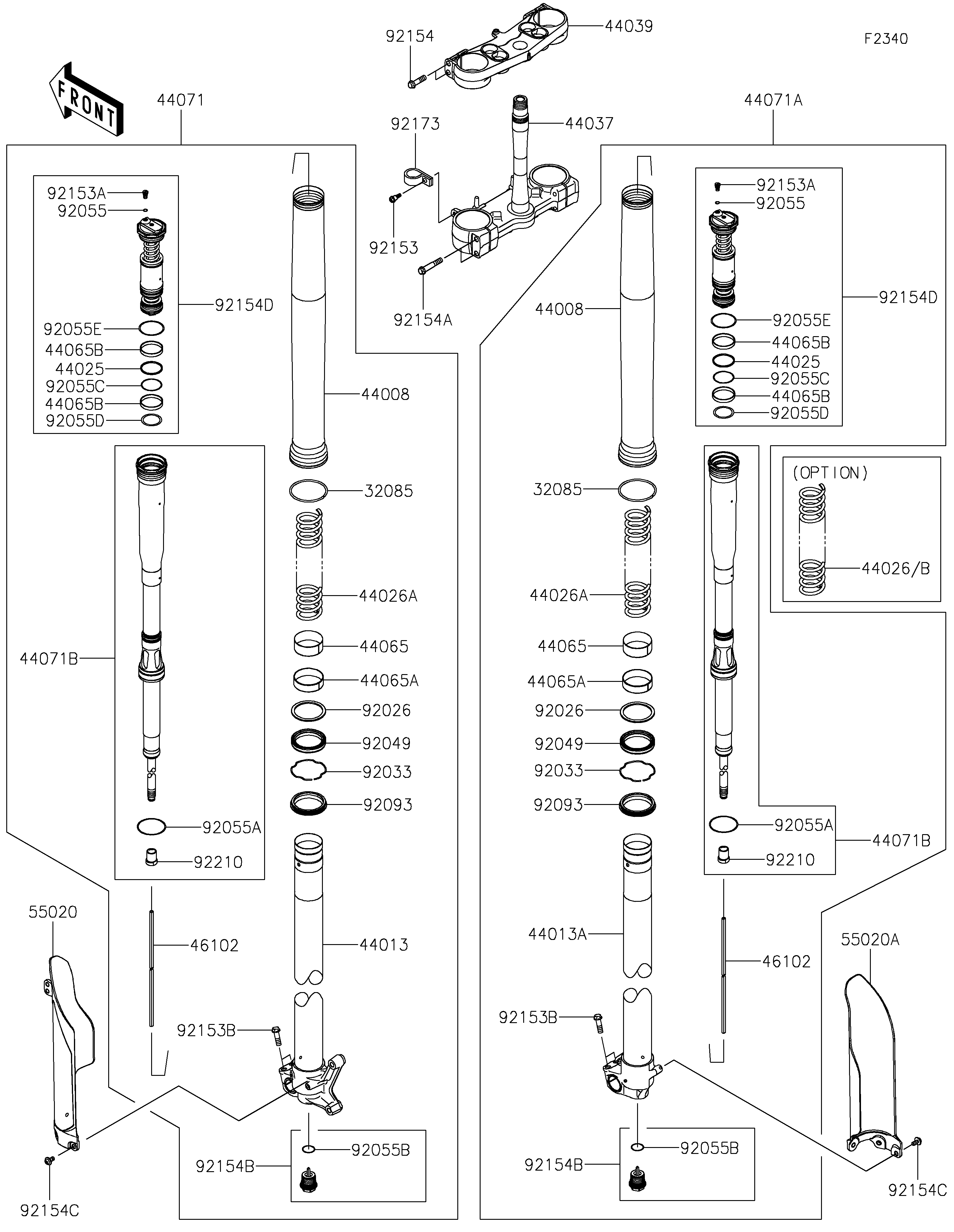

2021 KX™450 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
32085
32085
32085
32085
44008
44008
44008
44008
44013
44013
44013A
44013A
44025
44025
44025
44025
44026
44026
44026A
44026A
44026A
44026A
44026B
44026B
44037
44037
44039
44039
44065
44065
44065
44065
44065A
44065A
44065A
44065A
44065B
44065B
44065B
44065B
44065B
44065B
44065B
44065B
44071
44071
44071A
44071A
44071B
44071B
44071B
44071B
46102
46102
46102
46102
55020
55020
55020A
55020A
92026
92026
92026
92026
92033
92033
92033
92033
92049
92049
92049
92049
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92055B
92055B
92055B
92055B
92055C
92055C
92055C
92055C
92055D
92055D
92055D
92055D
92055E
92055E
92055E
92055E
92093
92093
92093
92093
92153
92153
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154C
92154C
92154D
92154D
92154D
92154D
92173
92173
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STOPPER,RING 32085 32085-0773 2
PIPE-FORK OUTER 44008 44008-0086 2
PIPE-FORK INNER,LH 44013 44013-0331 1
PIPE-FORK INNER,RH 44013A 44013-0332 1
RING-FORK PISTON 44025 44025-0010 2
SPRING-FRONT FORK,K=4.8N/MM 44026 44026-0226 1 (OPTION)
SPRING-FRONT FORK,K=5.0N/MM 44026A 44026-0227 2
SPRING-FRONT FORK,K=5.2N/MM 44026B 44026-0228 1 (OPTION)
HOLDER-FORK UNDER,F.BLACK 44037 44037-0181-21 1
HOLDER-FORK UPPER,F.BLACK 44039 44039-0161-21 1
BUSHING-FRONT FORK 44065 44065-0049 2
BUSHING-FRONT FORK 44065A 44065-0050 2
BUSHING-FRONT FORK 44065B 44065-0062 4
DAMPER-ASSY,FORK,LH,G.B.GREEN 44071 44071-1318-50Y 1
DAMPER-ASSY,FORK,RH,G.B.GREEN 44071A 44071-1319-50Y 1
DAMPER-ASSY,FORK 44071B 44071-1330 2
ROD 46102 46102-0637 2
GUARD,FORK,LH,EBONY 55020 55020-2231-6C 1
GUARD,FORK,RH,EBONY 55020A 55020-2232-6C 1
SPACER,SEAL 92026 92026-0785 2
RING-SNAP 92033 92033-0751 2
SEAL-OIL 92049 92049-0768 2
RING-O 92055 92055-0094 2
RING-O 92055A 92055-0744 2
RING-O 92055B 92055-0804 2
RING-O 92055C 92055-0805 2
RING-O 92055D 92055-0806 2
RING-O 92055E 92055-0807 2
SEAL 92093 92093-0657 2
BOLT,FLANGED 92153 92153-1397 1
BOLT,PLUG 92153A 92153-1398 2
BOLT,FLANGED,8X40 92153B 92153-1399 4
BOLT 92154 92154-0463 4
BOLT 92154A 92154-0464 4
BOLT,CNT 92154B 92154-2286 2
BOLT 92154C 92154-3776 6
BOLT,FORK,G.B.GREEN 92154D 92154-3811-50Y 2
CLAMP 92173 92173-1579 1
NUT,LOCK 92210 92210-0922 2
