Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

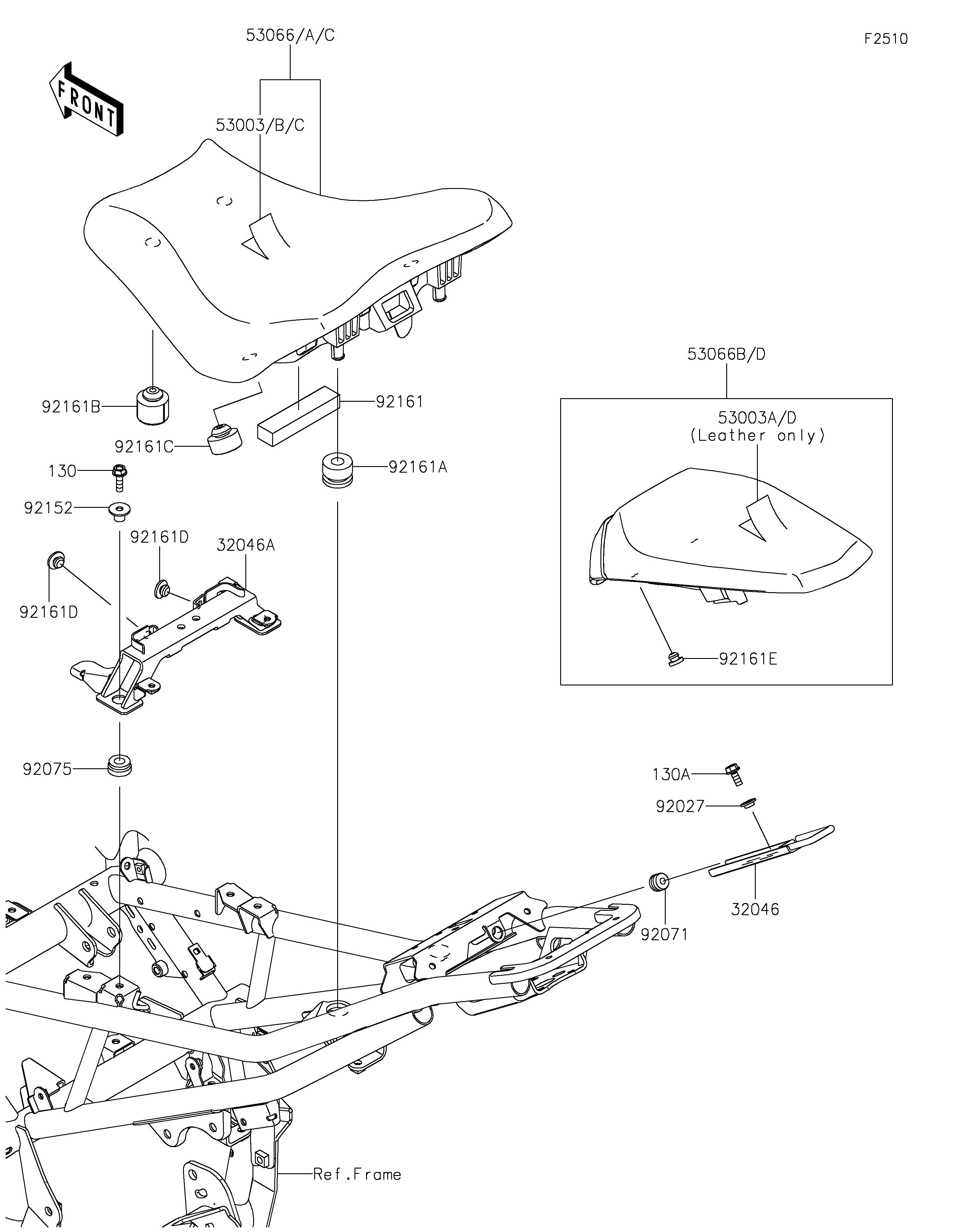

Parts Diagrams |
32046
32046A
53003
53003A
53066A
53066B
92027
92071
92075
92152
92161
92161A
92161B
92161C
92161D
92161D
92161E
130
130A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET-SEAT,FR LOCK | 32046 | 32046-0401 | 1 | ||
BRACKET-SEAT,FR | 32046A | 32046-0450 | 1 | ||
LEATHER,FR SEAT,BLACK | 53003 | 53003-0432-MA | 1 | CA,US | |
LEATHER,RR SEAT,BLACK | 53003A | 53003-0433-MA | 1 | ||
SEAT-ASSY,FR,BLACK | 53066A | 53066-0657-MA | 1 | CA,US | |
SEAT-ASSY,RR,BLACK+BLK | 53066B | 53066-0668-12Y | 1 | ||
COLLAR,L=4.6 | 92027 | 92027-1168 | 1 | ||
GROMMET | 92071 | 92071-0038 | 1 | ||
DAMPER | 92075 | 92075-277 | 2 | ||
COLLAR | 92152 | 92152-2616 | 2 | ||
DAMPER,20X90X15 | 92161 | 92161-1867 | 1 | ||
DAMPER,12X28X21 | 92161A | 92161-1913 | 2 | ||
DAMPER,14X30X22 | 92161B | 92161-1969 | 2 | ||
DAMPER,14X30X14.5 | 92161C | 92161-1970 | 2 | ||
DAMPER | 92161D | 92161-2250 | 2 | ||
DAMPER | 92161E | 92161-2308 | 2 | ||
BOLT-FLANGED,6X20 | 130 | 130BA0620 | 2 | ||
BOLT-FLANGED,6X14 | 130A | 130CA0614 | 1 |
