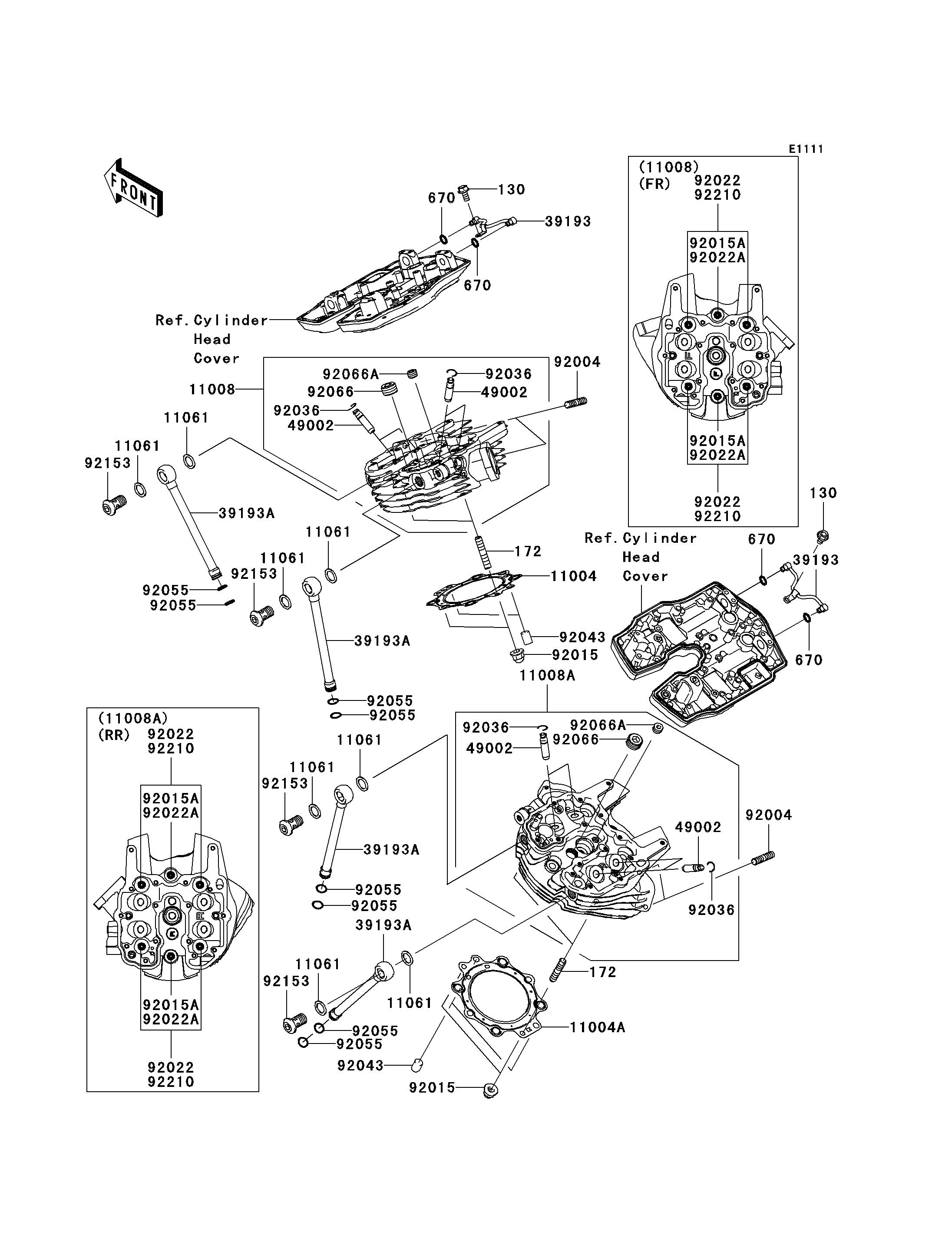

2008 Vulcan® 2000 Classic - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
130
130
172
172
670
670
670
670
11004
11004A
11008
11008A
11061
11061
11061
11061
11061
11061
11061
11061
39193
39193
39193A
39193A
39193A
39193A
49002
49002
49002
49002
92004
92004
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92036
92036
92036
92036
92043
92043
92055
92055
92055
92055
92055
92055
92055
92055
92066
92066
92066A
92066A
92153
92153
92153
92153
92210
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-STUD,8X25 172 172BA0825 4
O RING 670 670D1505 4
GASKET-HEAD,FR 11004 11004-0001 1
GASKET-HEAD,RR 11004A 11004-0002 1
HEAD-COMP-CYLINDER,FR 11008 11008-0032 1
HEAD-COMP-CYLINDER,RR 11008A 11008-0033 1
GASKET,OIL PIPE 11061 11061-0110 8
PIPE-OIL,ROCKER SHAFT 39193 39193-0019 2
PIPE-OIL,HEAD-CYLINDER 39193A 39193-0024 4
GUIDE-VALVE 49002 49002-0008 AR
STUD,8X22 92004 92004-0025 4
NUT,CAP,8MM 92015 92015-1370 4
NUT,FLANGED,10MM 92015A 92015-1727 4
WASHER,12.3X25X3.2 92022 92022-1293 8
WASHER,10.2X20X1.5 92022A 92022-3742 4
RING-SNAP,VALVE GUIDE 92036 92036-023 8
PIN,10X14 92043 92043-1506 4
RING-O,14.8X1.9 92055 92055-0005 8
PLUG,PT1/2X12.5 92066 92066-0002 2
PLUG,PT1/4X8.9 92066A 92066-1260 2
BOLT 92153 92153-0363 4
NUT,12MM 92210 92210-0115 8
