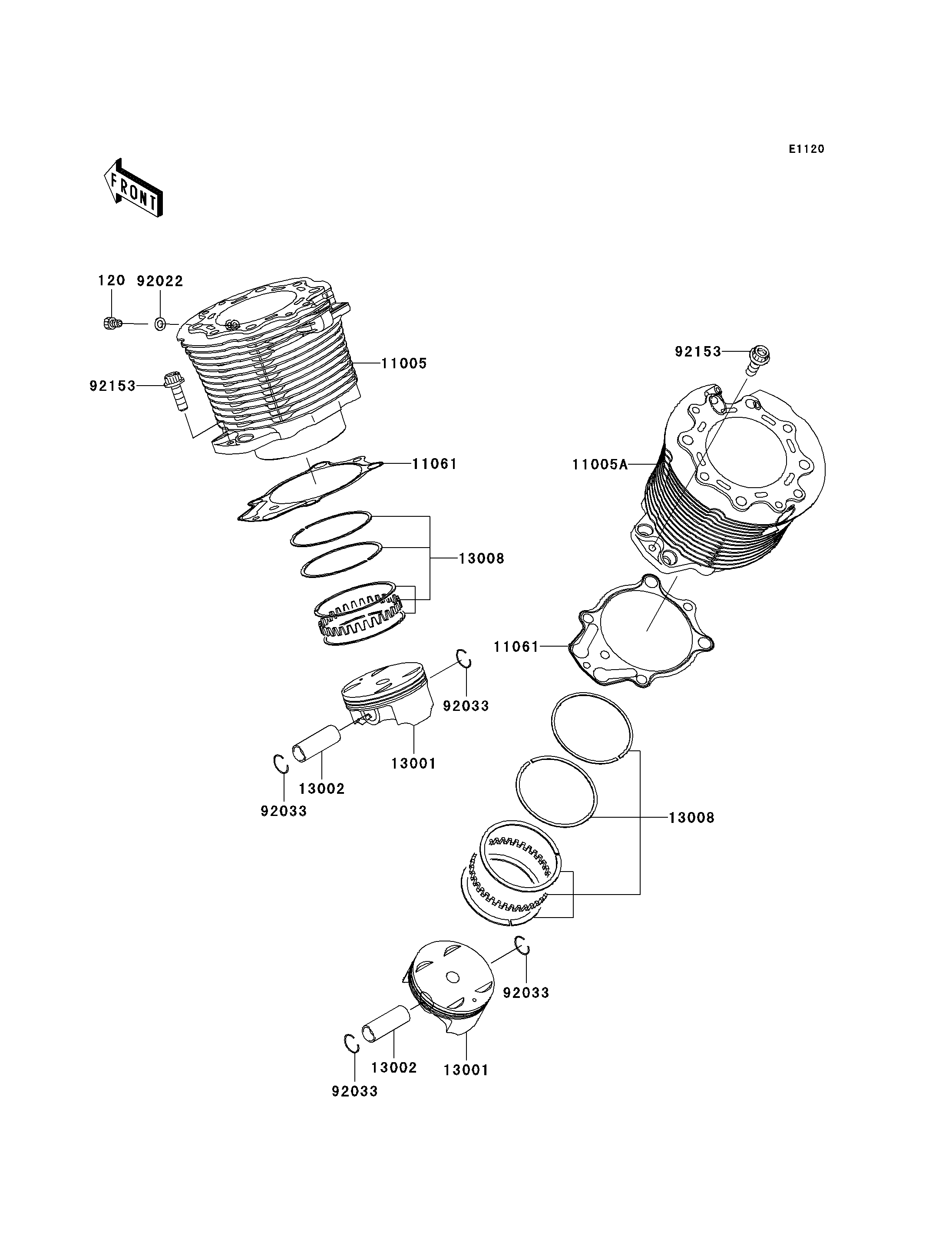

2008 Vulcan® 2000 Classic - Cylinder/Piston(s)
120
11005
11005A
11061
11061
13001
13001
13002
13002
13008
13008
92022
92033
92033
92033
92033
92153
92153
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X10 | 120 | 120R0610 | 1 | ||
CYLINDER-ENGINE,FR | 11005 | 11005-0040 | 1 | ||
CYLINDER-ENGINE,RR | 11005A | 11005-0041 | 1 | ||
GASKET,CYLINDER BASE | 11061 | 11061-0010 | 2 | ||
PISTON-ENGINE | 13001 | 13001-0003 | 2 | ||
PIN-PISTON | 13002 | 13002-0001 | 2 | ||
RING-SET-PISTON | 13008 | 13008-0001 | 2 | ||
WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
RING-SNAP | 92033 | 92033-3721 | 4 | ||
BOLT,8X25 | 92153 | 92153-0313 | 2 |
