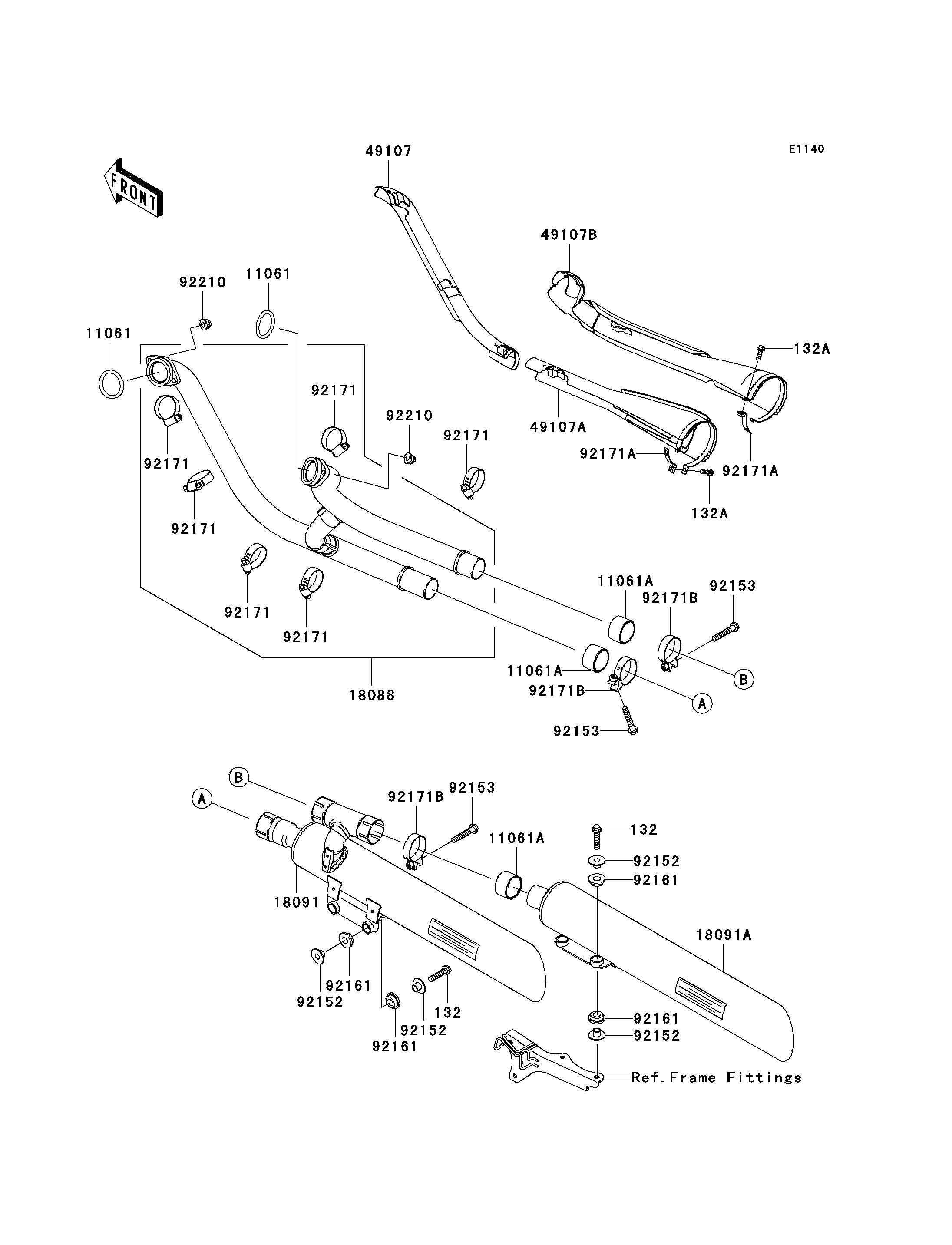

2008 Vulcan® 2000 Classic - Muffler(s)
132
132
132A
132A
11061
11061
11061A
11061A
11061A
18088
18091
18091A
49107
49107A
49107B
92152
92152
92152
92152
92153
92153
92153
92161
92161
92161
92161
92171
92171
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92171B
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,8X35 | 132 | 132BB0835 | 4 | ||
| BOLT-FLANGED-SMALL,6X20 | 132A | 132BC0620 | 2 | ||
| GASKET,EXHAUST PIPE | 11061 | 11061-0013 | 2 | ||
| GASKET,MUFFLER CONNECTING | 11061A | 11061-0240 | 3 | ||
| PIPE-EXHAUST | 18088 | 18088-0452 | 1 | ||
| BODY-COMP-MUFFLER,LWR | 18091 | 18091-0527 | 1 | ||
| BODY-COMP-MUFFLER,UPP | 18091A | 18091-0528 | 1 | ||
| COVER-EXHAUST PIPE,FR,FR | 49107 | 49107-0005 | 1 | ||
| COVER-EXHAUST PIPE,FR,RR | 49107A | 49107-0033 | 1 | ||
| COVER-EXHAUST PIPE,RR | 49107B | 49107-0048 | 1 | ||
| COLLAR,8.8X12X10.6 | 92152 | 92152-0082 | 8 | ||
| BOLT,8X45 | 92153 | 92153-0702 | 3 | ||
| DAMPER | 92161 | 92161-0135 | 8 | ||
| CLAMP | 92171 | 92171-0072 | 6 | ||
| CLAMP | 92171A | 92171-0294 | 2 | ||
| CLAMP | 92171B | 92171-0358 | 3 | ||
| NUT,CAP,8MM | 92210 | 92210-1132 | 4 |
