Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
120
120
11061
11061
12032
12032
12032
12032
13116
13116
13116
13116
14091
14091A
32154
32154
32154
32154
92033
92033
92033
92033
92055
92055
92055
92055
92055
92055
92055
92055
92055
92055
92055
92055
92055
92055
92055
92055

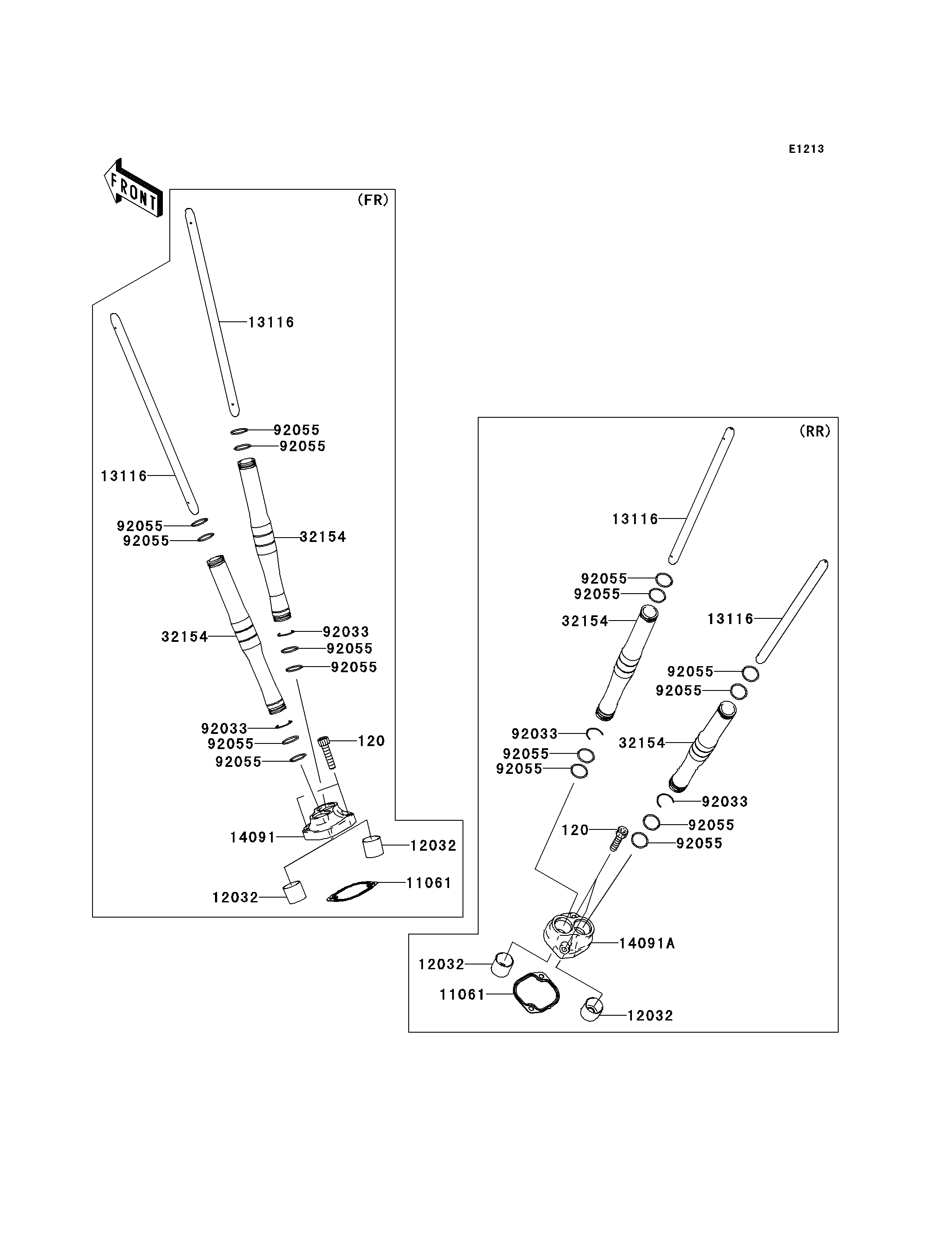

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X25 | 120 | 120R0625 | 4 | ||
| GASKET | 11061 | 11061-0014 | 2 | ||
| TAPPET | 12032 | 12032-0001 | 4 | ||
| ROD-PUSH | 13116 | 13116-0001 | 4 | ||
| COVER,PUSH ROD,FR | 14091 | 14091-0031 | 1 | ||
| COVER,PUSH ROD,RR | 14091A | 14091-0032 | 1 | ||
| PIPE,PUSH ROD | 32154 | 32154-0022 | 4 | ||
| RING-SNAP | 92033 | 92033-0024 | 4 | ||
| RING-O,19.8X1.9 | 92055 | 92055-1332 | 16 |
