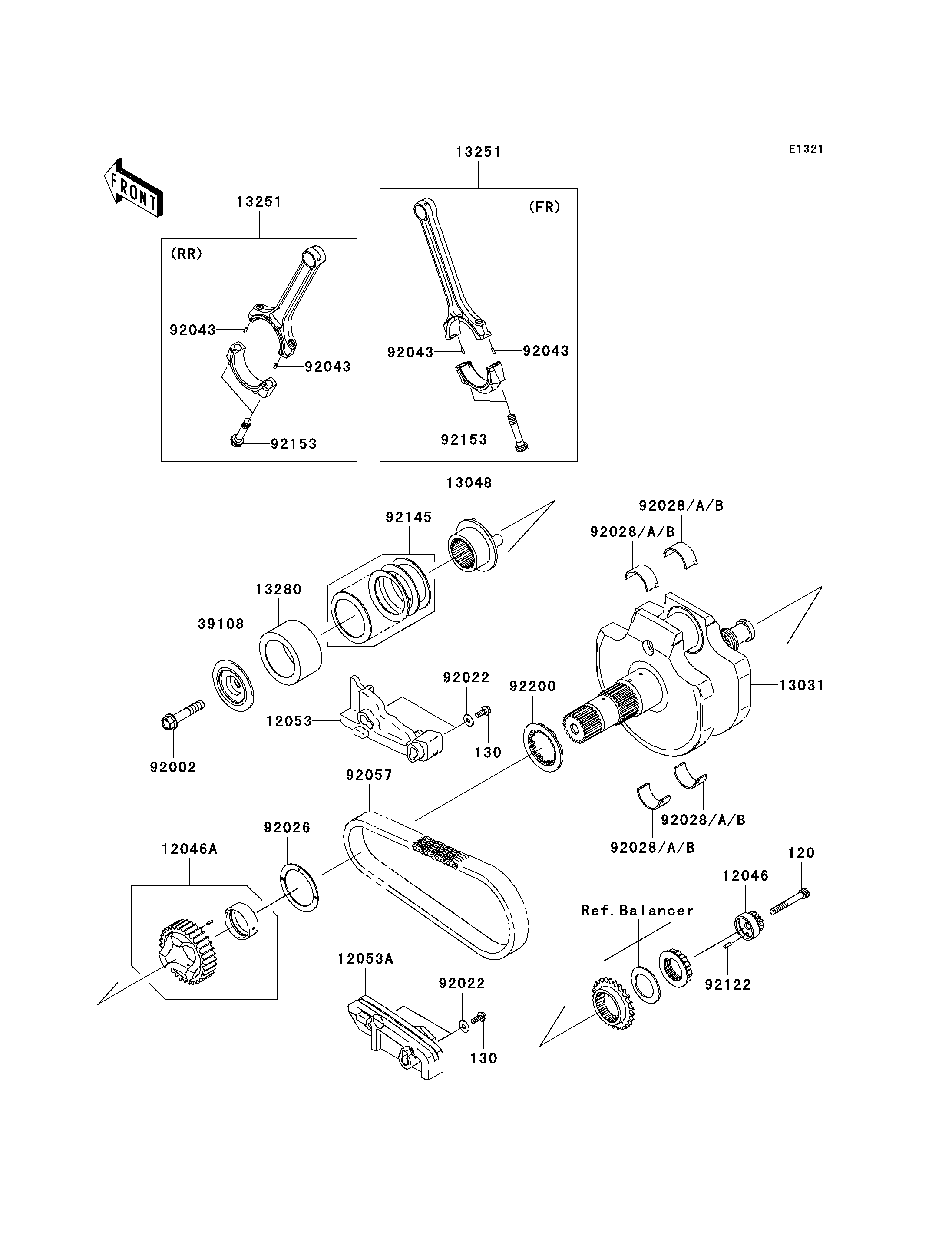

2008 Vulcan® 2000 Classic - Crankshaft
120
130
130
12046
12046A
12053
12053A
13031
13048
13251
13251
13280
39108
92002
92022
92022
92026
92028
92028
92028
92028
92028A
92028A
92028A
92028A
92028B
92028B
92028B
92028B
92043
92043
92043
92043
92057
92122
92145
92153
92153
92200
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,8X60 | 120 | 120Q0860 | 1 | ||
BOLT-FLANGED,6X16 | 130 | 130CA0616 | 4 | ||
SPROCKET,CAM | 12046 | 12046-0005 | 1 | ||
SPROCKET | 12046A | 12046-0022 | 1 | ||
GUIDE-CHAIN,UPP | 12053 | 12053-0026 | 1 | ||
GUIDE-CHAIN,LWR | 12053A | 12053-0037 | 1 | ||
CRANKSHAFT-COMP | 13031 | 13031-0031 | 1 | ||
CAM-DAMPER | 13048 | 13048-0001 | 1 | ||
ROD-ASSY-CONNECTING | 13251 | 13251-0001 | 2 | ||
HOLDER | 13280 | 13280-0027 | 1 | ||
RETAINER-SPRING | 39108 | 39108-0002 | 1 | ||
BOLT,FLANGED,12X60 | 92002 | 92002-1464 | 1 | ||
WASHER,6.2X18X1.2 | 92022 | 92022-1369 | 4 | ||
SPACER,57X74X1.97 | 92026 | 92026-0041 | 1 | ||
BUSHING,CONNECTING ROD,BLUE | 92028 | 92028-1474 | 4 | ||
BUSHING,CONNECTING ROD,BLACK | 92028A | 92028-1475 | AR | ||
BUSHING,CONNECTING ROD,BROWN | 92028B | 92028-1476 | AR | ||
PIN,3X8.5 | 92043 | 92043-0033 | 4 | ||
CHAIN,89HV304CF-88 | 92057 | 92057-0027 | 1 | ||
ROLLER,4X9.8 | 92122 | 92122-1197 | 1 | ||
SPRING | 92145 | 92145-0031 | 1 | ||
BOLT,CONNECTING ROD | 92153 | 92153-0314 | 4 | ||
WASHER | 92200 | 92200-0013 | 1 |
BOLT-SOCKET,8X60 | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X16 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPROCKET,CAM | |
REF # | 12046 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPROCKET | |
REF # | 12046A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,UPP | |
REF # | 12053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GUIDE-CHAIN,LWR | |
REF # | 12053A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CRANKSHAFT-COMP | |
REF # | 13031 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAM-DAMPER | |
REF # | 13048 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-ASSY-CONNECTING | |
REF # | 13251 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOLDER | |
REF # | 13280 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RETAINER-SPRING | |
REF # | 39108 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,12X60 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.2X18X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPACER,57X74X1.97 | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSHING,CONNECTING ROD,BLUE | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BUSHING,CONNECTING ROD,BLACK | |
REF # | 92028A |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
BUSHING,CONNECTING ROD,BROWN | |
REF # | 92028B |
---|---|
PART NUMBER | |
QUANTITY | AR |
DESTINATION | |
REMARKS |
PIN,3X8.5 | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CHAIN,89HV304CF-88 | |
REF # | 92057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROLLER,4X9.8 | |
REF # | 92122 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,CONNECTING ROD | |
REF # | 92153 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 92200 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
