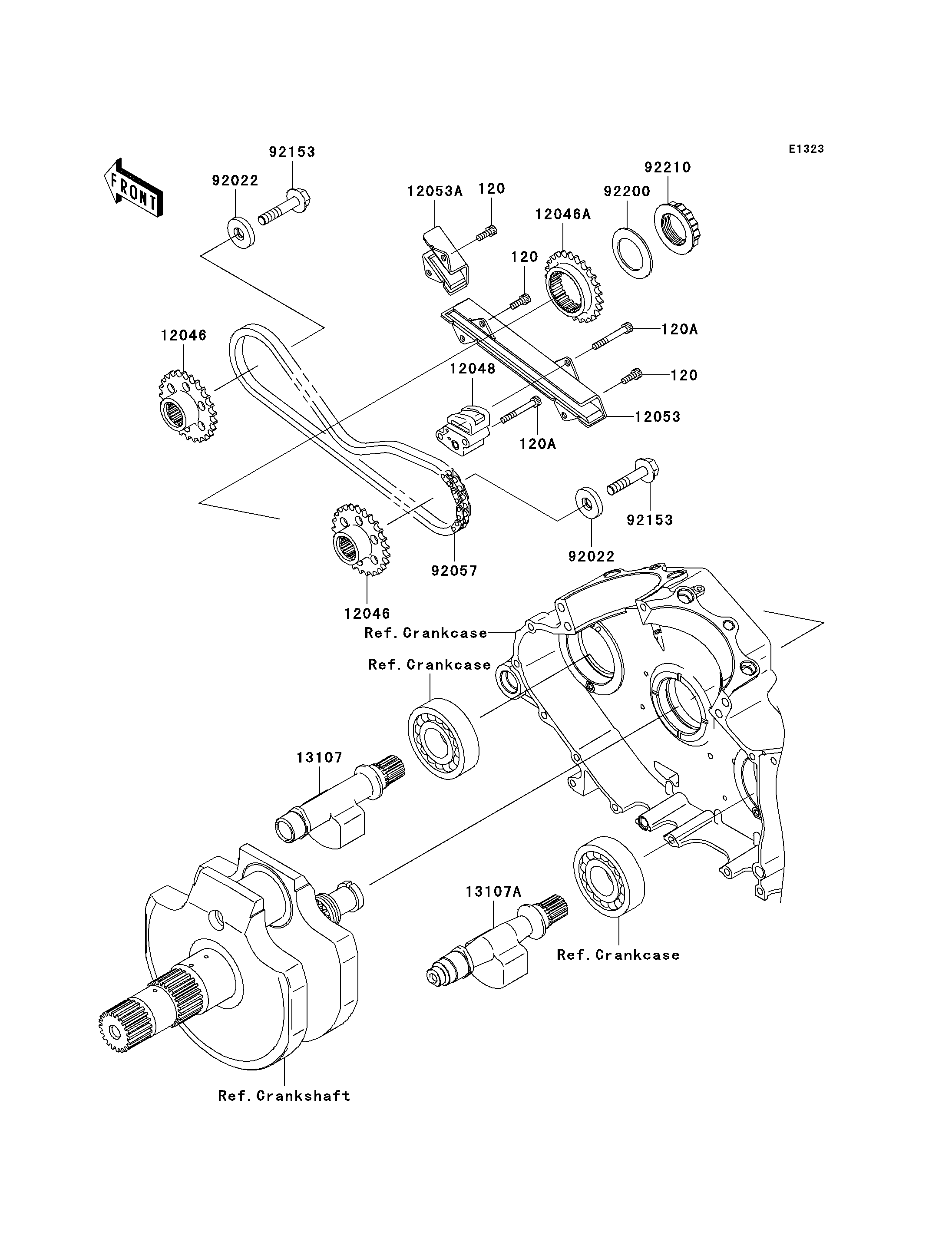

2008 Vulcan® 2000 Classic - Balancer

DOWNLOAD PDF
SELECT A NEW PART
120
120
120
120A
120A
12046
12046
12046A
12048
12053
12053A
13107
13107A
92022
92022
92057
92153
92153
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X16 120 120CA0616 5
BOLT-SOCKET,6X45 120A 120CA0645 2
SPROCKET,FR&RR 12046 12046-0007 2
SPROCKET 12046A 12046-0008 1
TENSIONER-ASSY 12048 12048-0005 1
GUIDE-CHAIN,LONG 12053 12053-0003 1
GUIDE-CHAIN,SHORT 12053A 12053-0004 1
SHAFT,FR 13107 13107-0004 1
SHAFT,RR 13107A 13107-0005 1
WASHER,10X33X6 92022 92022-1906 2
CHAIN,DID 06HF-SDH 92057 92057-0152 1
BOLT,10X50 92153 92153-0317 2
WASHER,36.5X56X3.2 92200 92200-0014 1
NUT,36MM 92210 92210-0059 1
