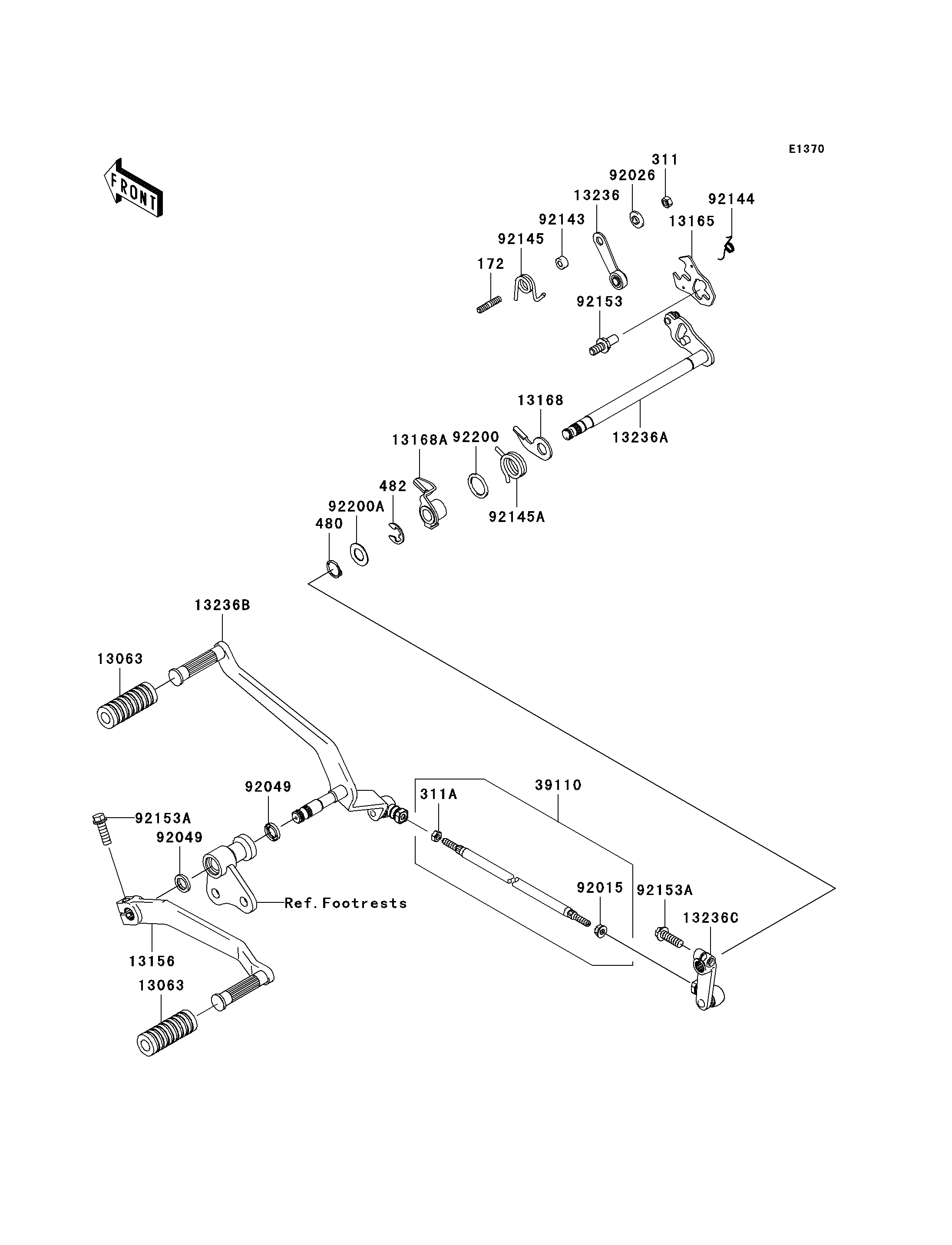

2006 Vulcan 2000 Classic - Gear Change Mechanism
172
311
311A
480
482
13063
13063
13156
13165
13168
13168A
13236
13236A
13236B
13236C
39110
92015
92026
92049
92049
92143
92144
92145
92145A
92153
92153A
92153A
92200
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-STUD,6X18 | 172 | 172H0618 | 1 | ||
NUT-HEX,6MM | 311 | 311G0600 | 1 | ||
NUT-HEX | 311A | 311L0600 | 1 | ||
CIRCLIP-TYPE-C,12MM | 480 | 480J1200 | 1 | ||
CIRCLIP-TYPE-E,12MM | 482 | 482J0200 | 1 | ||
DAMPER,PEDAL | 13063 | 13063-002 | 2 | ||
LEVER-CHANGE | 13156 | 13156-0007 | 1 | ||
PAWL | 13165 | 13165-0001 | 1 | ||
LEVER,RH | 13168 | 13168-0009 | 1 | ||
LEVER,LH | 13168A | 13168-0010 | 1 | ||
LEVER-COMP,POSITION | 13236 | 13236-0059 | 1 | ||
LEVER-COMP | 13236A | 13236-0060 | 1 | ||
LEVER-COMP | 13236B | 13236-0071 | 1 | ||
LEVER-COMP | 13236C | 13236-0072 | 1 | ||
ROD-ASSY-TIE | 39110 | 39110-0018 | 1 | ||
NUT,LEFT HANDED,6MM | 92015 | 92015-1572 | 1 | ||
SPACER | 92026 | 92026-1217 | 1 | ||
SEAL-OIL,VB13193 | 92049 | 92049-1398 | 2 | ||
COLLAR | 92143 | 92143-1595 | 1 | ||
SPRING | 92144 | 92144-1029 | 1 | ||
SPRING | 92145 | 92145-0197 | 1 | ||
SPRING | 92145A | 92145-0205 | 1 | ||
BOLT,RETURN SPRING | 92153 | 92153-0421 | 1 | ||
BOLT,8X25 | 92153A | 92153-1268 | 2 | ||
WASHER,20.5X27X1.6 | 92200 | 92200-0018 | 1 | ||
WASHER,13.4X25X1.0 | 92200A | 92200-0045 | 1 |
