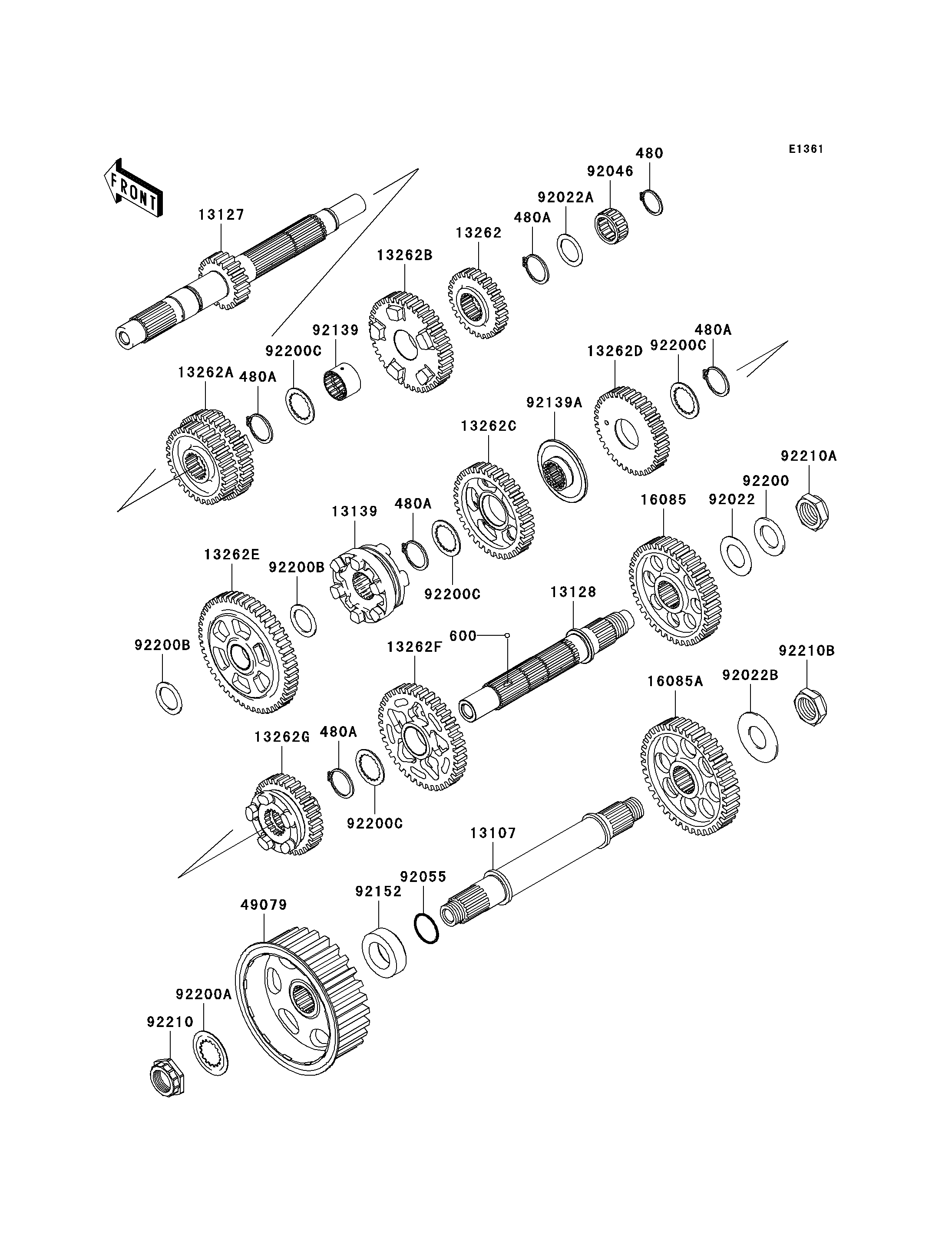

2008 Vulcan® 2000 Classic - Transmission
480
480A
480A
480A
480A
480A
600
13107
13127
13128
13139
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
16085
16085A
49079
92022
92022A
92022B
92046
92055
92139
92139A
92152
92200
92200A
92200B
92200B
92200C
92200C
92200C
92200C
92210
92210A
92210B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CIRCLIP-TYPE-C,25MM | 480 | 480J2500 | 1 | ||
CIRCLIP | 480A | 480J2900 | 5 | ||
BALL-STEEL,5/32" | 600 | 600A0500 | 3 | ||
SHAFT,PULLEY | 13107 | 13107-0108 | 1 | ||
SHAFT-TRANSMISSION INPUT | 13127 | 13127-0003 | 1 | ||
SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-0013 | 1 | ||
SHIFTER,OUTPUT | 13139 | 13139-0001 | 1 | ||
GEAR,INPUT 2ND,27T | 13262 | 13262-0004 | 1 | ||
GEAR,INPUT 3RD&4TH,32T&33T | 13262A | 13262-0005 | 1 | ||
GEAR,INPUT 5TH,37T | 13262B | 13262-0006 | 1 | ||
GEAR,OUTPUT 3RD,39T | 13262C | 13262-0008 | 1 | ||
GEAR,OUTPUT 4TH,31T | 13262D | 13262-0009 | 1 | ||
GEAR,OUTPUT LOW,51T | 13262E | 13262-0010 | 1 | ||
GEAR,OUTPUT 2ND,44T | 13262F | 13262-0011 | 1 | ||
GEAR,OUTPUT 5TH,27T | 13262G | 13262-0012 | 1 | ||
GEAR,TRANSFER,41T | 16085 | 16085-0004 | 1 | ||
GEAR,TRANSFER,50T | 16085A | 16085-0032 | 1 | ||
PULLEY-BELT | 49079 | 49079-0014 | 1 | ||
WASHER,25.3X44X1 | 92022 | 92022-1390 | 1 | ||
WASHER,25.5X36X1.0 | 92022A | 92022-1855 | 1 | ||
WASHER,25.3X56X2.0 | 92022B | 92022-1857 | 1 | ||
BEARING-NEEDLE,KT 253515E02 C3 | 92046 | 92046-0007 | 1 | ||
RING-O,29.7X2.4 | 92055 | 92055-0006 | 1 | ||
BUSHING | 92139 | 92139-0006 | 1 | ||
BUSHING,OUTPUT 3RD-4TH GEAR | 92139A | 92139-0007 | 1 | ||
COLLAR,30X50X16 | 92152 | 92152-0021 | 1 | ||
WASHER,25.5X42X2.6 | 92200 | 92200-0016 | 1 | ||
WASHER,31X50X1 | 92200A | 92200-0017 | 1 | ||
WASHER,25.5X36X1.6 | 92200B | 92200-0116 | 2 | ||
WASHER,30.3X40X1.5 | 92200C | 92200-1381 | 4 | ||
NUT,25MM | 92210 | 92210-0060 | 1 | ||
NUT,LEFT HANDED,25MM | 92210A | 92210-0136 | 1 | ||
NUT,25MM | 92210B | 92210-0138 | 1 |
