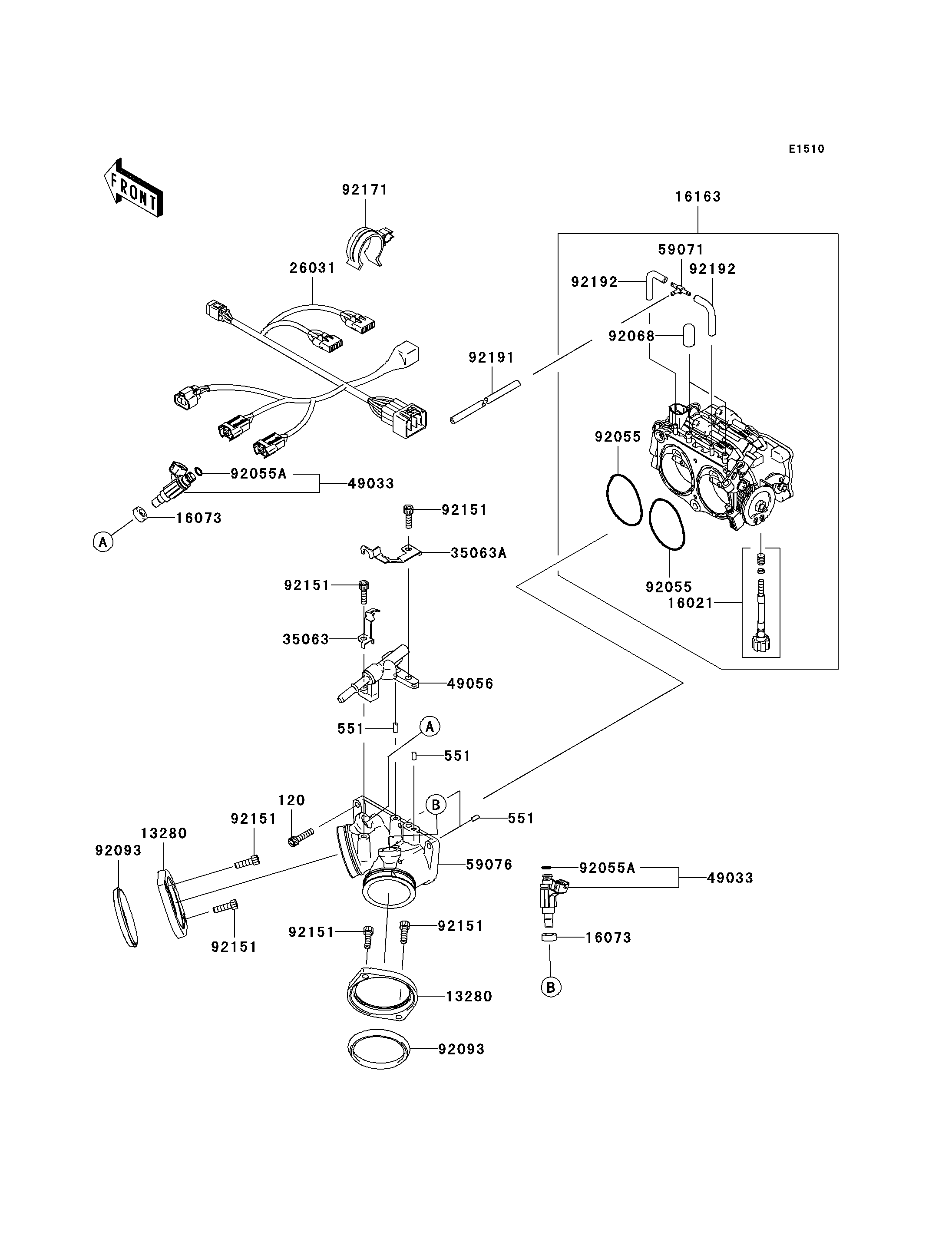

2006 Vulcan 2000 Classic - Throttle

DOWNLOAD PDF
SELECT A NEW PART
120
551
551
551
13280
13280
16021
16073
16073
16163
26031
35063
35063A
49033
49033
49056
59071
59076
92055
92055
92055A
92055A
92068
92093
92093
92151
92151
92151
92151
92151
92151
92171
92191
92192
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X25 120 120W0625 3
PIN-DOWEL 551 551R0408 4
HOLDER,INTAKE MANIFOLD 13280 13280-0007 2
SCREW-THROTTLE STOP 16021 16021-0006 1
INSULATOR 16073 16073-3707 2
THROTTLE-ASSY 16163 16163-0001 1
HARNESS 26031 26031-0179 1
STAY 35063 35063-0075 1
STAY 35063A 35063-0076 1
NOZZLE-INJECTION 49033 49033-0003 2
PIPE-INJECTION 49056 49056-0004 1
JOINT,3WAY,T 59071 59071-3752 1
MANIFOLD-INTAKE 59076 59076-0001 1
RING-O 92055 92055-0056 2
RING-O,INJECTION NOZZLE 92055A 92055-1622 2
PLUG,12X25 92068 92068-006 2
SEAL 92093 92093-0006 2
BOLT,SOCKET,6X20 92151 92151-3774 6
CLAMP 92171 92171-0130 1
TUBE,3X7X300 92191 92191-0032 1
TUBE 92192 92192-0106 2
