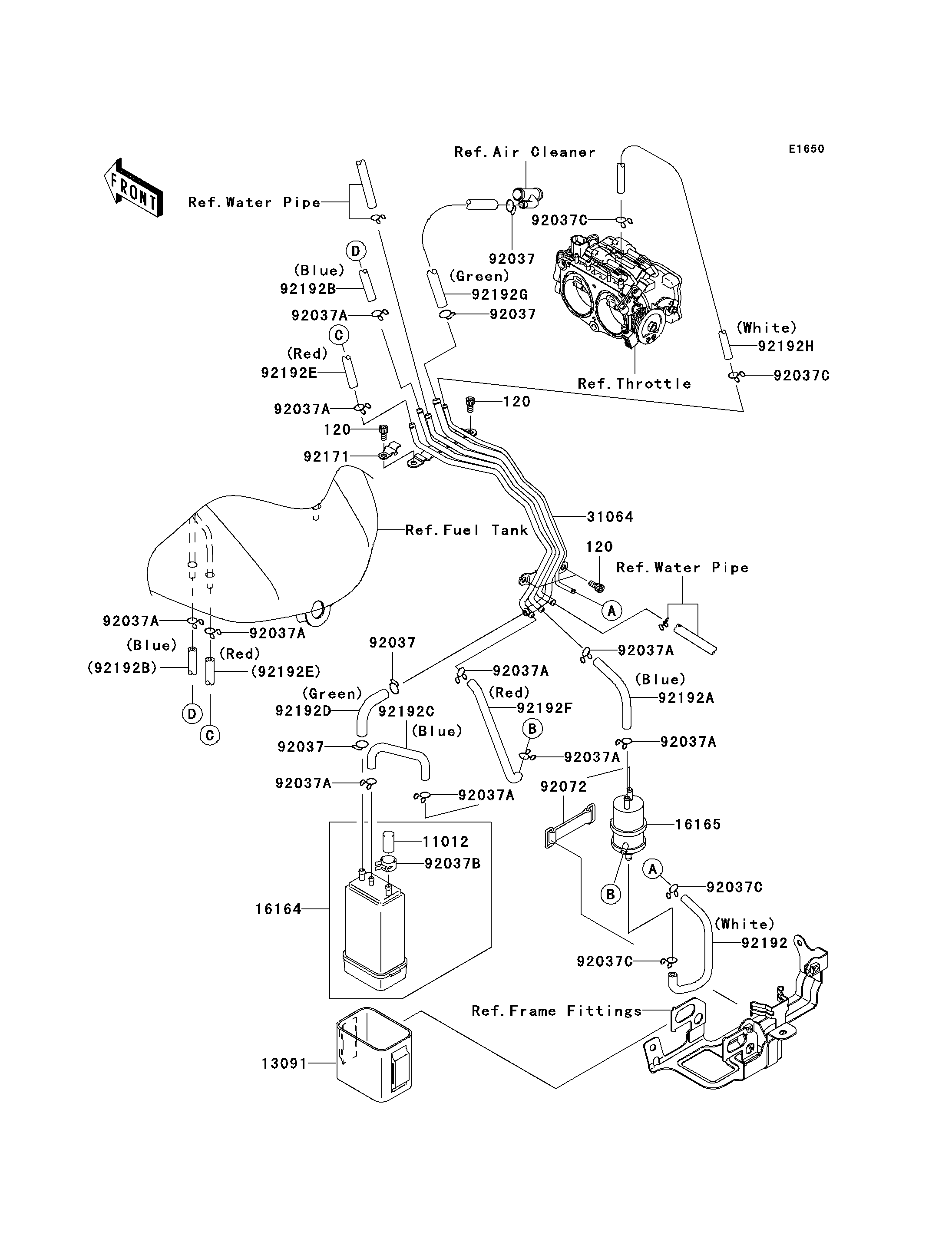

2006 Vulcan 2000 Classic - Fuel Evaporative System(CA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X12 | 120 | 120W0612 | 4 | CA | |
| CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
| HOLDER,CANISTER | 13091 | 13091-1308 | 1 | CA | |
| CANISTER | 16164 | 16164-1054 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| PIPE-COMP | 31064 | 31064-0010 | 1 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 4 | CA | |
| CLAMP,TUBE | 92037A | 92037-147 | 10 | CA | |
| CLAMP,CANISTER | 92037B | 92037-1512 | 1 | CA | |
| CLAMP | 92037C | 92037-1712 | 4 | CA | |
| BAND,L=50 | 92072 | 92072-1419 | 1 | CA | |
| CLAMP | 92171 | 92171-0209 | 1 | CA | |
| TUBE,SEPARATOR-PIPE,WHITE | 92192 | 92192-0013 | 1 | CA | |
| TUBE,SEPARATOR-PIPE,BLUE | 92192A | 92192-0014 | 1 | CA | |
| TUBE,BLUE | 92192B | 92192-0037 | 1 | CA | |
| TUBE,CANISTER-SEPARATOR,BLUE | 92192C | 92192-0061 | 1 | CA | |
| TUBE,CANISTER-PIPE,GREEN | 92192D | 92192-0107 | 1 | CA | |
| TUBE,TANK-PIPE,RED | 92192E | 92192-0112 | 1 | CA | |
| TUBE,SEPARATOR-PIPE,RED | 92192F | 92192-0113 | 1 | CA | |
| TUBE,7X12X430,GREEN | 92192G | 92192-0114 | 1 | CA | |
| TUBE,4X9X510,WHITE | 92192H | 92192-0121 | 1 | CA |
