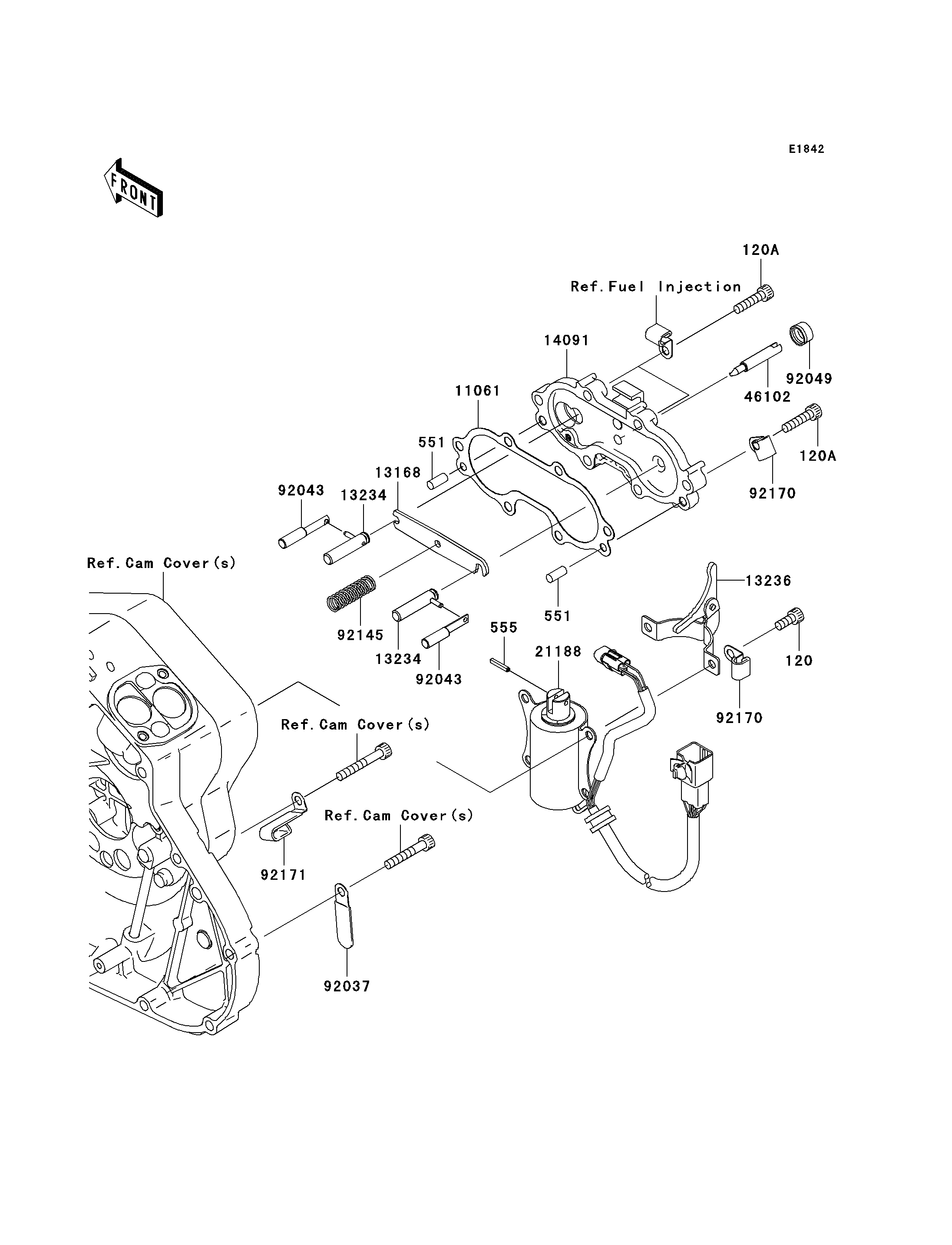

2006 Vulcan 2000 Classic - Starter Solenoid

DOWNLOAD PDF
SELECT A NEW PART
120
120A
120A
551
551
555
11061
13168
13234
13234
13236
14091
21188
46102
92037
92043
92043
92049
92145
92170
92170
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X14 120 120R0614 4
BOLT-SOCKET,6X25 120A 120R0625 6
PIN-DOWEL,6X14 551 551A0614 2
PIN-SPRING 555 555B0316 1
GASKET 11061 11061-0022 1
LEVER,JOINT 13168 13168-0011 1
SHAFT-COMP 13234 13234-0002 2
LEVER-COMP,SOLENOID 13236 13236-0008 1
COVER 14091 14091-0240 1
SOLENOID 21188 21188-0005 1
ROD,PUSH 46102 46102-0006 1
CLAMP,L=45 92037 92037-1539 1
PIN,DECOMP 92043 92043-0015 2
SEAL-OIL,RV37129.5 92049 92049-016 1
SPRING,DECOMP RELEASE 92145 92145-0037 1
CLAMP 92170 92170-1804 2
CLAMP 92171 92171-0322 1
