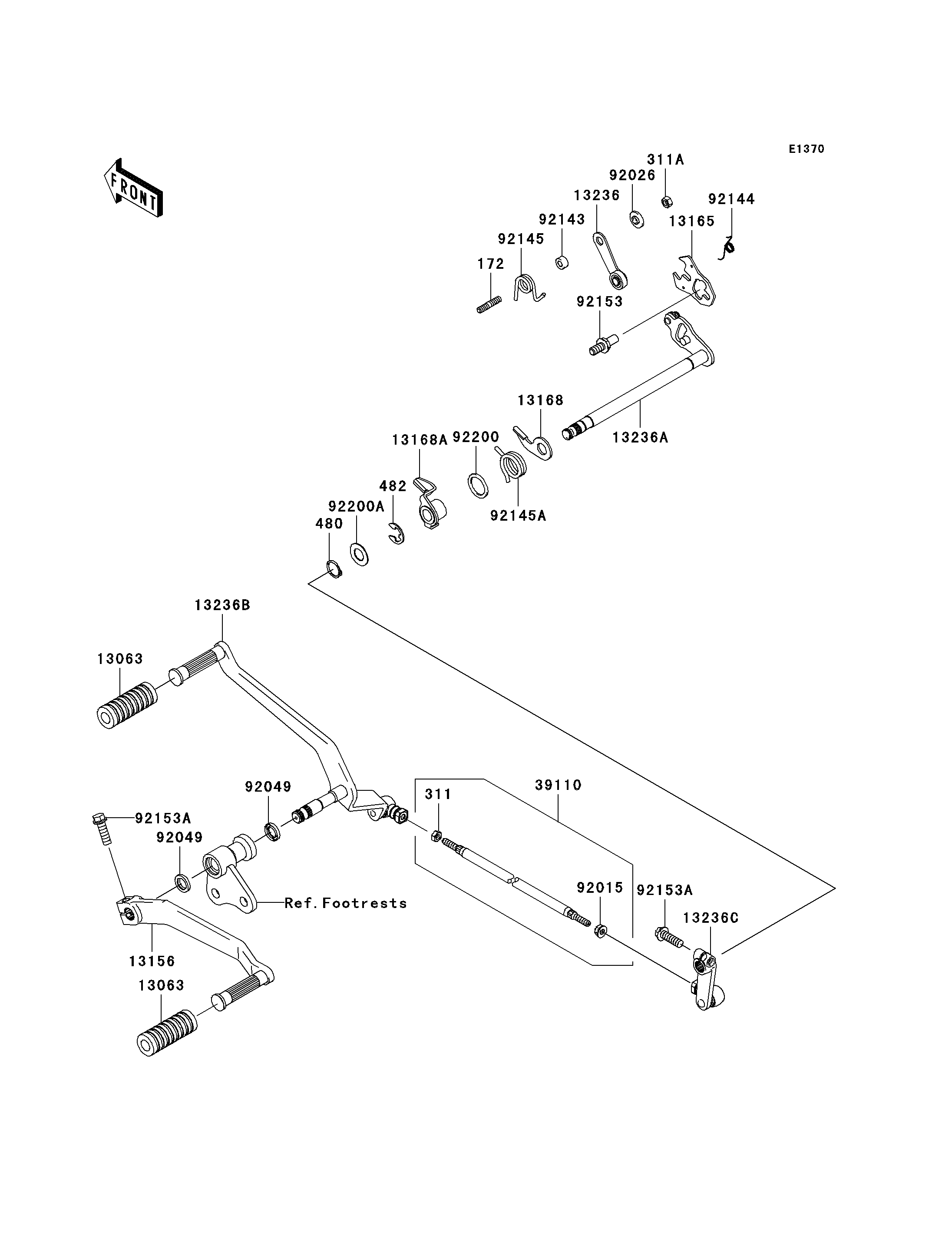

2008 Vulcan® 2000 Classic - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
172
311
311A
480
482
13063
13063
13156
13165
13168
13168A
13236
13236A
13236B
13236C
39110
92015
92026
92049
92049
92143
92144
92145
92145A
92153
92153A
92153A
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-STUD,6X18 172 172BA0618 1
NUT-HEX 311 311BA0600 1
NUT-HEX,6MM 311A 311BB0600 1
CIRCLIP-TYPE-C,12MM 480 480J1200 1
CIRCLIP-TYPE-E,12MM 482 482J0200 1
DAMPER,PEDAL 13063 13063-002 2
LEVER-CHANGE 13156 13156-0007 1
PAWL 13165 13165-0001 1
LEVER,RH 13168 13168-0009 1
LEVER,LH 13168A 13168-0010 1
LEVER-COMP,POSITION 13236 13236-0059 1
LEVER-COMP 13236A 13236-0060 1
LEVER-COMP 13236B 13236-0071 1
LEVER-COMP 13236C 13236-0072 1
ROD-ASSY-TIE 39110 39110-0018 1
NUT,LEFT HANDED,6MM 92015 92015-1572 1
SPACER 92026 92026-1217 1
SEAL-OIL,VB13193 92049 92049-1398 2
COLLAR 92143 92143-1595 1
SPRING 92144 92144-1029 1
SPRING 92145 92145-0197 1
SPRING 92145A 92145-0205 1
BOLT,RETURN SPRING 92153 92153-0421 1
BOLT,8X25 92153A 92153-1268 2
WASHER,20.5X27X1.6 92200 92200-0018 1
WASHER,13.4X25X1.0 92200A 92200-0045 1
