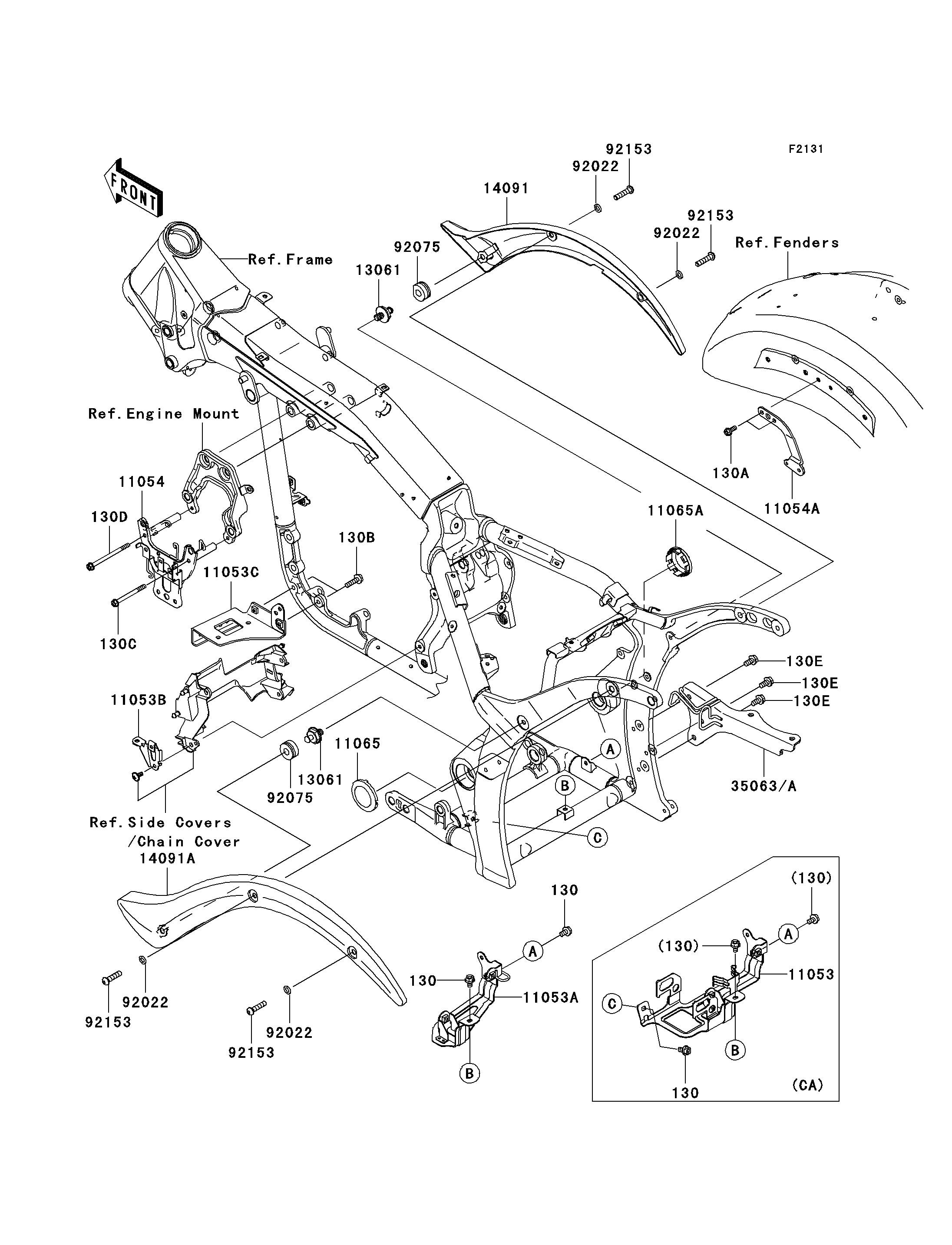

2007 Vulcan 2000 Classic - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130A
130B
130C
130D
130E
130E
130E
11053B
11053C
11054
11054A
11065
11065A
13061
13061
14091
14091A
35063A
92022
92022
92022
92022
92075
92075
92153
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130A 130L0616 2
BOLT-FLANGED,6X22 130B 130L0622 2
BOLT-FLANGED,6X70 130C 130L0670 1
BOLT-FLANGED,6X90 130D 130L0690 1
BOLT-FLANGED,8X16 130E 130L0816 3
BRACKET,FUSE&SENSOR 11053B 11053-0494 1
BRACKET,REGULATOR 11053C 11053-1625 1
BRACKET,IGNITION COIL 11054 11054-0100 1
BRACKET,HELMET HOLDER 11054A 11054-0401 1
CAP,PIVOT,LH 11065 11065-0052 1
CAP,PIVOT,RH 11065A 11065-0053 1
BOSS 13061 13061-0060 2
COVER,FENDER,RH 14091 14091-0255 1
COVER,FENDER,LH 14091A 14091-0594 1
STAY,MUFFLER 35063A 35063-0364 1
WASHER,PLAIN,8MM 92022 92022-3043 4
DAMPER 92075 92075-1986 2
BOLT,SOCKET,8X35 92153 92153-0419 4
BOLT-FLANGED,6X10 130 130L0610 2 US
BOLT-FLANGED,6X10 130 130L0610 3 CA
BRACKET,RESERVOIR 11053 11053-0312 1 CA
BRACKET,RESERVOIR 11053A 11053-0350 1 US
