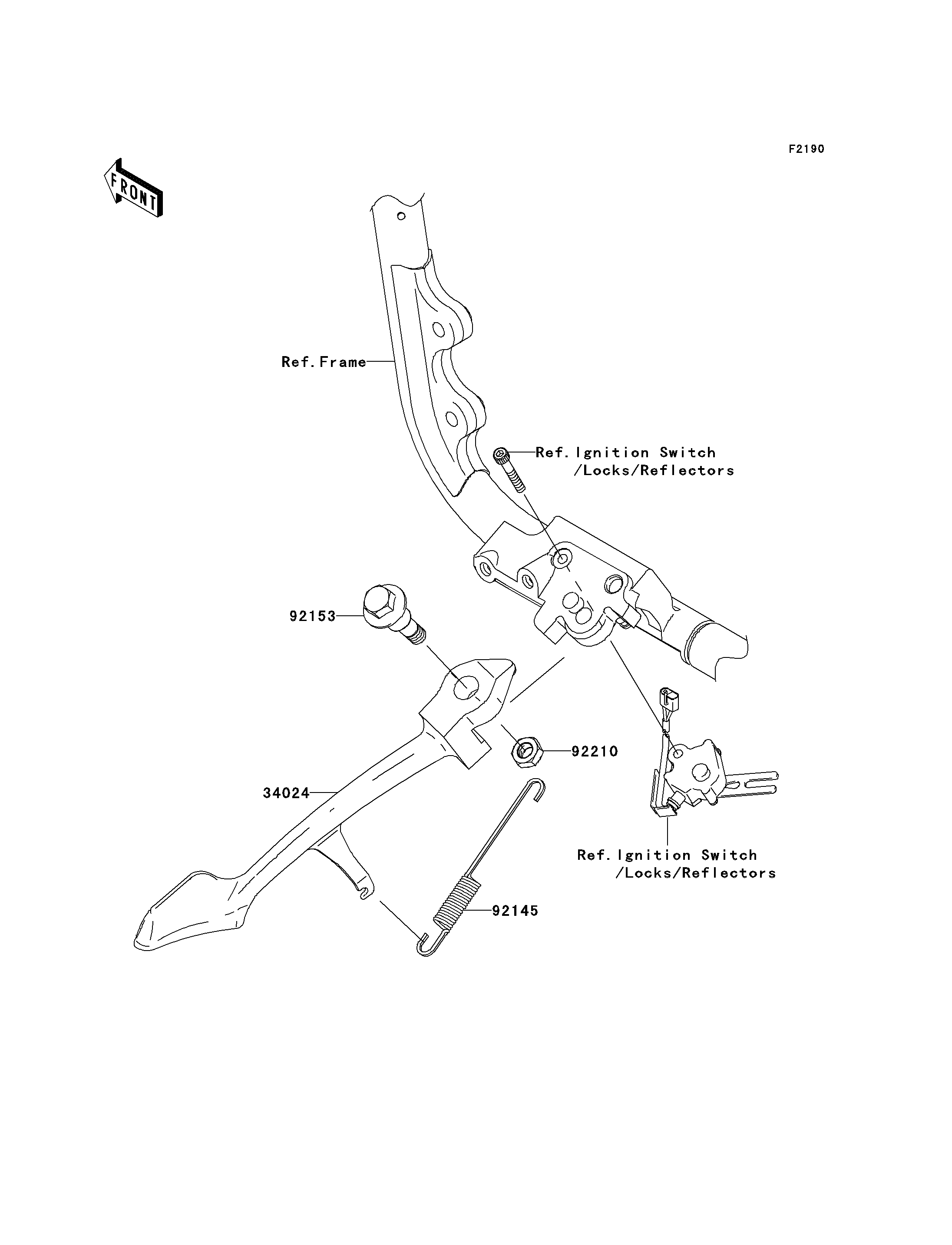

34024
92145
92153
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-SIDE 34024 34024-0023 1
SPRING,SIDE STAND 92145 92145-0190 1
BOLT,SIDE STAND 92153 92153-0928 1
NUT,LOCK,12MM 92210 92210-1249 1
