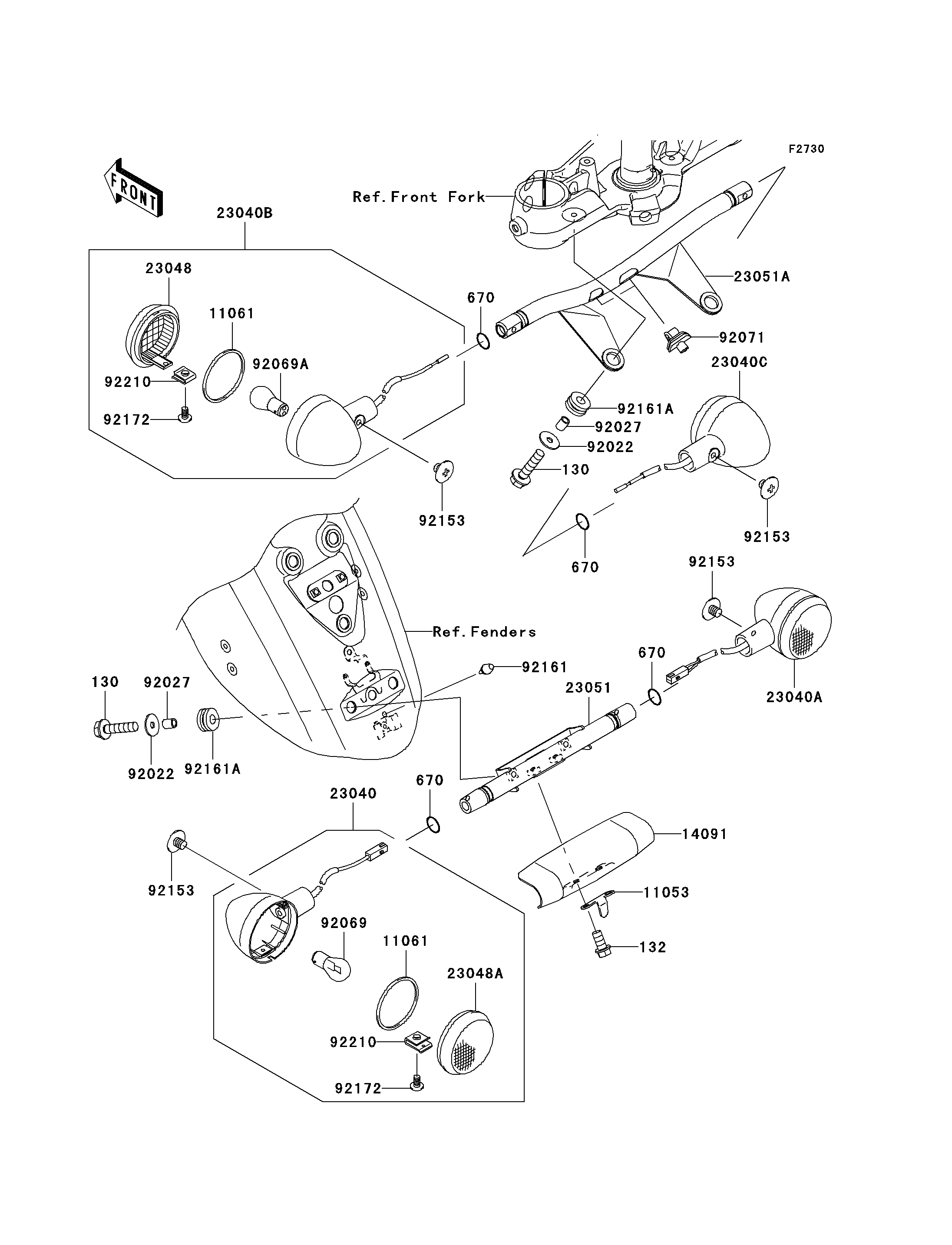

2006 Vulcan 2000 Classic - Turn Signals
130
130
132
670
670
670
670
11053
11061
11061
14091
23040
23040A
23040B
23040C
23048
23048A
23051
23051A
92022
92022
92027
92027
92069
92069A
92071
92153
92153
92153
92153
92161
92161A
92161A
92172
92172
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X25 | 130 | 130L0625 | 4 | ||
BOLT-FLANGED-SMALL,6X12 | 132 | 132J0612 | 2 | ||
O RING,16MM | 670 | 670B2016 | 4 | ||
BRACKET,REAR SIGNAL LAMP | 11053 | 11053-0929 | 1 | ||
GASKET,SIGNAL LAMP | 11061 | 11061-0005 | 4 | ||
COVER,REAR SIGNAL LAMP | 14091 | 14091-1572 | 1 | ||
LAMP-SIGNAL,RR,LH | 23040 | 23040-0036 | 1 | ||
LAMP-SIGNAL,RR,RH | 23040A | 23040-0037 | 1 | ||
LAMP-SIGNAL,FR,LH | 23040B | 23040-0061 | 1 | ||
LAMP-SIGNAL,FR,RH | 23040C | 23040-0062 | 1 | ||
LENS-SIGNAL LAMP | 23048 | 23048-0001 | 2 | ||
LENS-SIGNAL LAMP | 23048A | 23048-0002 | 2 | ||
BRACKET-SIGNAL LAMP,RR | 23051 | 23051-0002 | 1 | ||
BRACKET-SIGNAL LAMP,FR | 23051A | 23051-0014 | 1 | ||
WASHER,7X24X1.6 | 92022 | 92022-1160 | 4 | ||
COLLAR,6.8X10X12 | 92027 | 92027-162 | 4 | ||
BULB,12V 21W | 92069 | 2 | (LOCAL PROCUREMENT ITEM) | ||
BULB,12V 21/5W | 92069A | 92069-1084 | 2 | ||
GROMMET,SIGNAL LAMP | 92071 | 92071-0007 | 2 | ||
BOLT,6MM | 92153 | 92153-0396 | 4 | ||
DAMPER | 92161 | 92161-0091 | 1 | ||
DAMPER | 92161A | 92161-0163 | 4 | ||
SCREW,4X8 | 92172 | 92172-0146 | 4 | ||
NUT,4MM | 92210 | 92210-0155 | 4 |
