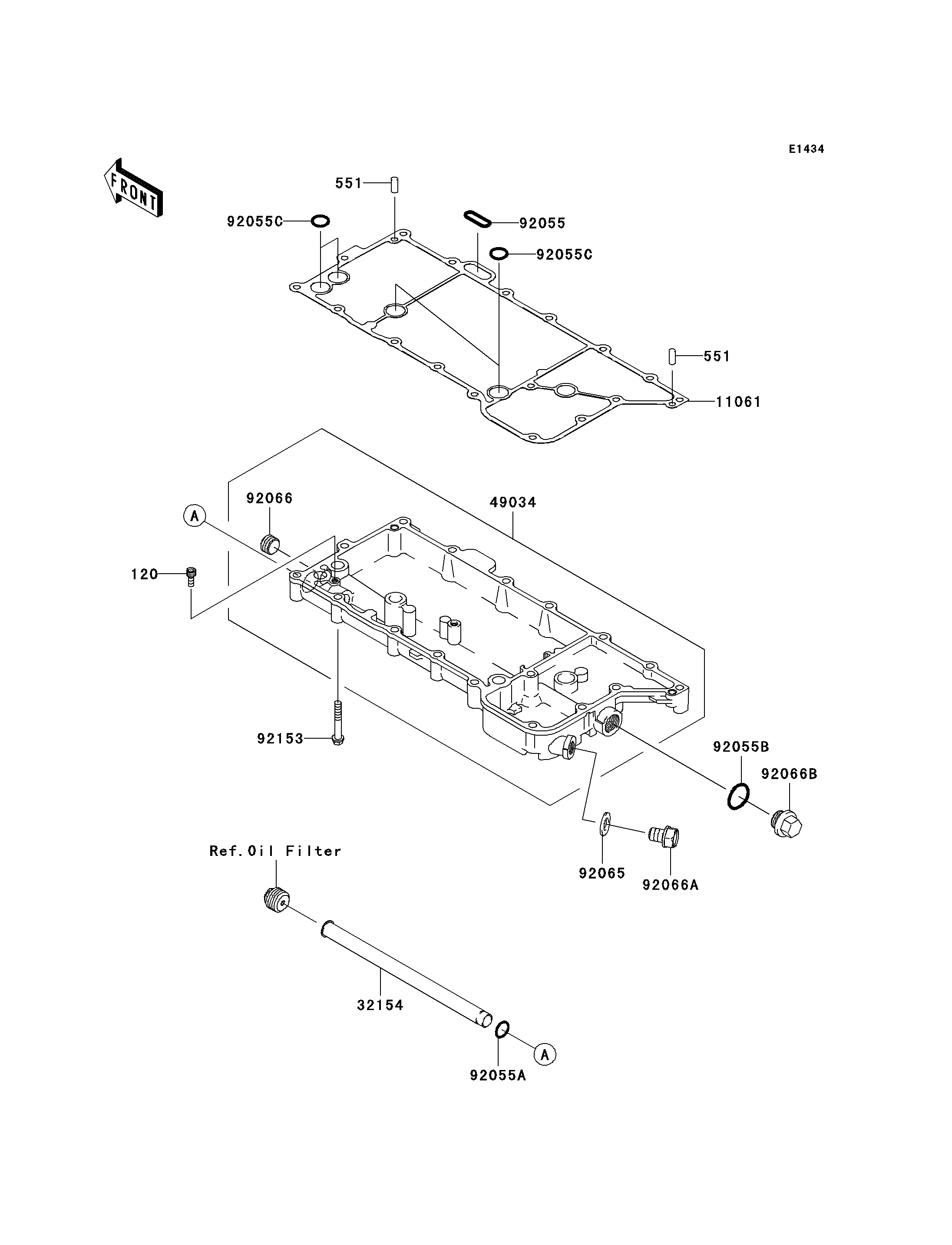

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120CB0512 1
PIN-DOWEL,6X14 551 551A0614 2
GASKET,OIL PAN 11061 11061-0021 1
PIPE 32154 32154-0065 1
PAN-OIL 49034 49034-0012 1
RING-O 92055 92055-0009 1
RING-O,ID=13.8 92055A 92055-1141 1
RING-O,20X2 92055B 92055-1146 1
RING-O,13.2X2.4 92055C 92055-1373 4
GASKET,12X22X2 92065 92065-097 1
PLUG 92066 92066-0042 1
PLUG,OIL DRAIN,12X15 92066A 92066-1174 1
PLUG,MAIN GALLERY,18X9 92066B 92066-1394 1
BOLT,6X40 92153 92153-0710 17
