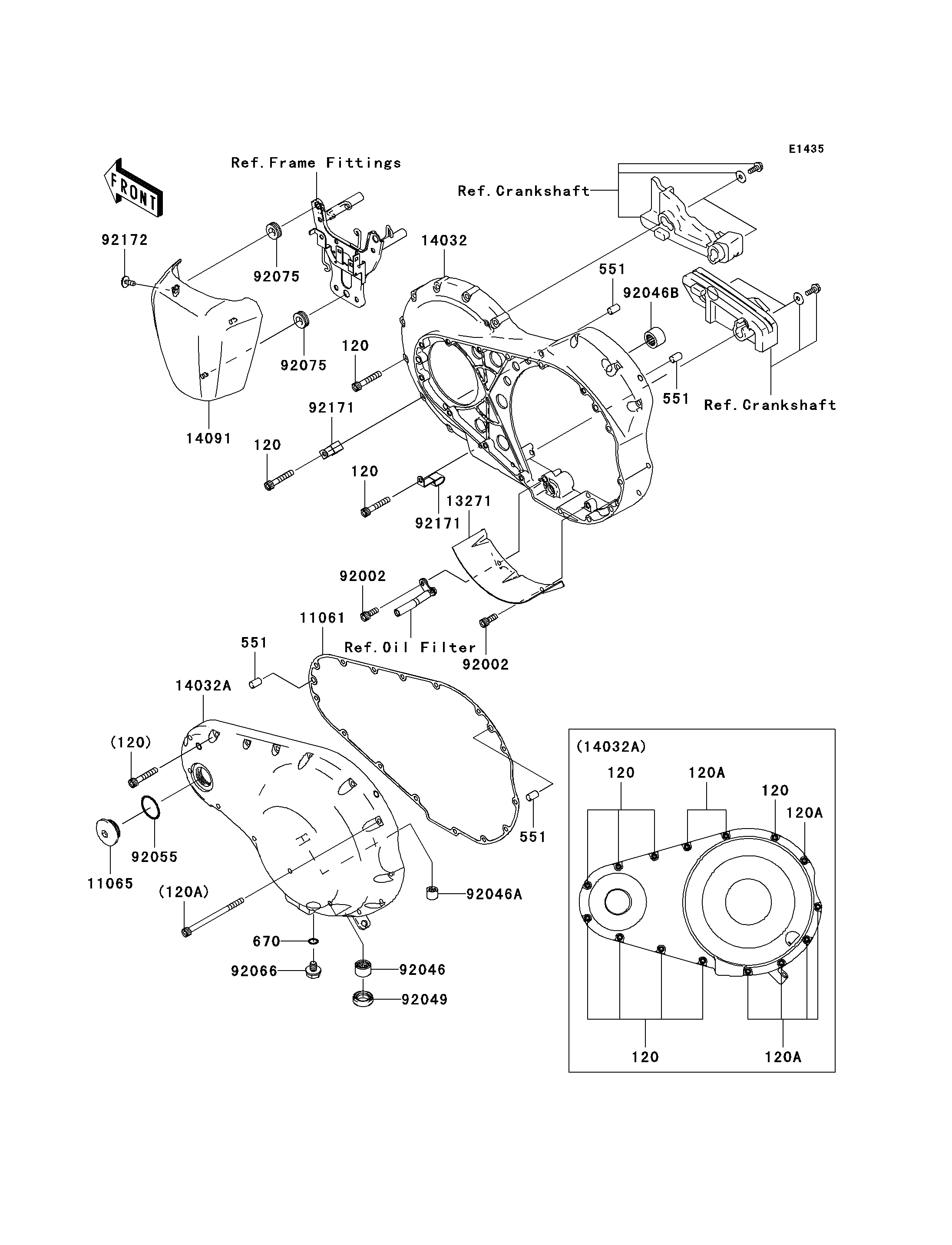

2008 Vulcan® 2000 Classic - Left Engine Cover(s)
120
120
120
120
120
120
120A
120A
120A
551
551
551
551
670
11061
11065
13271
14032
14032A
14091
92002
92002
92046
92046A
92046B
92049
92055
92066
92075
92075
92171
92171
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X35 | 120 | 120R0635 | 22 | ||
| BOLT-SOCKET,6X90 | 120A | 120R0690 | 7 | ||
| PIN-DOWEL,8X14 | 551 | 551A0814 | 4 | ||
| O RING,8MM | 670 | 670D1508 | 1 | ||
| GASKET,CLUTCH,OUTSIDE | 11061 | 11061-0016 | 1 | ||
| CAP | 11065 | 11065-0025 | 1 | ||
| PLATE | 13271 | 13271-0083 | 1 | ||
| COVER-CLUTCH,INNER | 14032 | 14032-0009 | 1 | ||
| COVER-CLUTCH,OUTER | 14032A | 14032-0073 | 1 | ||
| COVER | 14091 | 14091-0289 | 1 | ||
| BOLT,SOCKET,6X16 | 92002 | 92002-1778 | 2 | ||
| BEARING-NEEDLE,HK1210 | 92046 | 92046-1010 | 1 | ||
| BEARING-NEEDLE,HK0709 | 92046A | 92046-1142 | 1 | ||
| BEARING-NEEDLE,HK1212 | 92046B | 92046-1163 | 1 | ||
| SEAL-OIL,CLUTCH RELEASE | 92049 | 92049-1475 | 1 | ||
| RING-O,31.7X2.4 | 92055 | 92055-049 | 1 | ||
| PLUG,DRAIN,8X10 | 92066 | 92066-1026 | 1 | ||
| DAMPER | 92075 | 92075-1629 | 3 | ||
| CLAMP,SENSOR CODE | 92171 | 92171-0153 | 2 | ||
| SCREW,5X12 | 92172 | 92172-0101 | 1 |
