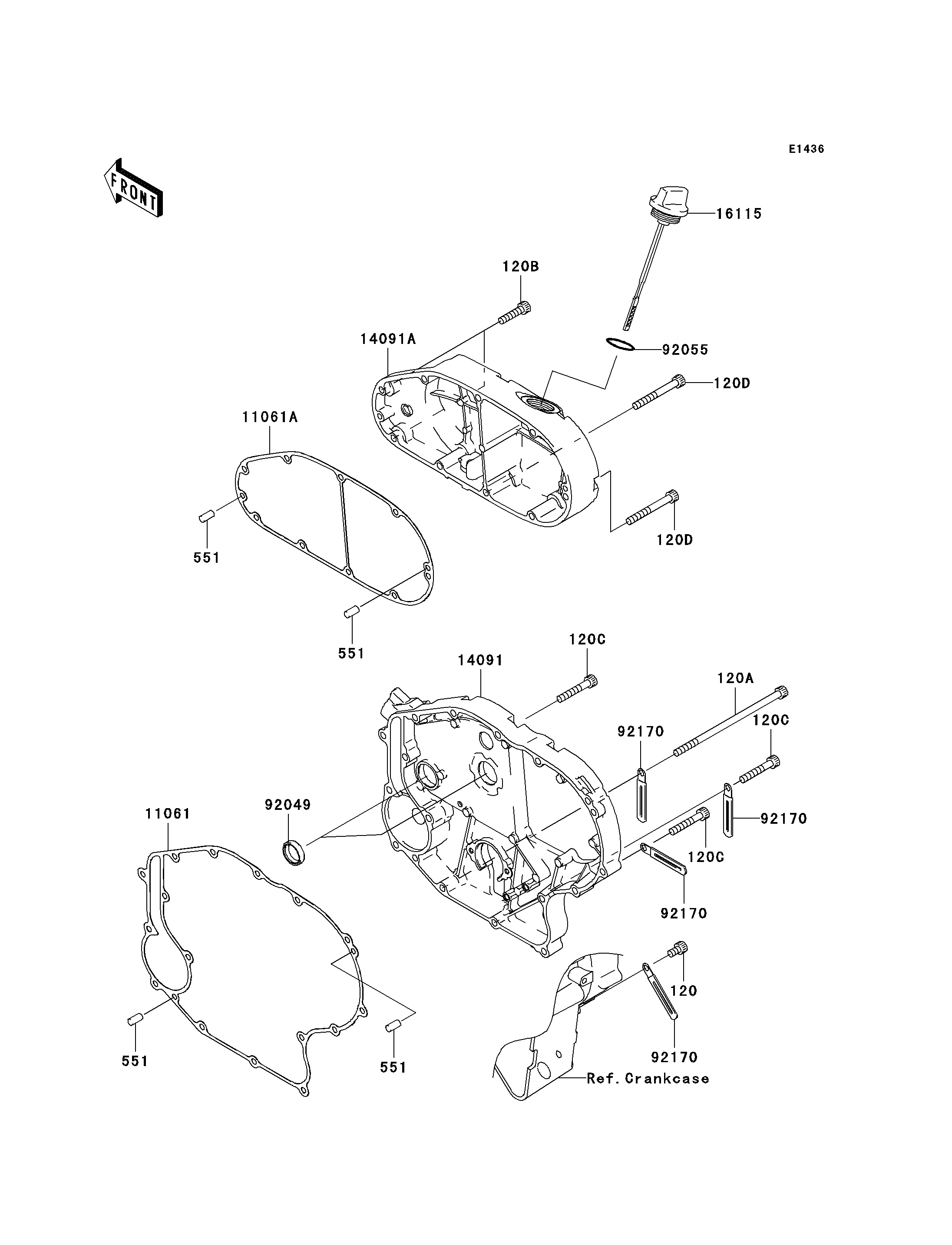

2008 Vulcan® 2000 Classic - Right Engine Cover(s)
120
120A
120B
120C
120C
120C
120D
120D
551
551
551
551
11061
11061A
14091
14091A
16115
92049
92055
92170
92170
92170
92170
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X10 | 120 | 120R0610 | 1 | ||
BOLT-SOCKET,6X125 | 120A | 120R06125 | 1 | ||
BOLT-SOCKET,6X25 | 120B | 120R0625 | 2 | ||
BOLT-SOCKET,6X35 | 120C | 120R0635 | 15 | ||
BOLT-SOCKET,6X50 | 120D | 120R0650 | 7 | ||
PIN-DOWEL,6X12 | 551 | 551A0612 | 4 | ||
GASKET,TRANSMISSION,INSIDE | 11061 | 11061-0017 | 1 | ||
GASKET,TRANSMISSION,OUTSIDE | 11061A | 11061-0018 | 1 | ||
COVER,TRANSMISSION,INSIDE | 14091 | 14091-0251 | 1 | ||
COVER,TRANSMISSION OUTSIDE | 14091A | 14091-0263 | 1 | ||
CAP-OIL FILLER | 16115 | 16115-0010 | 1 | ||
SEAL-OIL,20X26X6 | 92049 | 92049-0019 | 2 | ||
RING-O,31.7X2.4 | 92055 | 92055-049 | 1 | ||
CLAMP | 92170 | 92170-1514 | 4 |
